4. PLC WatchDog Operation
PNEG-1755 PLC WatchDog 21
Verify Password Button
Pressing the “Verify Password” button with a valid password entered will change the “Password Status”
indicator from “Inactive”,
Figure 4J on Page 19 , to “Active” as in Figure 4M .

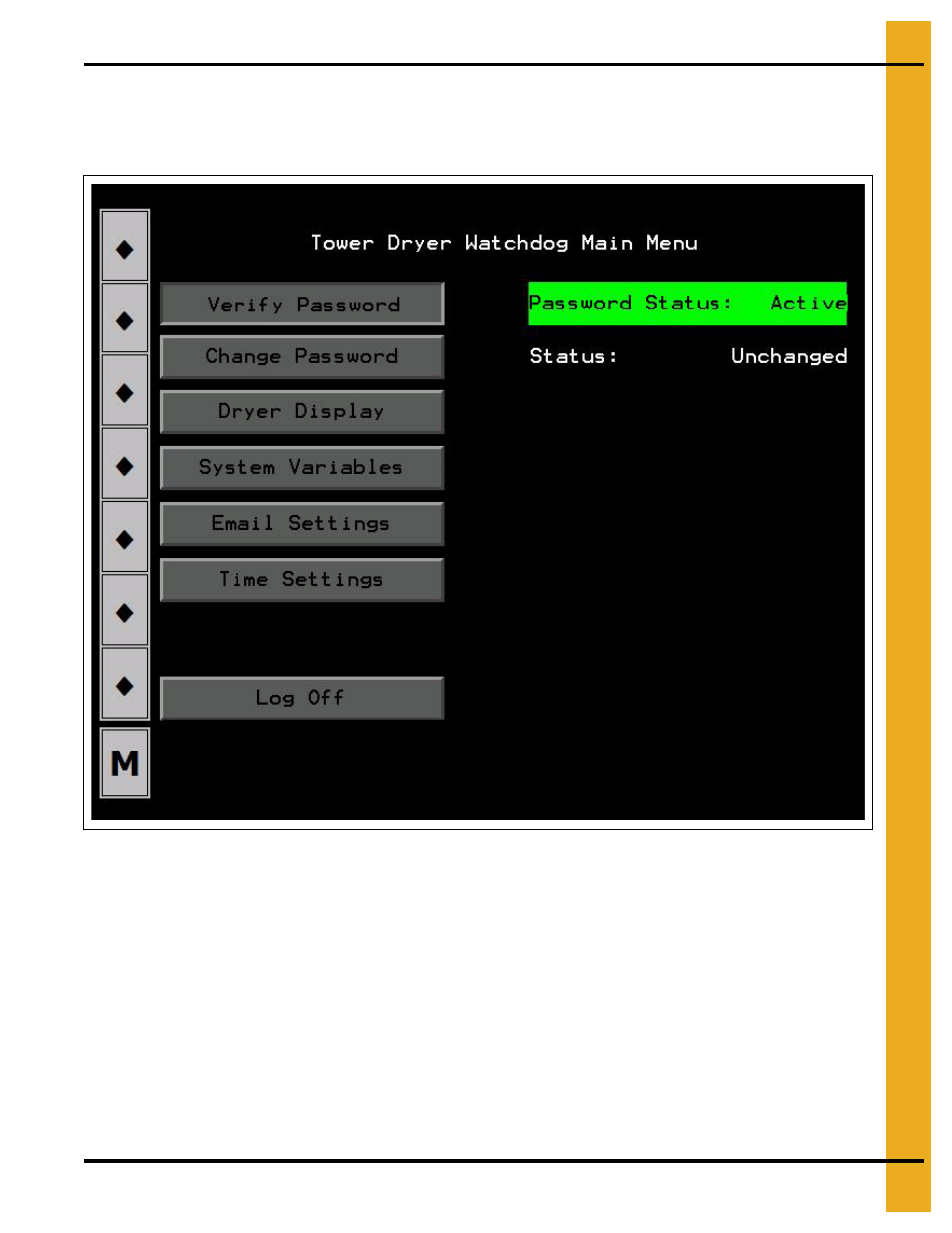

Figure 4M
Password Status Indicator
An “Active” status allows the user to access other areas of the “Remote View” program. The user may
edit variables in the “View Data” section of the interface prior to verifying the password, but the individual
settings will not be updated until a valid password is accepted and the settings are updated as
discussed below.
An “Inactive” status will not allow further use of the PLC WatchDog. The user must always use the
“Log Off” button before closing the web browser when using the PLC WatchDog application as
discussed below.
