4. PLC WatchDog Operation
PNEG-1755 PLC WatchDog 25
Main Menu Button
Pressing the “Main Menu” button will return the user back to the screen that is shown in Figure 4M
on Page 21 .
Log Off Button
Pressing the “Log Off” button changes the password status to inactive and will return the user back to the
screen that is shown in
Figure 4J on Page 19 .
System Variables Button
Password status must be active to enable this function.

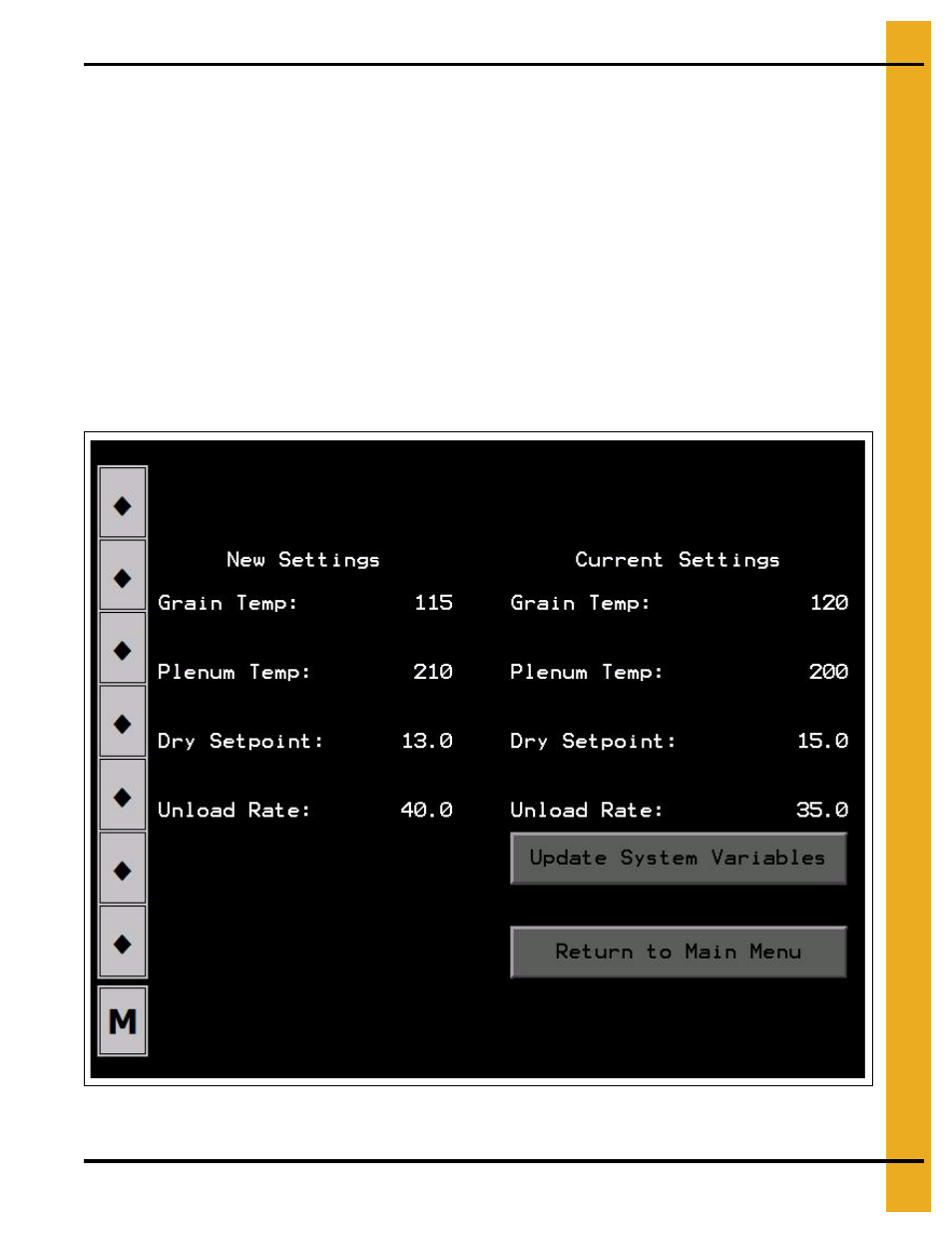

Pressing the “System Variables” button will bring up the screen that is shown in Figure 4Q . The “Current
Settings” title is shown on the right half of the screen. This is the current information that the system is
using for setpoints for the individual variables. The information that is listed under the “New Settings” title
is the user entered data from the “View Data - PLC WatchDog” web page.
Figure 4Q
