CAUTION: Do not use force

when working on plastic parts.

Permanent damage to the part

might result.

1.

Locate the Window Mount

assembly in your kit.

2.

assemble the Banks iQ docking

station to the Universal mount by

inserting and sliding the Universal

mount tab into the docking station

groove. Hand tighten the nut behind

the docking station to hold the docking

station in place.

3.

attach the window mount to your

Banks iQ. See Figure 20. align and

place the two (2) lower tabs on the

window mount to the corresponding

slots on the bottom of Banks iQ first

then snap the top of Banks iQ into

place.

NOTE: There may be a snug fit when

installing the Banks iQ into the window

mount. Take care not to force this

process.

4.

Find a smooth, flat surface suitable

for ease of access and viewing of

Banks iQ. Loosen the knob and move

the swivel suction plate to achieve

desired viewing angle of the Banks

iQ screen. Do a test fit and note the

angle necessary to achieve the correct

viewing angle.

5.

Make sure the suction cup and the

mounting area on the windshield are

clean and dry. With the suction lever

in the up position, ensure the suction

cup is flat against the windshield, and

then push the suction lever down to

secure in place.

Section 9

Mounting and Connecting the Banks iQ

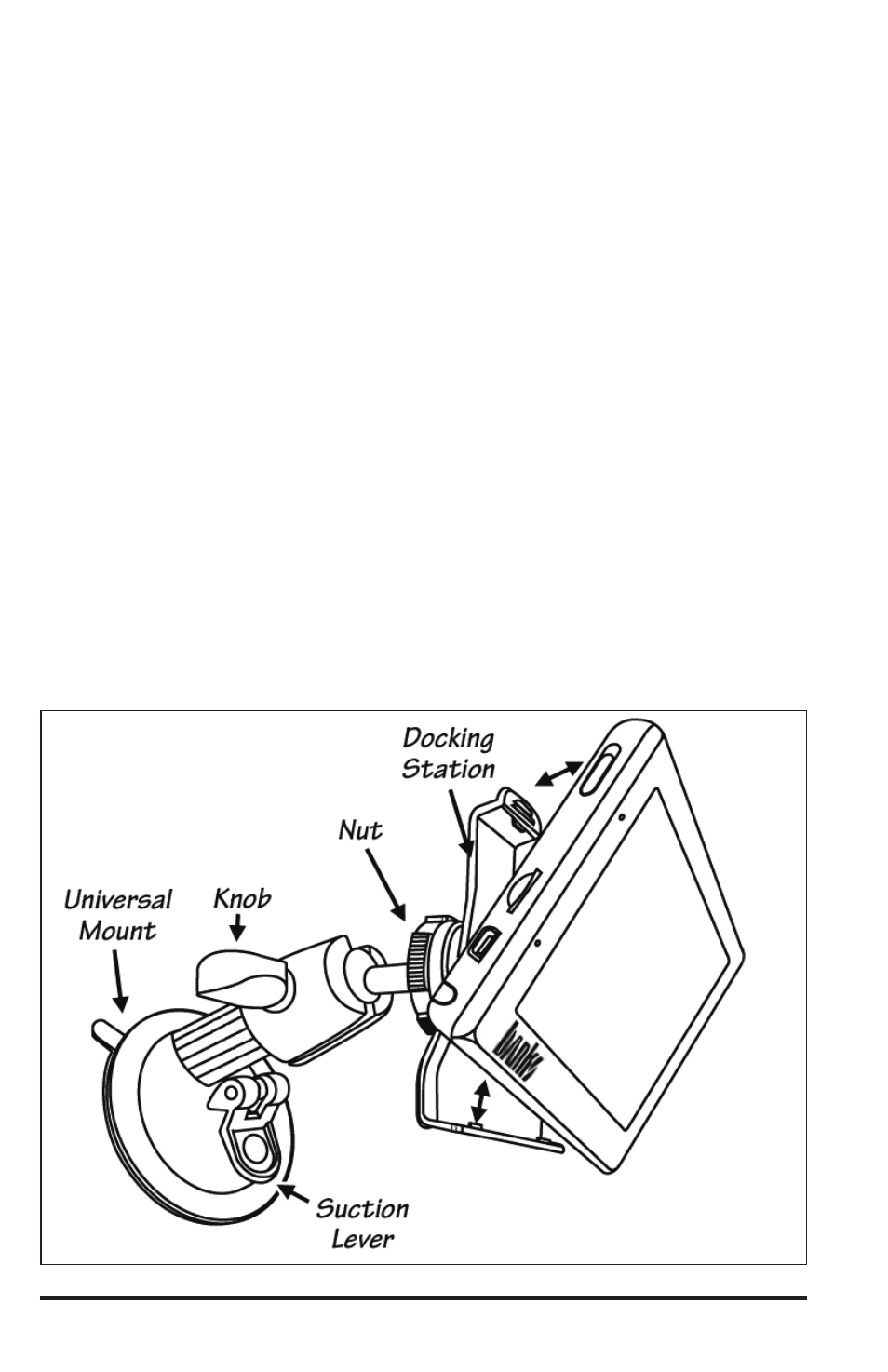

Figure 20 Attaching Banks iQ to window mount
