1.
Locate the EconoMind Tuner from
your kit and lay out the harness.
There may be differences between
motorhome chassis and coach body
builders so it is good to plan ahead
and lay out your harness and locate a
suitable mounting location.
2.
Locate the crankshaft position (cKP)
sensor on the engine. It is usually
located at the bottom edge of the
engine, near the crankshaft damper
and engine belt(s) (Figure 15).
NOTE: There is a locking tab on
both the Banks and factory female
connectors. It may be necessary to
unlock the tab prior to removal of
the factory female CKp connector by
sliding it to the side.
Push and hold the locking clip while
disconnecting the factory (female) cKP
connector and connect it to the Banks
(male) cKP sensor connector. connect
the Banks (female) cKP sensor
connector to the factory sensor. Push
in the locking tabs. Use the supplied
wire ties to secure the Banks wiring to
the factory installed wiring harness.
3.
Locate the manifold absolute
pressure (MaP) sensor installed at
the top of the engine (Figure 16).
Push and hold the locking clip while
disconnecting the factory MaP sensor
connector and connect it to the Banks
(male) MaP sensor connector. connect
the Banks (female) MaP sensor
connector to the factory sensor. Push
in the locking tabs.
Section 4
Installation of Wiring Harness, Connections and EconoMind Tuner

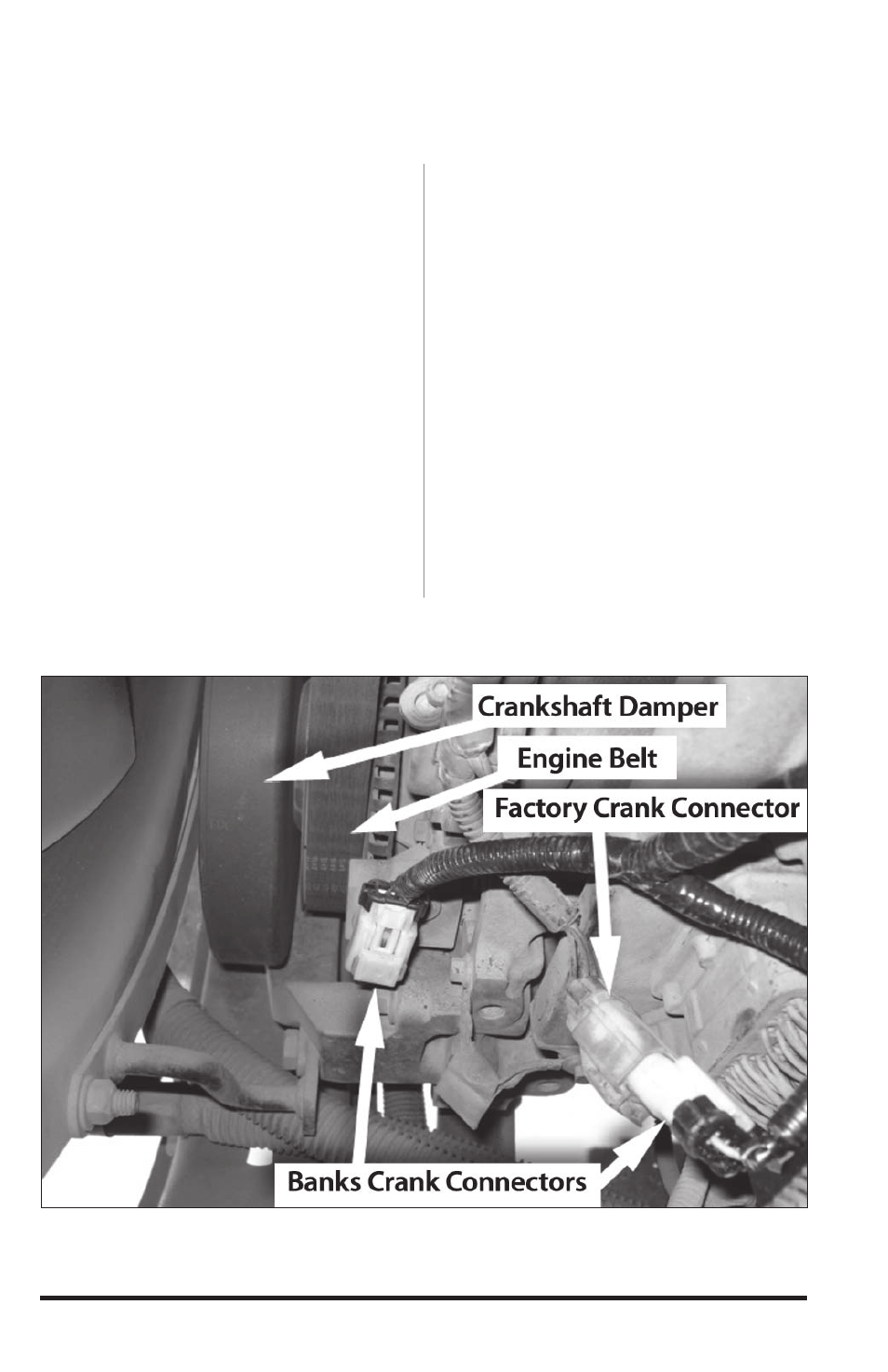

Figure 15
