d. Route the RED wire to the fuse
box. Locate the appropriate fuse for
instrument lighting in the owner’s
manual. cut the RED wire as required
and strip the end. crimp the push on
connector to the RED wire and connect
to the fuse as shown in Figure 19.
alternatively, locate power wire to
dimmer switch and install T-tap. cut the
RED wire as required and strip the end.
crimp the push on T-tap connector to
the RED wire and connect to T-tap on
dimmer power wire.
e. Locate a metal surface that will serve
as an acceptable chassis ground. cut the
BLacK wire to a sufficient length that will
allow it to reach the chassis ground and
strip the end. crimp the ring terminal to
the BLacK wire as shown in Figure 19.
f. Drill a 1⁄8” hole, if required, to attach
the ring terminal to the chassis ground.
CAUTION: If drilling, check the backside
to make sure there are no components
that may be damaged by drilling.
g. Use the supplied self-tapping screw to
secure the ring terminal to the chassis
ground.
12.
Reconnect the battery ground
cable(s).
13.
Double check everything to make
sure it is securely fastened and it is not
near any hot or moving parts before
starting engine.
14.
Proceed to Section 10.
-END SEcTION 7-

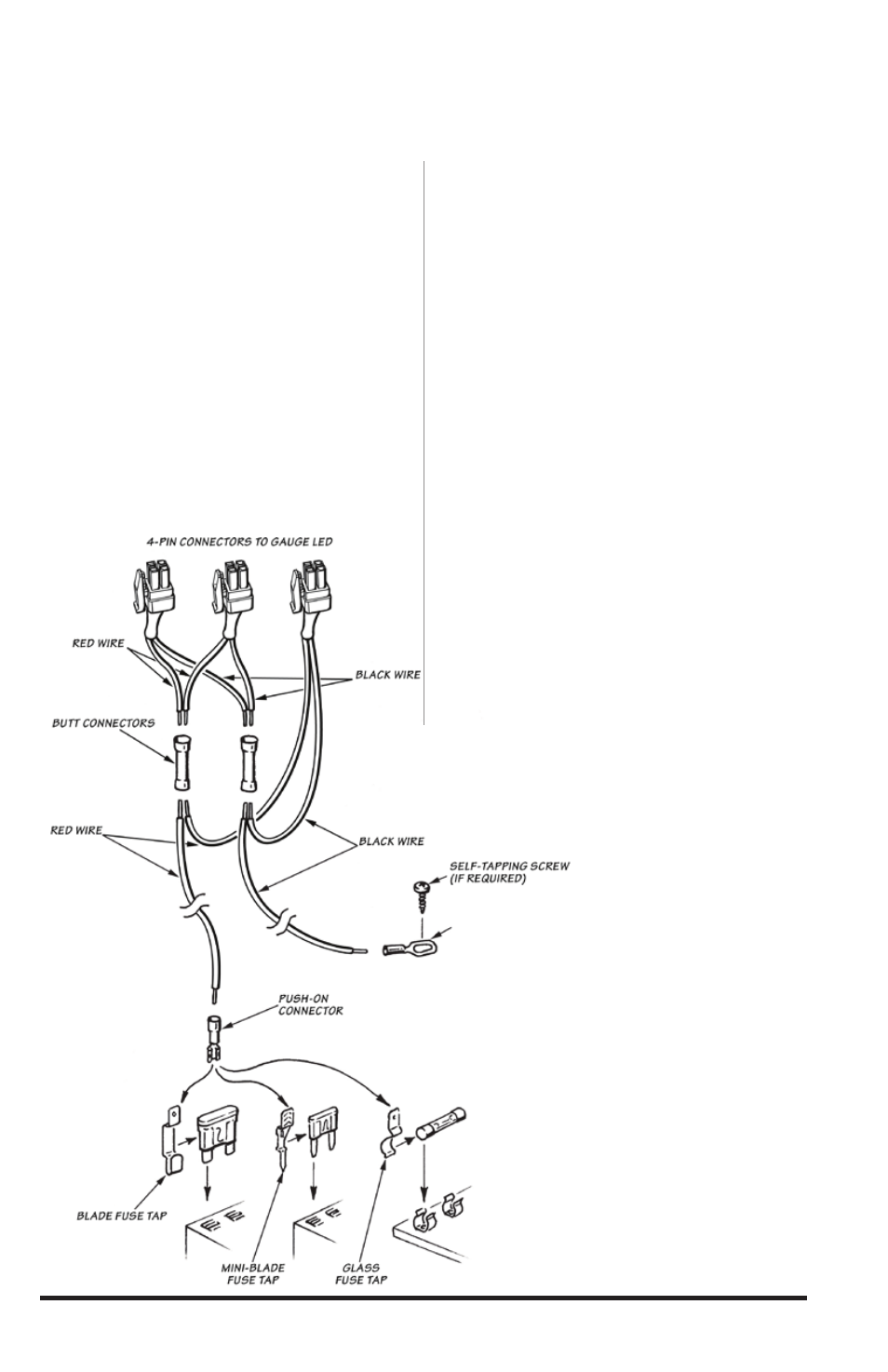

Figure 19
