REAR INSTALLATION

1. Secure and block the front tires of the vehicle on a level concrete or asphalt surface.
2. Raise the rear of the vehicle and support the frame with jack stands. Remove the rear wheels and tires and set

aside.

3. Un-couple the e-brake cable on the drivers side of the vehicle. See Photo 1.
4. Remove the cable from the body mount using pliers to release the cable clips as shown in Photo 2

5. Remove the cable and place the supplied drilling template in place, making sure the template has the new hole

placed directly below factory hole The template may be tapped in place. See Photo 3.

6. Drill the new hole as shown using a 9/16” drill bit. See Photo 4.

7. Install the e-brake line bracket on the e-brake line as shown in Photo 5, making sure the bracket snaps into place.
8. Install the supplied brake line bracket as shown in Photo 6 with the supplied 1/2” x 1 1/2’ bolts, flat washers and lock

nut. Tighten using a 19mm wrench / socket.

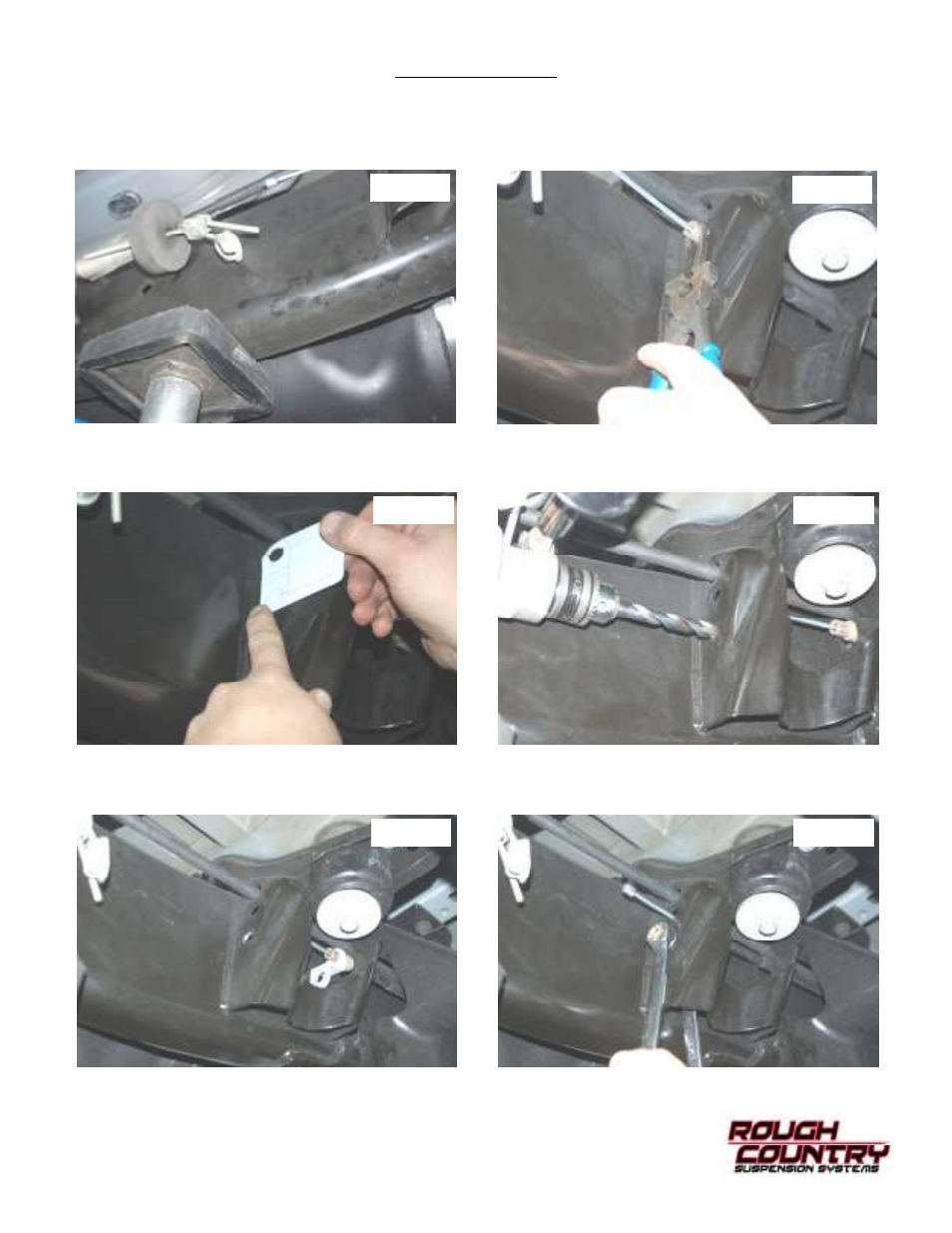

Photo 1

Photo 2

Photo 3

Photo 4

Photo 5

Photo 6
