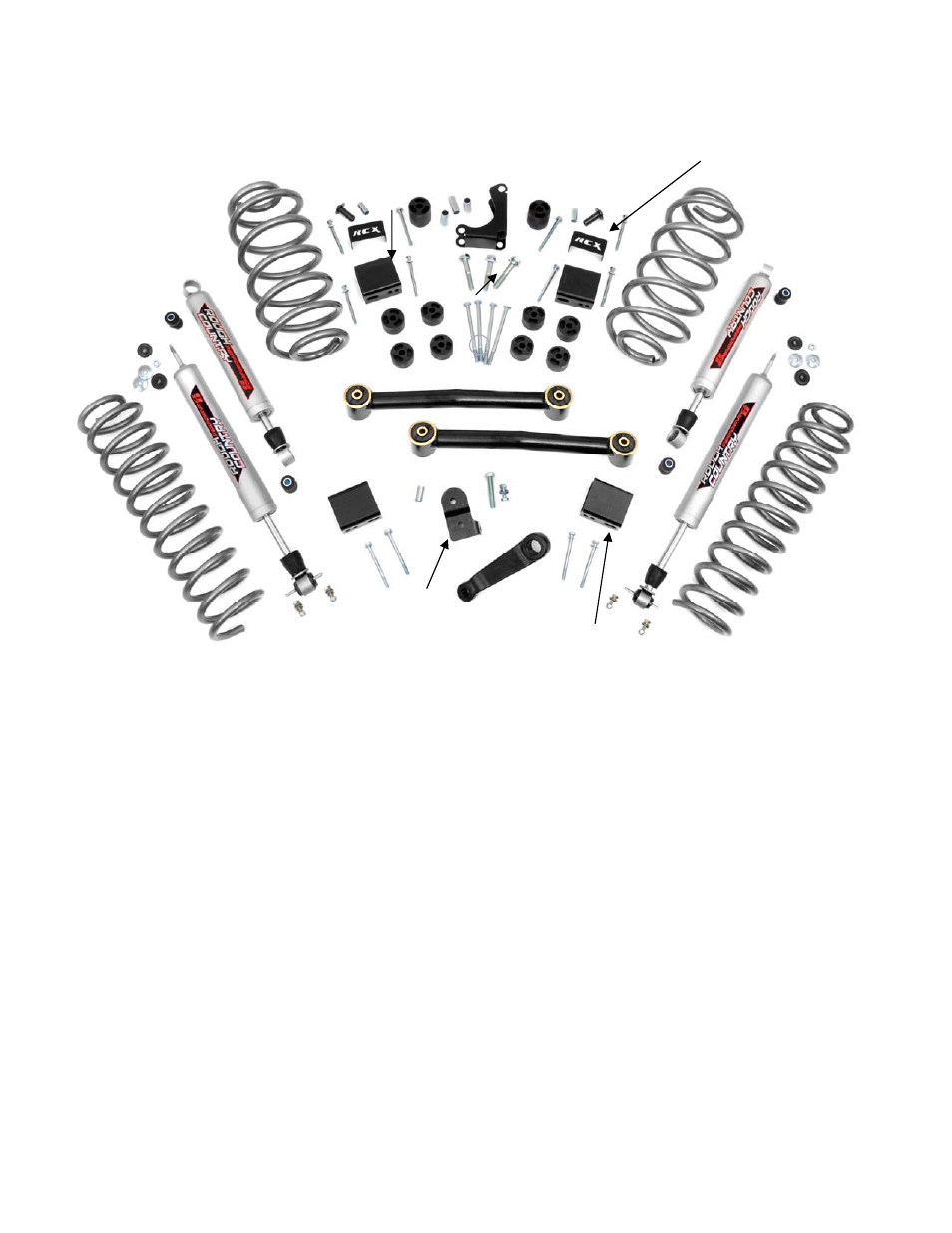

Kit Contents:
1698C Containing:
2-Front Coil Springs
2-Frt Lower Control Arms
1698 Kit Box Containing:
4-Front Bump Stop Brackets/
Rear Sway Bar Brackets
1-Pitman Arm
2-Rear Coil Springs
1-Rear Upper Control Arm Bracket
2-Rear Lower Shock Brackets
1-1698Bag2
Perf2.24WJ kit Containing:
2-Fr 2.2 Series Shocks
2-Rr 2.2 Series Shocks
1-1698Bag3—Rr Shock Hardware
2-Frt Upr Shock Hardware Bags
KIT CONTENTS
Rear Coil (2)
1698 bag2:
For the Track Rod Bracket:
1-3/8” x 1” Bolt
2-3/8” Washers
1-3/8” Nut
1-12mm x 65mm (approx 2.6”)Bolt
1-Flange Lock nut
1-Crush Sleeve
For Front Bump Stops:
4-8mm x 95mm (approx 3.7”)Bolt
4-8mm Washers
For Drag Link
1-Cotter
Pin
For Cross-Member Transfer Case Drop:
4-10mmx 140mm(approx 5.5”)Bolts
8-1” Spacers
4-10mm Flat Washers
For Front Shock Absorbers:
4-5/16” x 1” Bolt
8-Flat Washers
4-Lock Nuts
1698 bag5
For Rear Upper Arm Bracket:
3-14mm x 75mm(approx 3”)Bolts
3-Flat Washers
3-Crush Sleeves
For Rear Bump-stop Spacer:
2-3/8” x 3 1/2” Self Tap Bolts
2—2” Body Blocks
For Rear Sway Bar Bracket:
4-10mm 90mm(approx 3.5”)Bolts
4-Flat Washers
For Rear Shocks:
2-12mm x 100mm(approx 4”)Bolts
2-Crush Sleeves
2-Flat Washers
1698 bag3:
For Rear Shocks:
4-Bushings
2-Lower
Sleeves
2-Offset Sleeve/Washer
Rear
Shocks
Front
Shocks
Front Coil (2)
Frt Track
Bar Brkt
Pitman Arm
Rr Upper Control
Arm Brkt Rear Sway Br
Brkt (2)
T-Case Spcrs (8)
Front Lower
Control Arms/
Fr Bump Stop
Brkt (2)
Lower Rear
Shock Sleeve /
Bushing/Brkt (2)
Rear Bump
Stop Brkt (2)
