22. Install the two 3/8” x 1 1/4” bolts, washer and nuts in the new bracket and supplied stabilizer bracket if reusing the
stock stabilizer in the far left holes as shown. If not installing the stock stabilizer, the two 3/8” x 1 1/4” bolts will be
installed in the two far left holes in the bracket with out the supplied stabilizer bracket. See Photo 12.
23. Drill the rear mount using a 3/8” drill bit and install the 3/8” x 1 1/4” bolt, washer and flange lock nut. See Photo 13.
24. Tighten all 3/8” hardware using a 9/16” wrench.
25. This next two steps will be performed if the stock stabilizer is retained. On 07-10 Models mark the location on
the factory tie rod bracket on the tie rod and loosen the u-bolt nuts using a 13mm wrench. Slide the bracket down 1
1/4” rotate to position the stud up as shown and retighten tie rod end bracket. See Photo 14.
26. On 2011 models loosen the tie rod bracket using a 15mm wrench. Mark original location and move the bracket 1
1/2” and rotate the tie rod bracket as shown to allow full stroke of the stabilizer cylinder. See Photo 15.
27. Install the factory stabilizer in the new track rod / stabilizer mount with the body of the stabilizer on the axle mount
with stock hardware and tighten using a 18mm socket / wrench. See Photo 16.
28. Install the stock track bar into the new track rod bracket using the supplied 14mm x 80mm bolt, flat washers and lock
nut. Tighten using a 21mm & 22 mm socket / wrench.

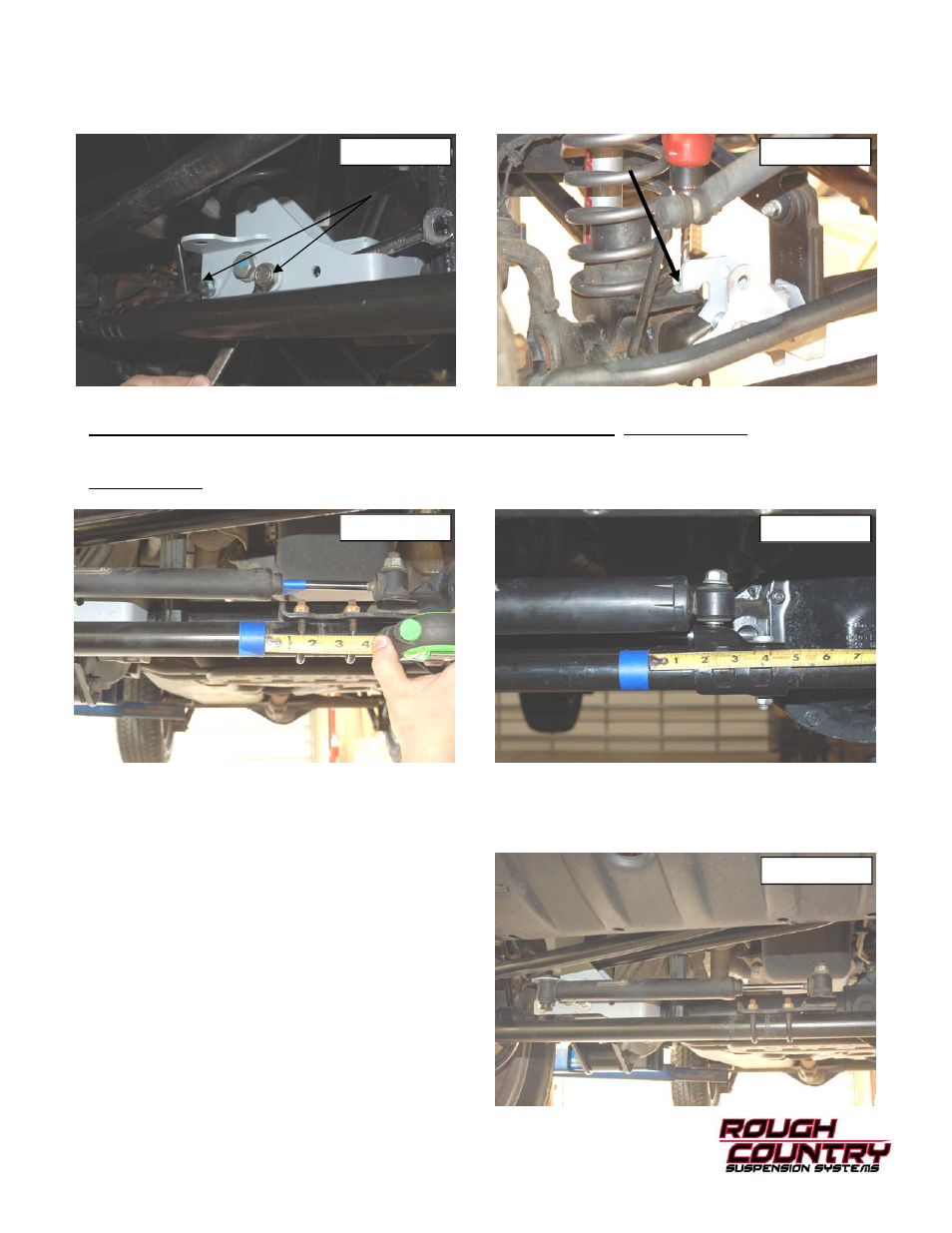

PHOTO 12 PHOTO 13
PHOTO 14 PHOTO 15
PHOTO 16
