Two-way broadband distribution amplifiers – Toner Cable BIDA Series Broadband Distribution Amplifiers User Manual
Page 3
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
01/05
BID
A T
w
o-W
ay Br
oadband Distribution Amplifier
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA

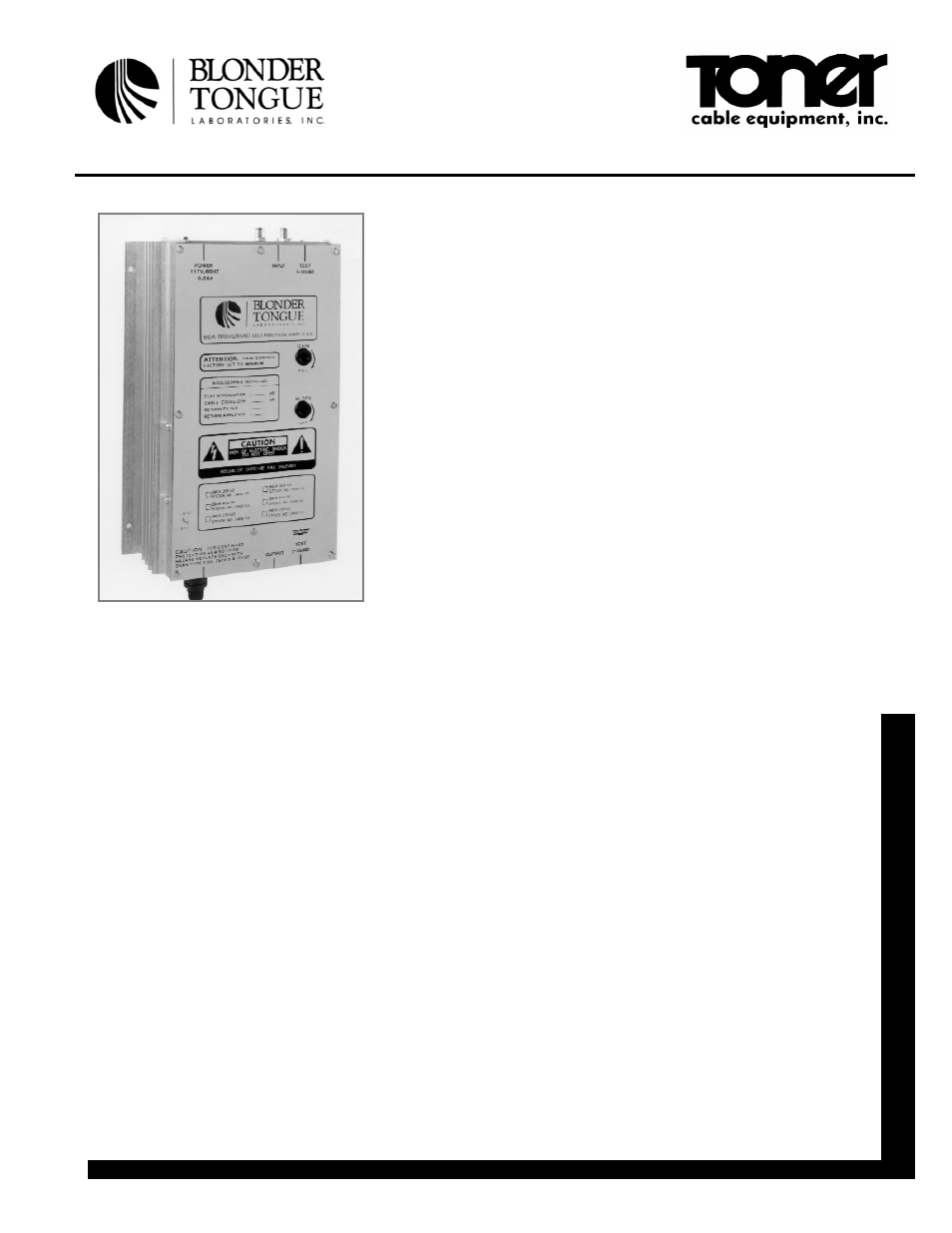

BIDA 5800 & 5900 Series
Two-Way Broadband Distribution
Amplifiers
Common Specifications
Gain Control Range:
10 dB
Slope Control Range: 8 dB
Hum Modulation:
70 dB
Impedance - All Ports: 75 Ohm
Return Loss
Input:
16 dB
Output:
16 dB
Size (LxWxH):
7.25 x 3.25 x 10.25 in
18.42 x 8.26 x 26.04 cm
Weight:
6 lbs
2.7 kg
Power Requirements:
117 VAC, 60 Hz Power
Notes:
(a) Measured at full gain with 8 dB slope
(b) At rated output capability and channel loading
Features & Benefits
Interstage Variable Gain and Slope Controls
Optional Plug-in Fixed Equalizer and Attenuator Capability for
Input Signal Conditioning
UL Listed External Transformer
Integrated Return Path Configurable for either Passive or Active
Operation
Push-Pull and Power-Doubling Hybrid Models Available
Input and Output Test Ports
Large Heat Sinks for Exceptional Heat Dissipation
The BIDA 5800 and 5900 Series are professional quality, two-way
broadband indoor distribution amplifiers. These amplifiers are ideal
for multi-channel RF distribution systems for which the input source
is a “cable drop” or the output of a MATV/SMATV/CATV headend.
The BIDA 5800 Series features models having RF bandwidths of 550,
750, 860, and 1000 MHz. The BIDA 5900 Series is available in 860
MHz bandwidth. Push-pull and power-doubling hybrid amplifier tech-
nologies are available on the two series. Both the BIDA 5800 and
5900 Series are factory equipped for 2-way operation. The 5800
series has a 36/49 MHz split where the 5900 series has a 42/54 MHz
(reverse/forward) split. Both series leave the factory set for passive
return path operation. Active return path operation can easily be
accomplished by reconfiguring a few internal jumpers.
The BIDA 5800/5900 Series utilizes an external power transformer
providing 26 VAC to the amplifier. This enables the amplifiers to be
remotely powered via low voltage AC wiring should a 120 VAC elec-
trical outlet not be in close proximity to the desired amplifier location.
