20 938H Wheel Loader specifications

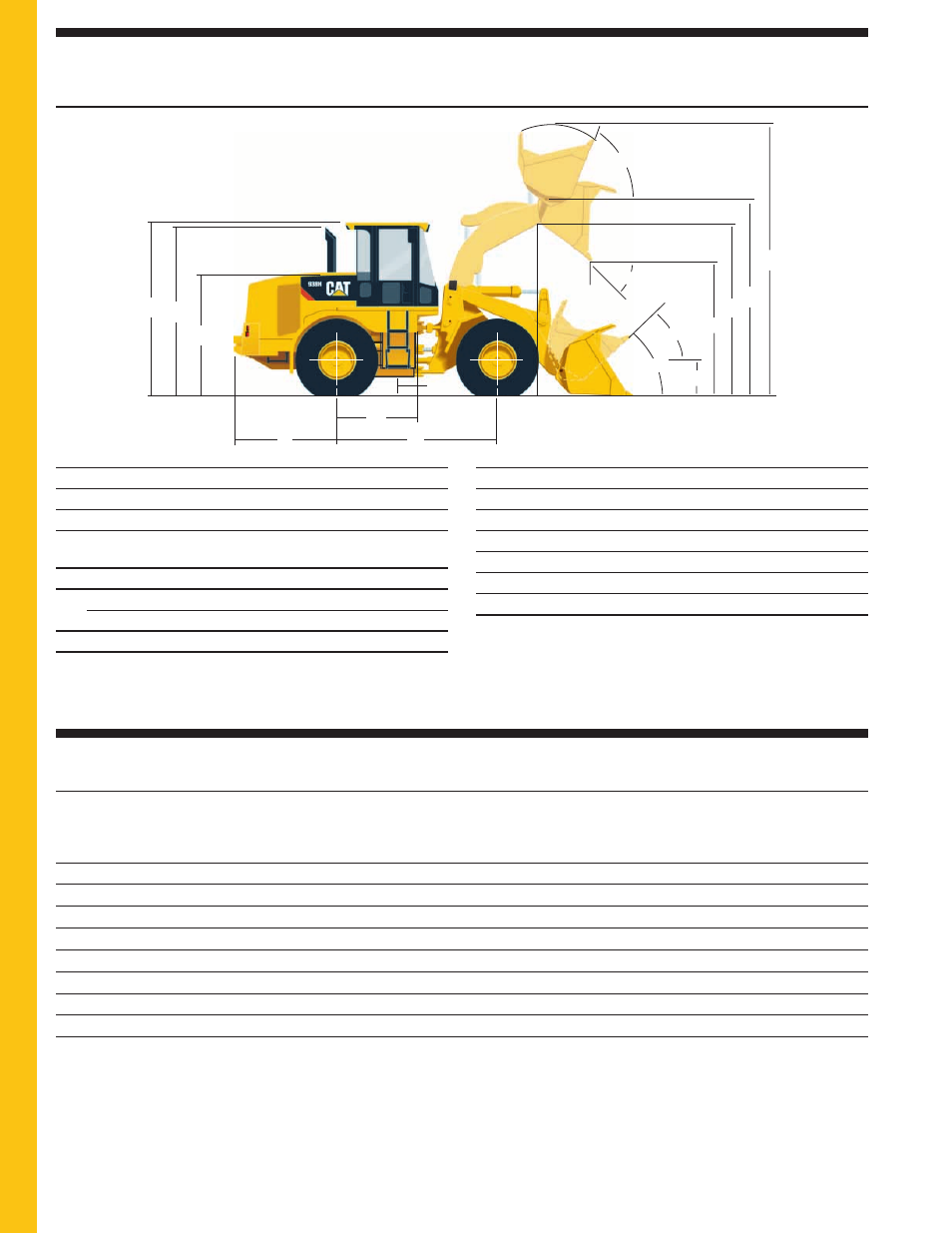

Dimensions
All dimensions are approximate and may vary with work tool.
Tires are 20.5R25 Michelin XHA.
1 Height to top of ROPS 3356 mm 11'0"
2 Height to top of exhaust pipe 3099 mm 10'2"
3 Height to top of hood 2415 mm 7'11"
4 Ground clearance/Standard tire
See Chart below for other tires
397 mm 1'3"
5 Lift arm clearance @ maximum lift 3435 mm 11'3"
6 Bucket pin height @ maximum lift 3843 mm 12'7"
Bucket pin height, optional high lift 4266 mm 13'11"
7 Overall height – bucket raised 5284 mm 17'4"
8 Center line of rear axle to edge
of counterweight
1869 mm 6'1"
9 Wheelbase 3020 mm 9'10"
10 Height to center line of axle 688 mm 2'3"
11 Center line of rear axle to hitch 1510 mm 4'11"
12 Rack back @ maximum lift 65
°
13 Dump angle @ maximum lift 50
°
14 Rack back @ carry 50
°
15 Rack back @ ground 42
°
16 Dump clearance @ maximum lift
and 45
° dump 2771 mm 9'1"
Tires
mm inches mm inches kg lb kg lb kg lb
20.5-R25 XTLA L2 Radial 2603 102 –16 –1 –170 –376 –120 –264 –104 –230
20.5-R25 XHA L3 Radial 2674 105 – 0 – 0 – 0 – 0 – 0 – 0 – 0 – 0
20.5 R25 GP2B L3 Radial 2619 103 +6 – 0 –53 –116 –37 –81 –32 –71
20.5 R25 HRL L3 Radial 2618 103 +23 +1 –48 –107 –34 –75 –30 –65
20.5 R25 RL-2+ L3 Radial 2609 103 +12 – 0 +13 +28 +9 +20 +8 +17
650/65R-25 XLD L3 Radial (Low Profile) 2733 108 – 0 – 0 +519 +1145 +364 +803 +318 +701
20.5-25 SRG LD L3 Bias (16 PLY) 2558* 101* +8 – 0 –242 –533 –170 –374 –148 –326
20.5-25 SRG LD L3 Bias (20 PLY) 2556* 101* +11 – 0 –174 –384 –122 –270 –107 –235
20.5-25 RM 99 L3 Bias 2540* 100* +8 – 0 –58 –129 –41 –90 –36 –79
*Without bulge.
Width over tires –
maximum
(loaded)
Change in
vertical
dimensions
Change in
operating weight
without ballast
Change in
static tipping
load – straight
Change in
static tipping
load – articulated
➤➤
4 ➤
➤
➤
➤
➤
➤
➤
➤
➤
➤
7
➤ ➤ ➤ ➤
➤ ➤
➤
➤
➤
➤
➤
➤
1
2
3
11
9
15
6
12
➤
➤
8
➤
➤
5
13
10
➤
➤
16
➤
➤
14
