Atdec Telehook TH-2250-VF product brochure - Manual (Page 2)

Product information, single unit
Package information, master pack
Package information, single unit

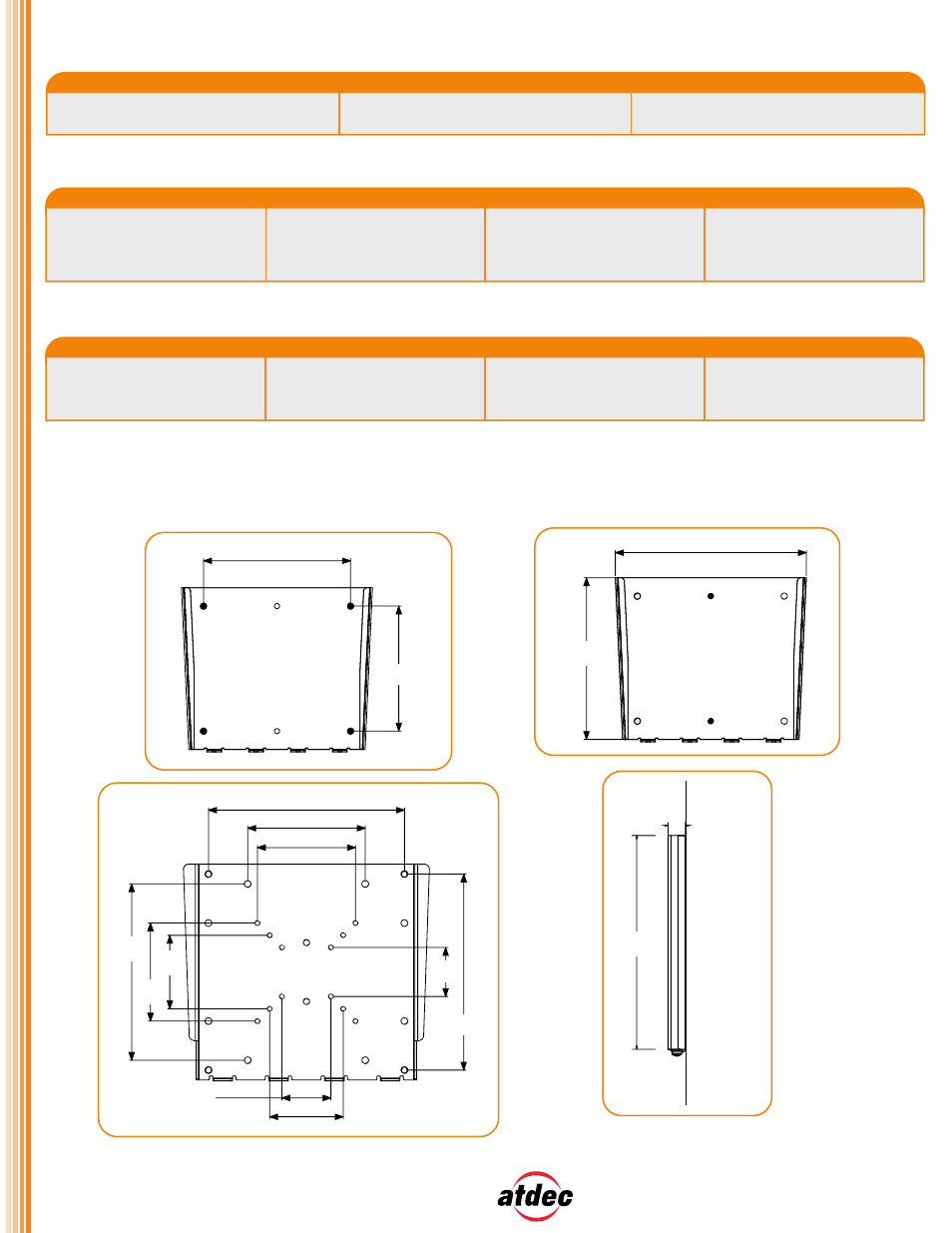

Technical drawings
Load capacity Material Color
Black 50kg (110lbs) Steel
Size Ship weight UPC code Contents
All hardware required for
installation supplied
881493004764
31.5cm x 24cm x 2cm
(12.4" x 9.4" x 0.8")
2.1 (4.62lbs)
Size Ship weight UPC Units per master pack
10 881493004832
33cm x 24cm x 28cm
(13" x 11" x 9.4")
22.7 (49.94lbs)
Atdec North America www.atdec.com
Atdec Global www.atdec.com.au
Mouting hole pattern for:
Dry Wall and Masonry Wall
Mounting hole pattern for:
Timber Stud
Display Plate
200mm (8”)
170mm
(6 11 /
16
”)
MOUNT ON WALL
260mm (10¼”)
220mm
(8 11 /
16
”) MOUNT ON WALL
200mm (8”)
100mm (4”)
120mm (4¾”)
50mm (2”)
75mm (3”)
200mm
(8”)
50mm
(2”)
180mm
(7 1 /
16
”)
100mm
(4”)
75mm
(3”)
MOUNT ON WALL
Distance from Wall (Side View)
220mm
(8 11 /
16
”)
16.50mm ( 5 /
8
”)
