500mm
(19.7")
BASE
FRONT 730mm (28.7")
REAR 530mm (20.9")
SHELF HEIGHT
556mm (21.9")
786mm (30.9")
1016mm (40")
200mm
(7.9")
200mm
(7.9")
UP TO 800mm
(31.5")
UP TO 600mm
(23.6")
UP TO 400mm
(15.8")
UP TO 600mm
(23.6")
SCREEN HEIGHT
1120mm-1820mm
(44.1"-71.6")
400mm
(15.7")
490mm
(19.3")
741.5mm
(29.2")
380.50mm (15")
EXTENSION
375.50mm (14.8")
MOUNTING BRACKET
357mm (14") TILT MECH
10° FORWARD TILT
Mobile TV Cart
TH-TVCB
Maximum Display Weight: 50kg (110lbs)
Maximum Shelf Weight: 5kg (11lbs)
Screen Mounting Compatiblity:
Supports mounting hole patten From 200 to 800mm wide
and From 200 to 600mm high.
Included hardware Colour
All fasteners are included. Black
Warranty
10 years limited
General Features
Dimensions (all dimensions in mm)
±90°
Rotation:
Landscape to portrait view
adjustment
Technical Specifications
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to the continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 15.11.12 ©
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
Product information
Package information, single unit
Product Code
TH-TVCB
110cm x 24.5cm x 79cm
(43.3” x 9.6” x 31.1”)
50kg (110lbs)
40kg (88lbs)
Steel
881493007895
Black
All hardware required for
installation supplied
Load capacity
Size Ship weight
Material
UPC code
Colour
Contents
Atdec mounts are designed, developed and tested in Australia. While all efforts
have been made to ensure the information in this brochure was correct as of the
date of printing, we reserve the right to change specifications without notice. Please
refer to the website for our full range along with the latest details on specifications,
compatibility and dealer location. Atdec and Telehook are registered trademarks
with all rights reserved. Copyright November 2012.

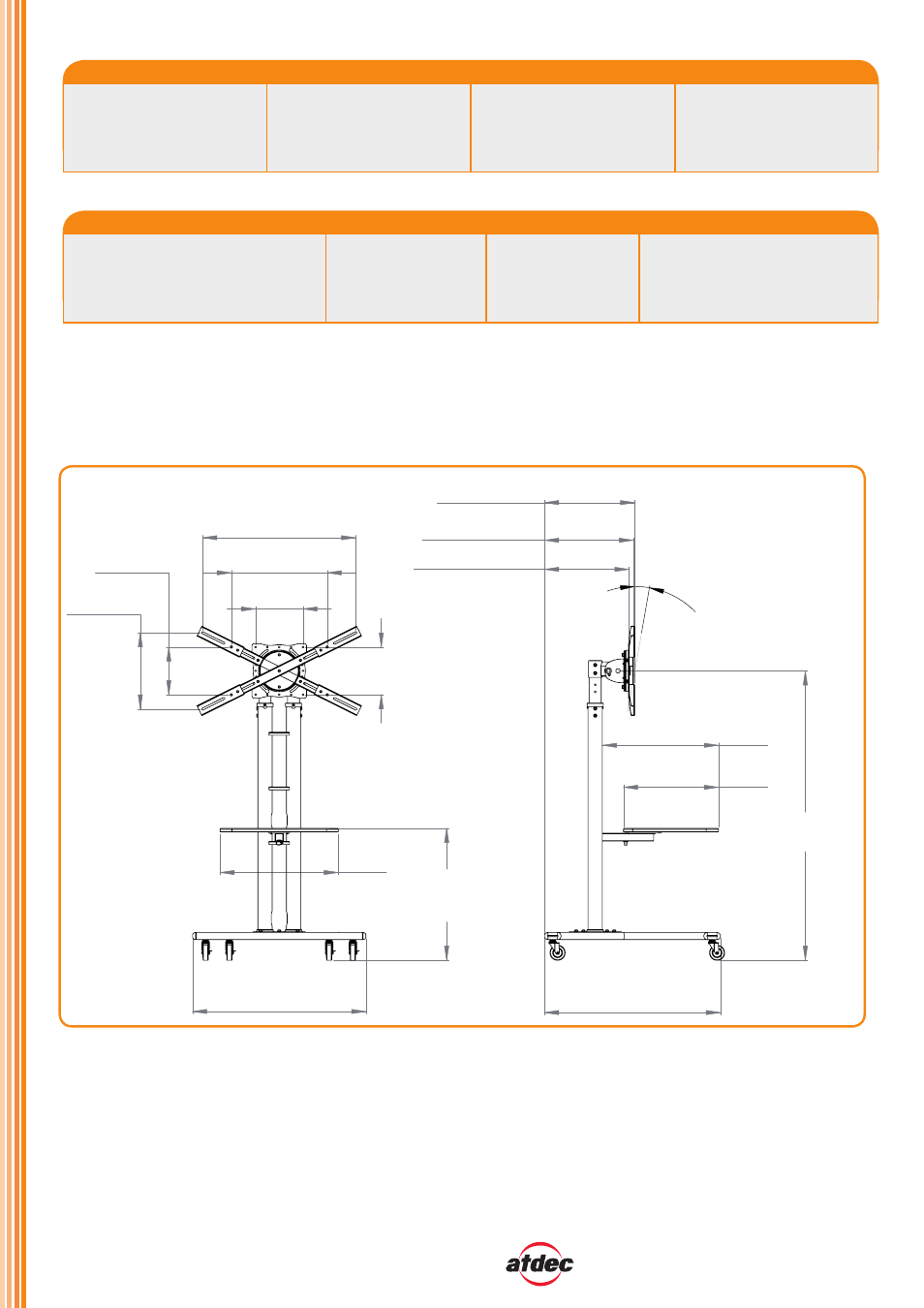

Technical drawings
