C.1. Bolt Through

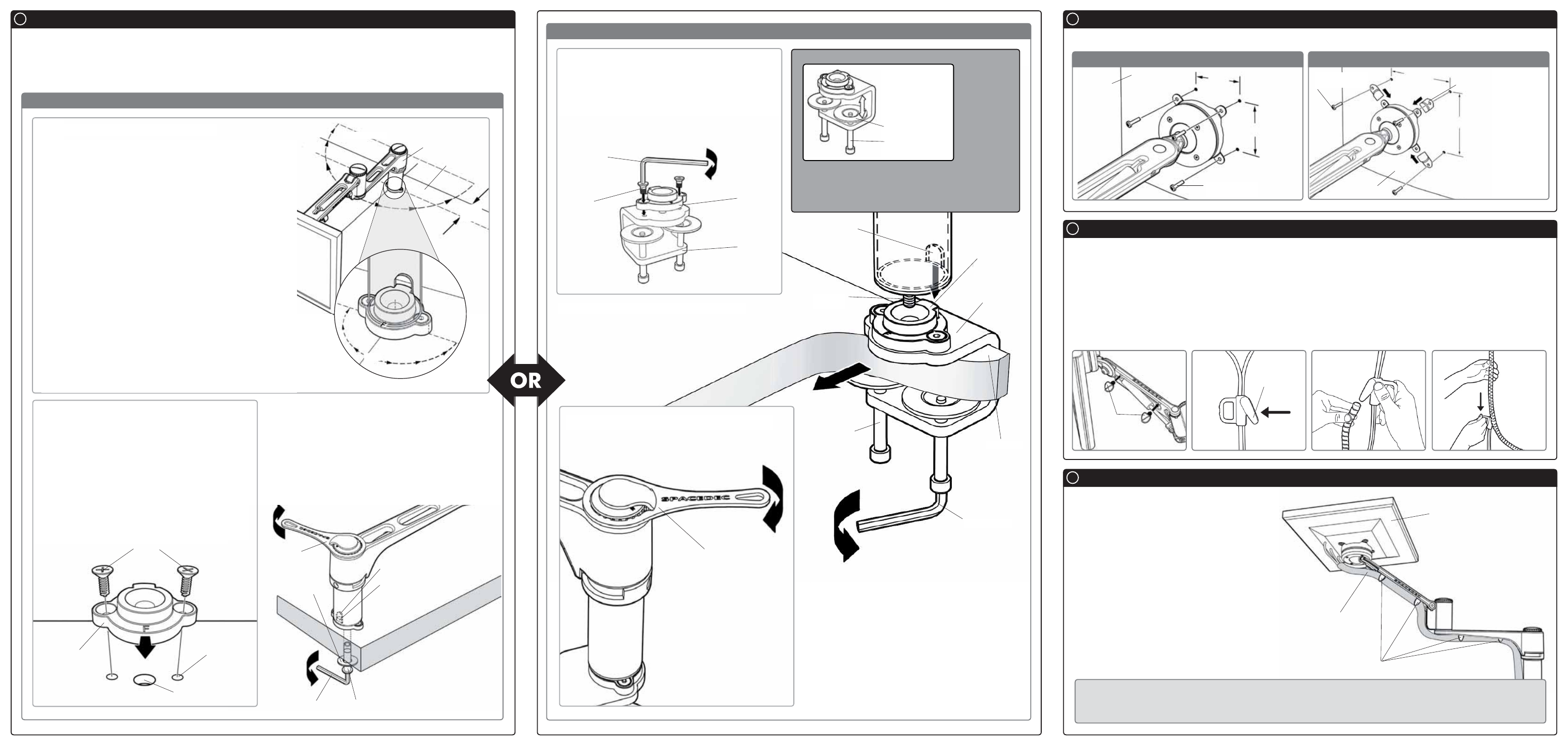

Mounting Options

C

C.2. Desk Clamp

There are two Mounting Options: Desk Clamp and Bolt Through
To use the Bolt Through system (Suits desktop thicknesses of 12mm-40mm [

1

/

2

-1

1

/

2

]) follow the Bolt

Through instructions at C.1. To use the Desk Clamp (Suits destop thicknesses of 12mm-38mm [

1

/

2

-1

1

/

2

])

follow the Desk Clamp instructions at C.2.

Attaching the Display

D

Direct Mount Configuration

75mm x 75mm (3” x 3”) mounting hole pattern

100mm x 100mm (4” x 4”) mounting hole pattern

Installing Cable Management

E

Attaching the Cable Wrap to the Arm

F

E.1.

Push the four supplied Cable Clips into the holes on the underside of the arm as shown in diagram

E.2.

Feed the cables into the Cable Wrap Applicator.

E.3.

Insert the Cable Wrap Applicator into the Cable Wrap as shown.

E.4.

Squeeze the nose of the Applicator and place inside the Cable Wrap ensuring that the opening edges

of the Cable Wrap face towards the nose of the applicator as shown in diagram.

F.1.

Position the display at its highest possible

position to ensure that there is sufficient
cabling at the end of the arm so the cables
are not stretched or pulled out when the
display is moved.

F.2.

Clip the cable wrap into the four Cable

Clips as shown in diagram.

Cable Clips

Display at
highest point

E.1.

Push in
Clips

NOTE:

Ensure that

the flat side of

each Extension

Clip sits against

the back of the

display

Extension Clip

4x12mm or
4x16mm Screws

Display

4x10mm
Screws

C.1.1. Base Casting

The Articulated Arm is limited to 180° rotation. This is
determined by the location of the Base Casting, as shown.

When mounting the Base Casting, ensure that the
Articulated Arm is free to achieve its full 180° range of
movement.

If mounting the Base Casting in a 90° corner, position the
casting to ensure that the Articulated Arm can only make
contact with one side of the corner.

The Base Casting should be mounted no less than
50mm (2”) from the edge of the desk.

C.1.2. Drill Mounting Hole

Position the Base Casting on the desk in the
desired location ensuring that the letter “F”
faces the user. Using the base casting position,
locate and mark the holes (x3) for drilling.

Drill the holes and then secure the Base
Casting to the desk using the supplied 14
Gauge Self Tapping Screws (x2).

C.2.1. Assemble Desk Clamp

Place the Base Casting on top of the Desk
Clamp ensuring the “F” is facing towards the
user. Using the 4mm Allen Key, attach the Base
Casting to the clamp by inserting the supplied
M6x12mm Countersunk Screws (x2) into the
holes in the Base Casting as shown.

BEFORE PROCEEDING TO THE NEXT STEP PLEASE NOTE:

Articulated Arm will only work when a display is properly installed.

DO NOT

adjust tension screws or gas strut until your display has been attached.

14 Guage

Self Tapping

Screw

Desktop

3mm Hole

(

1

/

8

”)

15mm Hole (

9

/

16

”)

Base
Casting

User

C.1.3. Installing the Articulated Arm
Insert the M10 Interscrew up through the hole in the
work surface.

Using both hands, secure the M10 Interscrew with
the 5mm Allen Key and use the other hand to
tighten the Threaded Rod into the Interscrew with
the supplied Top Cap Tool.

C.2.2. Attaching the Desk Clamp

Place the Desk Clamp in the desired position on the
edge of the dektop and secure in place using the
supplied 5mm Allen Key as shown in diagram.

C.2.3. Attaching the Articulated Arm

Use the Top Cap Tool to tighten the Threaded
Rod into the Base Casting as shown.

Top Cap Tool

NOTE:

Desk Clamp Assembly is

Suitable for square edged desks only

DESK CLAMP ADJUSTMENT RANGE

NOTE:

It is

recommended

that the Desk

Clamp be

attached to

the rear or

side edge of

the work

surface

Adjust the Desk Clamp to suit your desk
thickness by turning the M8 Desk Clamp Screw
with the supplied 5mm Allen Key.

Suits 12mm (

1

/

2

”) to

38mm (1

1

/

2

”) thick

Work Surfaces

Pressure Plate (x2)

M8 Desk Clamp
Screw (x2)

Nose

E.2.

E.3.

E.4.

Tighten
Firmly

12mm
Countersunk
Screws (x2)

Base

Casting

4mm
Allen Key

Desk

Clamp

Assembly

Tighten
Firmly

Cable Wrap

100mm

(4”)

100mm (4”)

75mm

(3”)

75mm (3”)

Display

5mm Allen Key

Top Cap
Tool

Tighten
Firmly

Tighten Firmly

Washer

M8 Desk
Clamp
Screw

Desk

Clamp

Assembly

Threaded

Rod

5mm Allen Key

Tighten

Firmly

Towards User

Desktop

Base

Casting’s

Tongue

Inner Tube

Slot

NOTE:

When attaching the

Articulated Arm,

ensure the Base

Casting’s Tongue

is inserted into the

Inner Tube Slot as

shown in C.2.2.

Articulated

Arm

50mm

(2”)

180° Rotation

Desktop

180°

NOTE:

Ensure the Base

Casting’s Tongue is

inserted in to the Inner

Tube Slot when securing

the arm assembly

Inner Tube Slot

Base
Casting’s
Tongue

M10 Interscrew
