Vertical adjustment 128mm (5”) Rotation 180° Pan 180°
Portrait/Landscape adjustment Rotation 360° Tilt ±70°
1
4
2
5
3
6
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 11.04.11 ©
Technical Specifications
General Features A
Overall Dimensions B
Display Compatibility:
Suits displays from 12” (30cm) to 24” (61cm)
Display Weight Compatibility:
Max. 8kg (17.5lbs)
Display Mounting Options:
Suits 75mm x 75mm to
100mm x 100mm mounting hole patterns
Cable Management:
Cable Covers (included in package)
Colours:
Polished Arm with Matt Silver Wall Plate
Warranty:
10 years limited
Max. 454mm (17.87”)
199mm
(7.84”)
Ø6.6mm (0.25”)
68mm
(2.68”)
150mm
(5.91”)
195mm
(7.68”)
15.5mm
(0.59”)
191mm
(7.5”)
166mm
(6.5”)
70mm
(2.75”)
Countersunk
cross recessed
14 Gauge x 50mm (2”)
Screw (x2)
Nylon Anchor
Plug (x2)
Mounting hardware included:
16.5mm
(0.65”)
Min. 109mm (4.25”)
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
Technical drawings
Product information
Package information, single unit
Package information, master pack
Product Code
Size (L x W x H)
Size (L x W x H)
VF-AT-W
32cm x 17cm x 12cm
(12” x 6.5” x 4.75”)
87cm x 36cm x 26cm
(34” x 13” x 10”)
8kg (17.5lbs)
1.4kgs (3lbs)
15kg (33.2lbs)
Aluminum
881493004382
881493004399
Polished Aluminum
All hardware required for
installation supplied
10
Load capacity
Ship weight
Ship weight
Material
UPC code
UPC code
Colour
Contents
Units per master pack
Atdec mounts are designed, developed and tested in Australia. We manufacture an extensive range of
display and projector mountings for a variety of user types and situations. While all efforts have been
made to ensure the information in this brochure was correct as of the date of printing, we reserve the
right to change specifications without notice. Please refer to the website for our full range along with
the latest details on specifications, compatibility and dealer location. Atdec and Visidec are registered
trademarks with all rights reserved. Copyright July 2012.

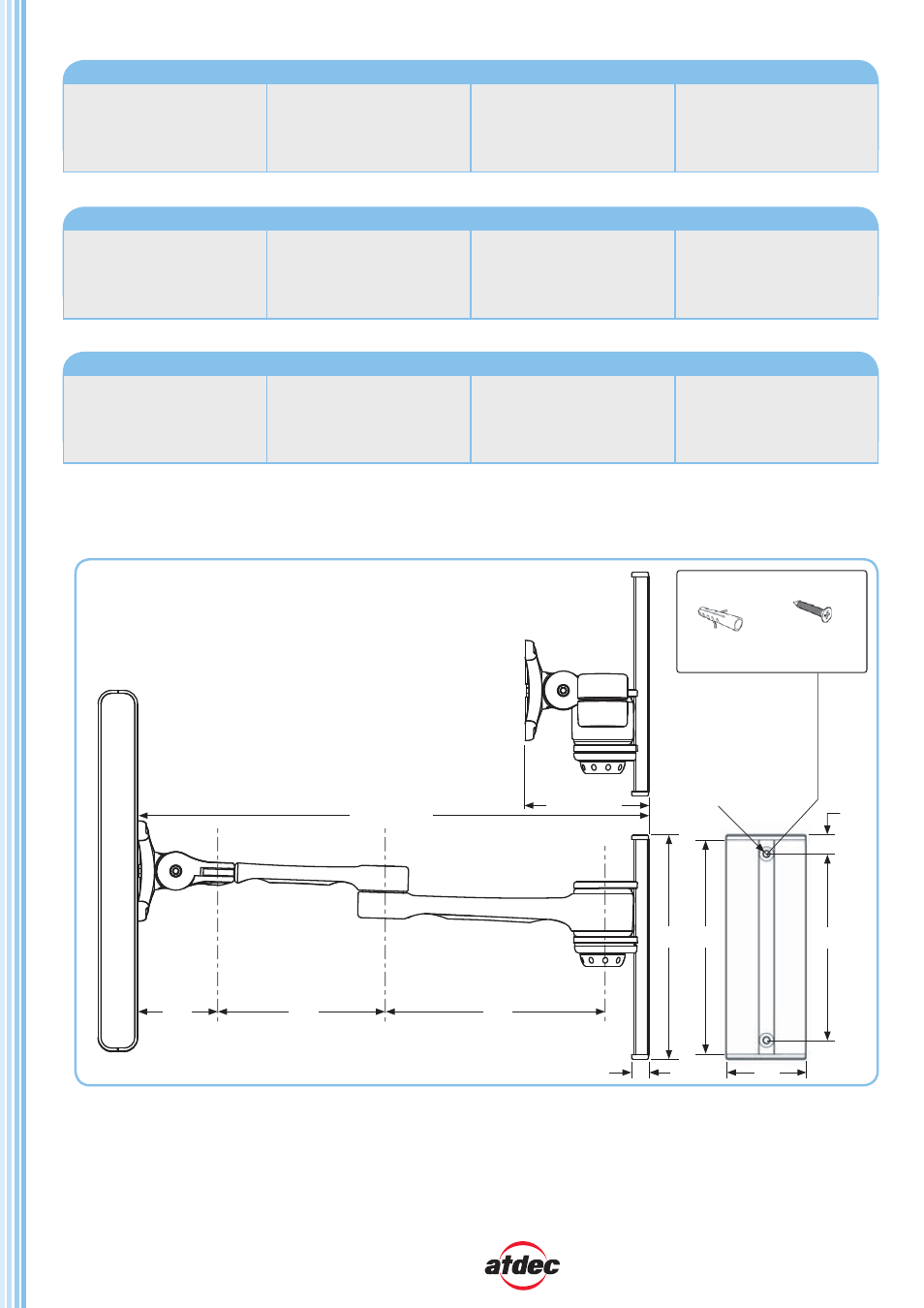

Overall Dimensions
®
