Atdec Telehook TH-3070-UFL product brochure - Manual (Page 2)

10°
280 (11”)
430 (16.9")
800 (31.5")
200 (7.87")
843 (31.6")
8.50 (0.33")
400 (15.7")
Flat screen wall mount | Full Motion Arm
Supports mounting hole patten From 200 to 800mm wide and From 200 to 400mm high.
Colour Warranty
Black 10 years limited
Display mount
Tilt Adjustment
Technical Specifications
10°
2°
2°
410 (16.1”)
340 (13.4”)
225 (8.8”)
150 (5.9”)
35 (1.38”)
280 (11”) 315 (12.4”)
502 (19.76”)
8.50 (0.33”)
430 (16.9")
800 (31.5")
200 (7.87")
843 (31.6")
8.50 (0.33")
400 (15.7")
Flat screen wall mount | Full Motion Arm
Maximum weight: 60kg (132lbs)
Screen Mounting Compatiblity: Supports mounting hole patten From 200 to 800mm wide and From 200 to 400mm high.
Included hardware Colour Warranty
All fasteners are included. Black 10 years limited
General Features
Dimensions (all dimensions in mm)
Display mount Wall Mount
Horizontal Adjustment Tilt Adjustment
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
Product information
Package information, single unit
Package information, master pack
Product Code
TH-3070-UFL
87cm x 36.5cm x 6.75cm
(34.3” x 14.4” x 2.7”)
87.5cm x 37cm x 21cm
(34.4” x 14.6” x 8.3”)
60kg (132lbs)
7.7kg (16.94lbs)
24.2kg (53.3lbs)
Aluminium and steel
881493007857
881493007864
Black
All hardware required for
installation supplied
3
Load capacity
Size
Size
Ship weight
Ship weight
Material
UPC code
UPC code
Colour
Contents
Units per master pack
Atdec mounts are designed, developed and tested in Australia. While all efforts
have been made to ensure the information in this brochure was correct as of the
date of printing, we reserve the right to change specifications without notice. Please
refer to the website for our full range along with the latest details on specifications,
compatibility and dealer location. Atdec and Telehook are registered trademarks
with all rights reserved. Copyright November 2012.

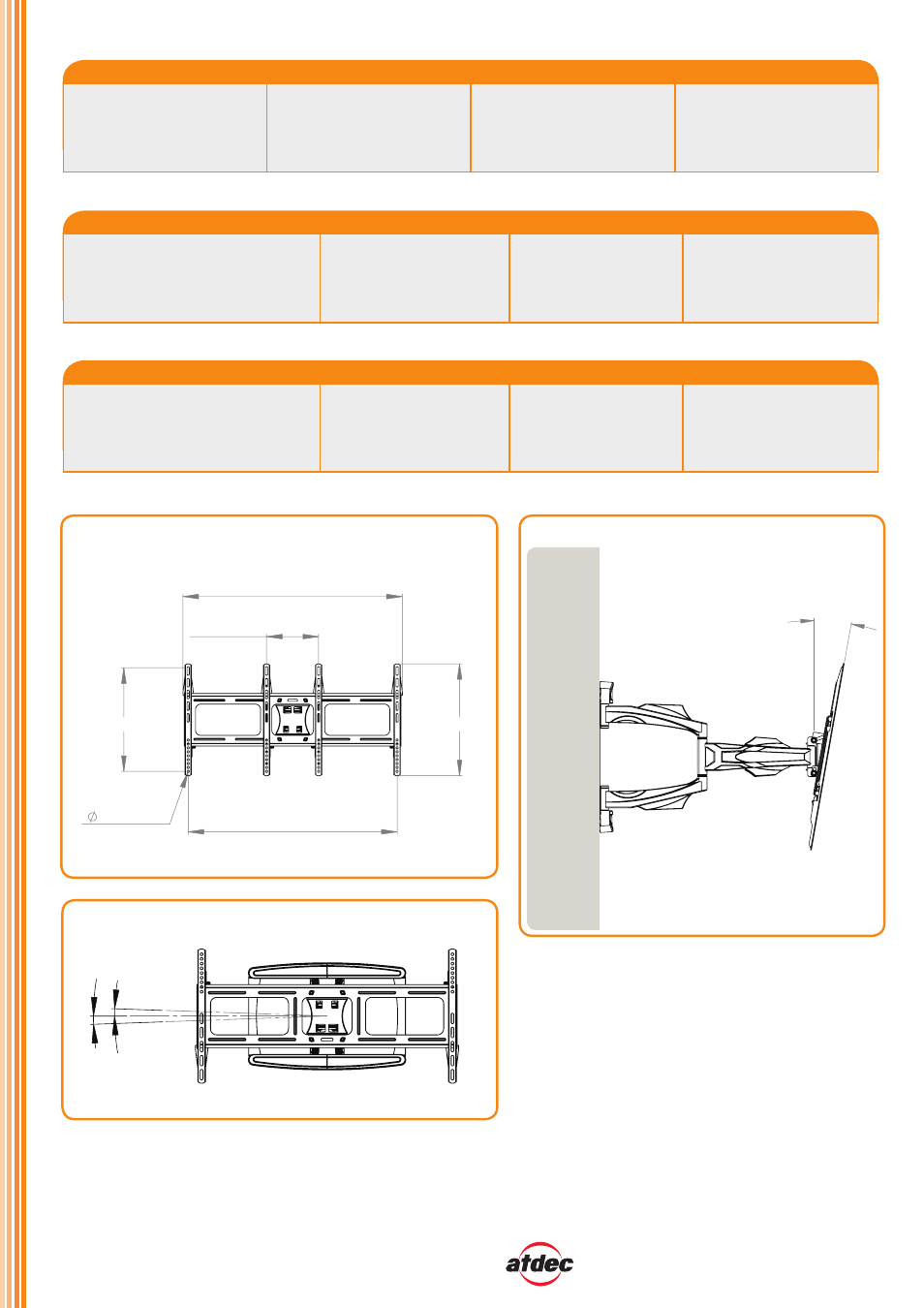

Technical drawings
pantone 165 C
cmyk 0,59,96,0
pantone 186 PC cmyk 0,100,75,4
pantone 2915 C
cmyk 49,11,0,0 cmyk 0,0,0,100
cmyk 0,0,0,100
cmyk 0,0,0,100 ®
Horizontal Adjustment
Overall dimensions
10°
2°
2°
410 (16.1”)
340 (13.4”)
225 (8.8”)
150 (5.9”)
35 (1.38”)
280 (11”) 315 (12.4”)
502 (19.76”)
8.50 (0.33”)
430 (16.9")
800 (31.5")
200 (7.87")
843 (31.6")
8.50 (0.33")
400 (15.7")
Dimensions (all dimensions in mm)
Display mount Wall Mount
Horizontal Adjustment Tilt Adjustment
Tilt Adjustment
