Configuration 3: 260mm to 660mm (10 1 / 4 ”-26”) x 200mm to 400mm (8”-15 3 / 4 ”)
Mounting Hole Patterns

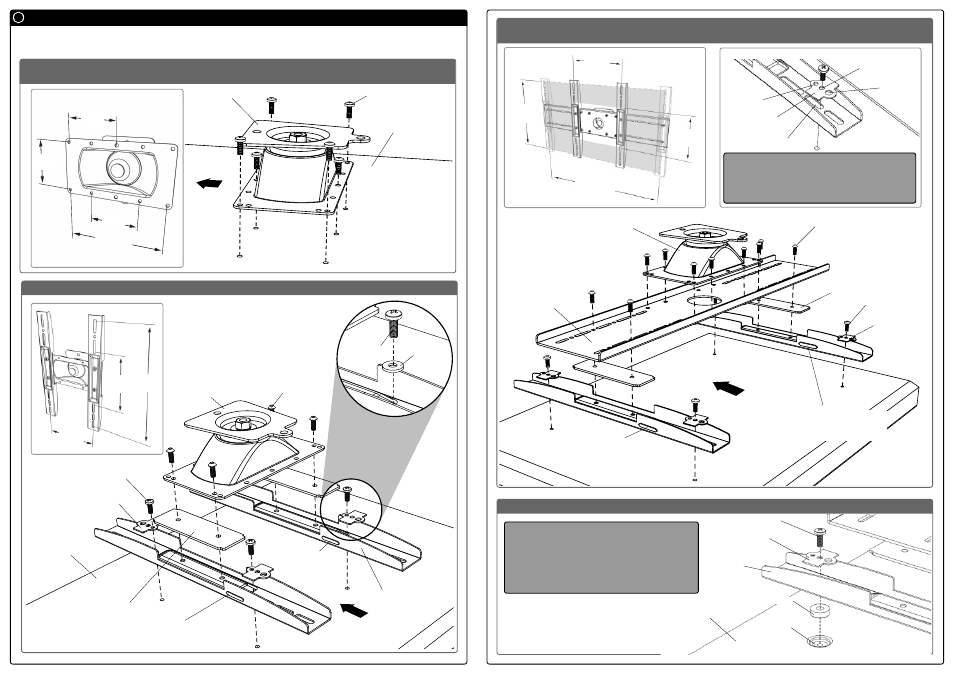

Choosing and Assembling the Correct Mounting Configuration B
Measure the mounting hole pattern on the back of the display. Select the appropriate configuration (either 1, 2
or 3) that best suits the mounting hole pattern of the display then attach the product to the display as shown.
ii
Mounting Screw Pivot Head
Back
of Display
Note: The
100mmx200mm
mounting
configuration is
shown. For mounting
displays with
100mmx100mm
mounting hole
patterns, use the
100mmx100mm holes
in the Pivot Head.
Bracket
Plate
Pivot Head
Back
of Display
Bracket
M6 Socket
Drive Screw
Mounting
Screw
Multi Washer
100mm
(4”)
100mm
(4”)
200mm (8”)
260mm
(10
1 / 4 ”)
660mm (26”)
400mm
(15
3 / 4 ”)
200mm
(8”)
Spacer Bush Assembly
If the mounting holes are recessed into the
back of the display, use the supplied Spacer
Bushes to pack the recessed hole and ensure
that the bracket is securely fixed to the display.
Note: If the display has a vertical
mounting distance of 200mm and
requires the use of the M6 Mounting
Screws, it will be necessary to
substitute the MuIti Washers for the
small washers provided.
Pivot Head M6 Socket
Drive Screw
Bracket
Plate
Mounting
Screw
Multi Washer
Extension
Plate
Multi Washer
Mounting Screw
Bracket
Recessed Hole
Spacer Bush
Small
Washer
M6 Mounting
Screw
Back
of Display
Configuration 1: VESA Compliant 100mmx100mm (4”x4”) & 100mmx200mm (4”x8”)
Mounting Hole Patterns
Configuration 2: 200mmx200mm to 400mm (8”x8”-15 3 / 4 ”) Mounting Hole Patterns
200mm
(8”)
200mm
(8”)
400mm
(15
3 / 4 ”)
Attaching the Bracket to the Display
Note: When assembling the product,
ensure the red Telehook Badges are
positioned towards the bottom of the display
In order to ensure the display is securely attached to the
bracket it is recommended that the bracket be fastened with the
mounting screws aligned along the bottom edge of the slots.
It is also important that you use the supplied Multi Washer and
ensure that the tightest fitting hole in the washer is used for the
specific size screw
M6 Screw
Hole
M8 Screw
Hole
M4 & M5
Screw Hole
Multi Washer
Slot
Telehook
Badge
Note: When assembling the
product, ensure the Telehook
Badges are positioned towards the
bottom of the display
Telehook
Badge
100mm
(4”)
Spacer Bush
Top of
Display
Top of
Display
Top of
Display
