Technical drawings
Product information
Package information, single unit
Package information, master pack
Product Code
Size (L x W x H)
Size (L x W x H)
TH-3060-UFL
82cm x 33.2cm x 7cm
(32.3” x 13.1” x 2.8”)
84cm x 35cm x 16cm
(33.1” x 13.8” x 6.3”)
One display up to
35kg (77lbs)
8.6Kg
(18.92lbs)
18Kg
(39.6lbs)
Powder coated
alluminium and steel
881493007352
881493007369
Black
All hardware required for
installation supplied
2
Load capacity
Ship weight
Ship weight
Material
UPC code
UPC code
Colour
Contents
Units per master pack
Atdec mounts are designed, developed and tested in Australia. We manufacture
an extensive range of display and projector mountings for a variety of user types
and situations. While all efforts have been made to ensure the information
in this brochure was correct as of the date of printing, we reserve the right
to change specications without notice. Please refer to the website for our full
range along with the latest details on specications, compatibility and dealer
location. Atdec and Telehook are registered trademarks with all rights reserved.
Copyright July 2012.
®
180°
360°
180°
370mm
(14.57”) 215mm
(8.46”)
Product information
Package information, single unit
Load capacity Material Colour Product Code
Powder coated
alluminium and steel
881493007352
TH-3060-UFL
82cm x 33.2cm x 7cm
(32.3” x 13.1” x 2.8”)
One display up to
35kg (77lbs)
8.6Kg
(18.92lbs)
84cm x 35cm x 16cm
(33.1” x 13.8” x 6.3”)
18Kg
(39.6lbs)
881493007369
Size ( L x W x H) Ship weight UPC code Contents
Package information, master pack
Size ( L x W x H) Ship weight UPC code
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
Atdec mounts are designed, developed and tested in Australia. We manufacture anextensive
range of display and projector mountings for a variety of user types andsituations. While all our
products have been made to ensure the information in this brochure wascorrect as of the date of
printing, we reserve the right to change specifications withoutnotice. Please refer to the website
for our full range along with the latest details onspecifications, compatibility and dealer location.
Atdec and Spacedecare registeredtrademarks with all rights reserved.
Copyright May 2012 V1.0

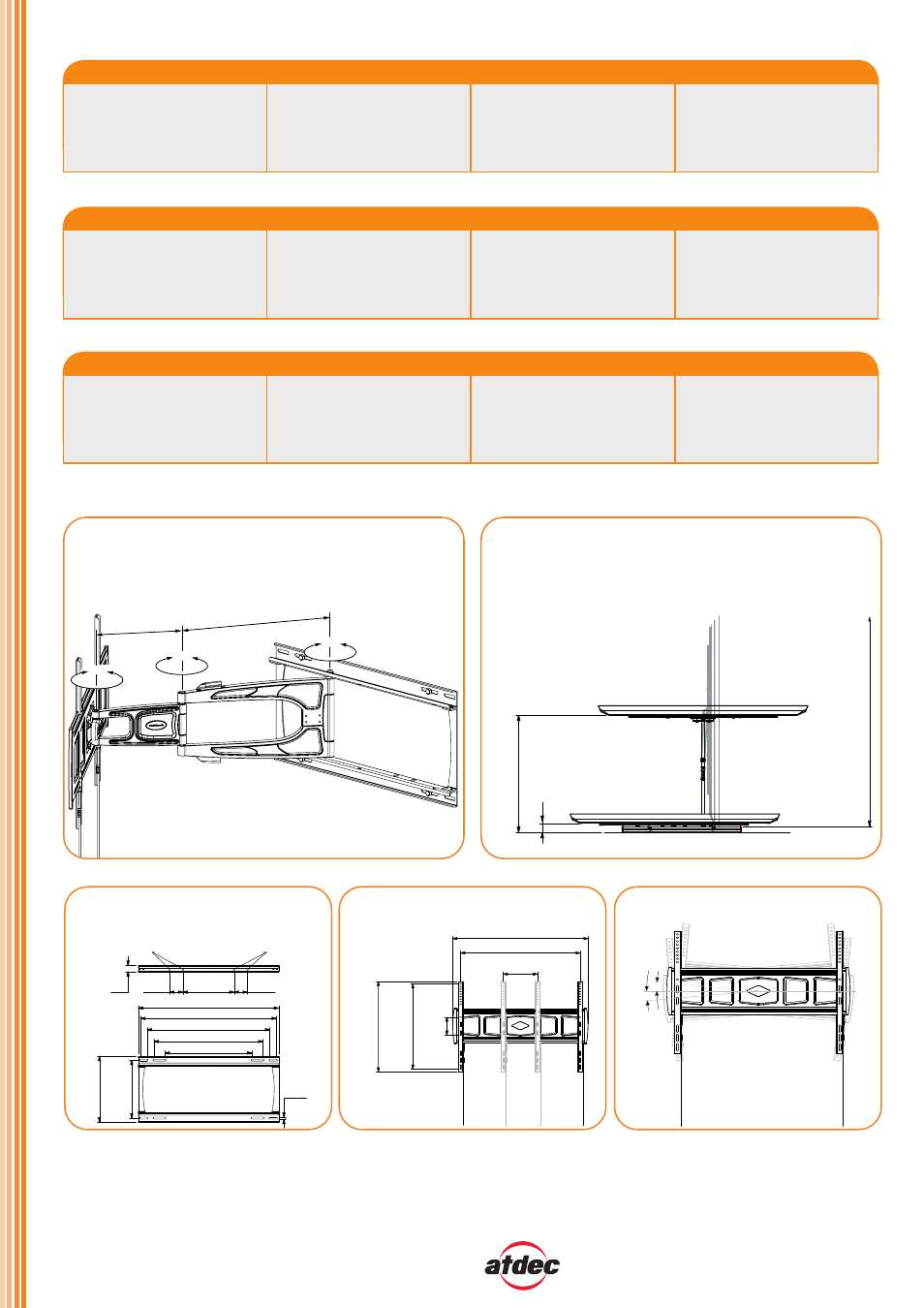

Technical drawings
WALL
390mm (15.35")
490mm (19.29")
550mm (21.65")
610mm (24")
630mm (24.8")
260mm
(10.24")
296mm
(11.65")
8.50mm
(0.33")
28mm
(1.1")
60mm
(2.36")
230mm
(9.05")
60mm
(2.36")
Alternative Arm Fixing Points
700mm (27.56”) max.
794mm (31.25”)
200mm
(7.87”)
min.
500mm
(19.7”)
max.
105mm
(4.13”)
min.
530mm
(20.87”)
° 5
° 5
625mm
(24.6”)
max.
49.5mm
(1.95”)
min.
Max. Display
width at 90°
1117.6mm
(44”)
Black
All mounting hardware included
2
Units per master pack
Arm movement Distance from wall shown in top view
Range of horizontal movement Wall mount
The Wall Bracket can be mounted to either:
Timber Stud Wall or Masonry Wall
Screen mounting compatibility
