Atdec Telehook TH-3260-UFB Installation manual User Manual
Page 2

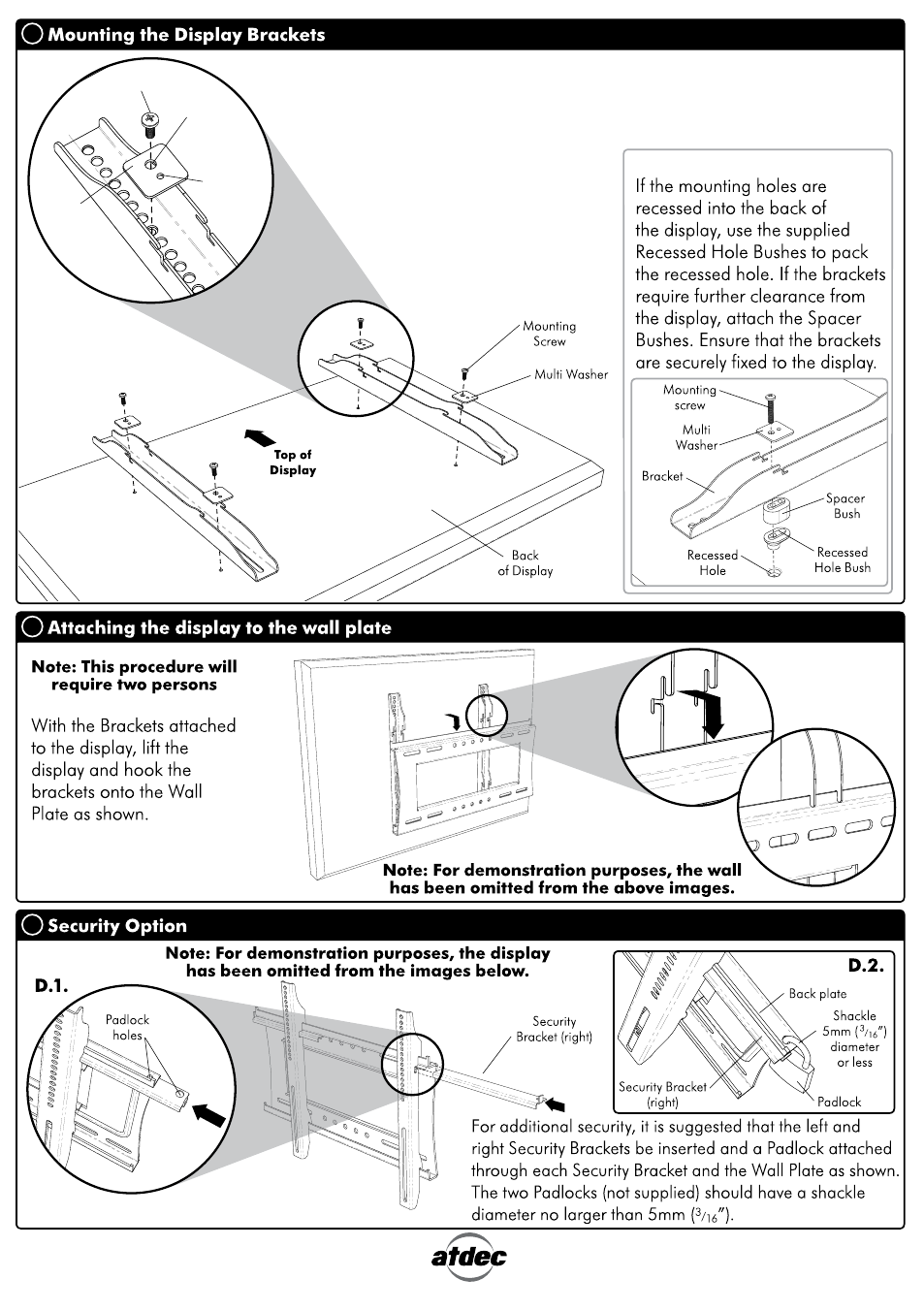

Recessed Mounting holes
B
C
D
due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 06.12.07 ©
Multi
washer
M6 & M8
Screw Hole
M4 & M5
Screw Hole
Mounting
screw
When attaching the Brackets to the
display ensure that both
brackets are vertically aligned.
ensure that the tightest fitting hole in
the multi washer is used
when attaching the mounting
screw to the display.
