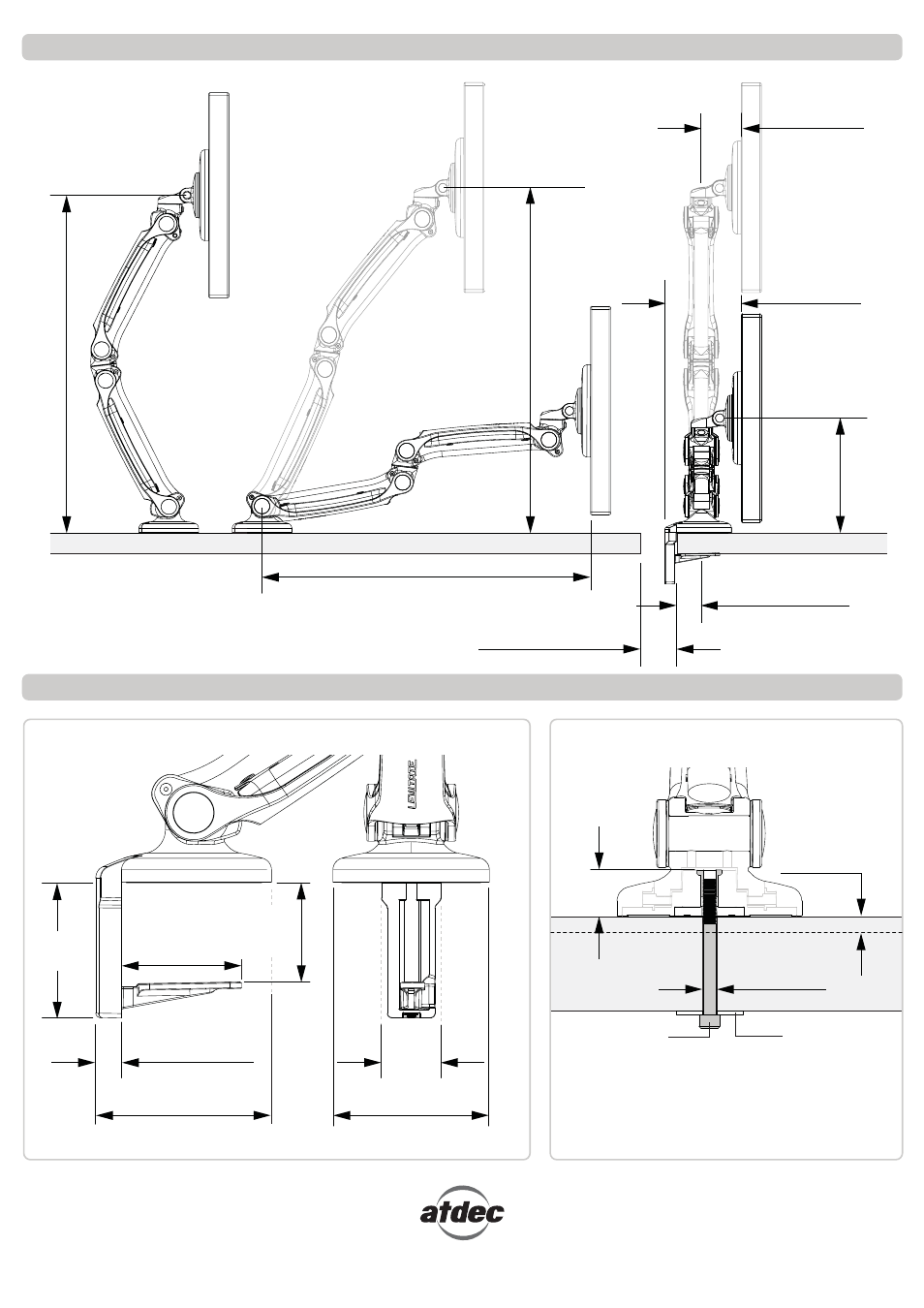

Dimensions

All measurements shown below are based on a 4kg (8.8lb) monitor. Lighter or heavier screens will slightly affect the achievable height/reach.

FULL EXTENSION

Mounting Options

DESK CLAMP

BOLT THROUGH
Section View

Ø104mm (4”)

40mm

(1.58”)

15.25mm (0.60”)

25mm

(1”)

Desk thickness

13mm-43mm

(0.5”-1.7”)

Note: The Bolt Through Fasteners supplied with this
product support desk thicknesses between 14-43mm
(0.5”-1.7”).
M8 bolts can be used to suit desk thicknesses outside
this range. Bolt length=desk thickness+25mm (1”).

Bolt Through

Washer

Ø8mm (0.32”)

drilled hole

Bolt Through

Fastener

116mm (4.57”)

up to

50mm

(2”)

65mm

(2.56”)

557mm (21.92”)

Minimum height

212mm (8.34”)

Maximum reach 554mm (21.81”)

Maximum height

582mm (22.91”)

DESK CLAMP ONLY

Minimum distance between

desks 18mm (0.71”)

DESK CLAMP ONLY

Distance from edge
of desk, 50mm (2”)

Minimum reach

70mm (2.76”)

127mm (5”)

75mm

(3”)

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 19.03.12
