Atdec Telehook TH-3070-UF Installation manual User Manual
Page 2

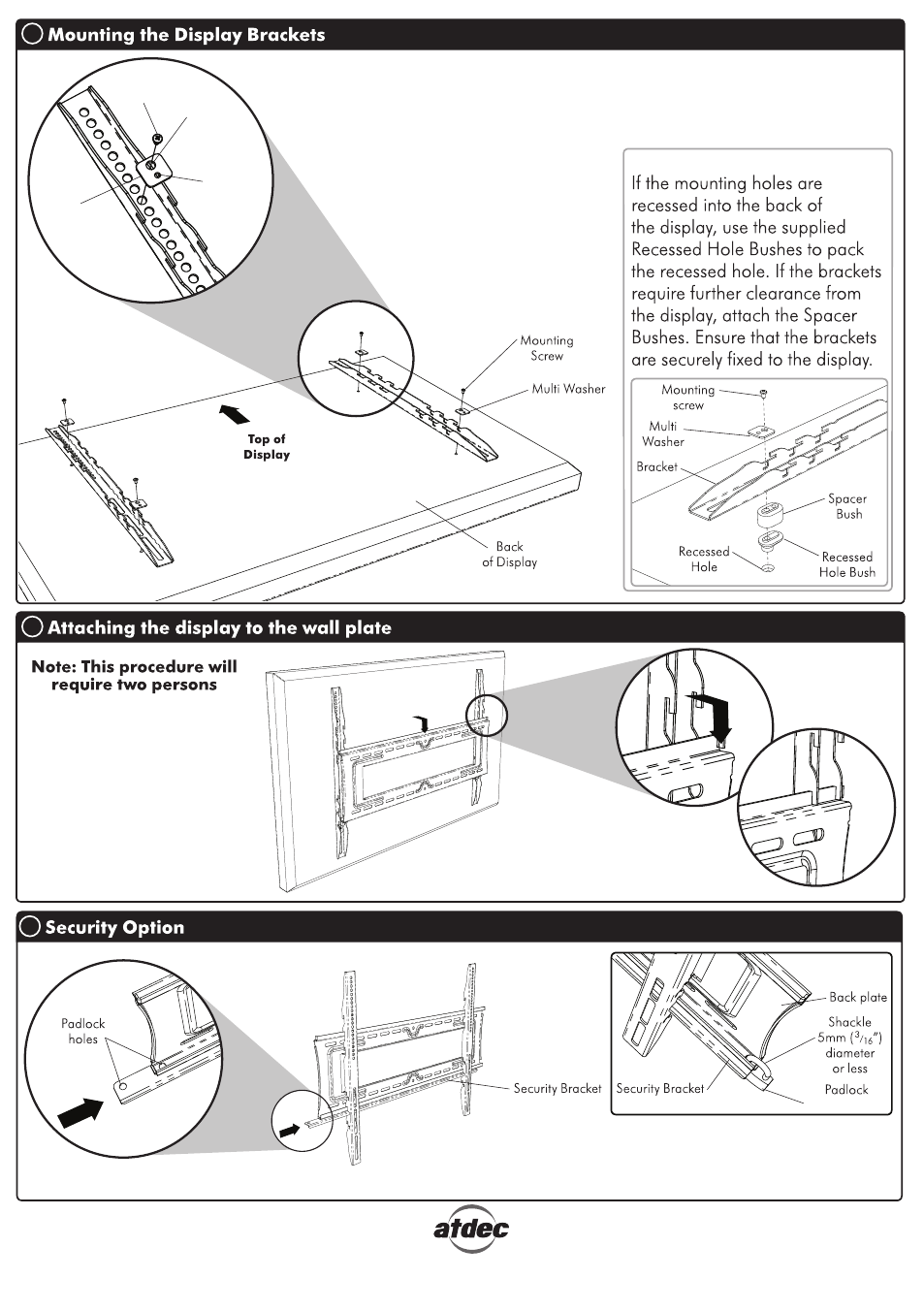

Recessed Mounting Holes
B
C
Multi
Washer
M6 & M8
Screw Hole
M4 & M5
Screw Hole
Mounting
screw
When attaching the Brackets ensure
that both are vertically aligned.
Ensure that the tightest fitting hole
in the multi washer is used when
attaching the mounting screw.
E
For additional security, it is suggested that a Padlock is
attached through the Security Bracket and the Wall Plate
on either side as shown. The Padlock (not supplied) should
have a shackle diameter no larger than 5mm (
3
/
16
”).
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacture reserves the right to alter specifications without notice. Published: 05.11.08©
E.2.
E.1.
(not supplied)
With the Brackets attached
to the display, lift the display
and hook the brackets onto
the Wall Plate as shown.
There are three height
positions to choose from in
50mm (2”) increments.
