Hook Plate
Wall Plate
Note: To access cable ports,
fold out screen tilt supports.
screen tilt support
Cut Release Ties so that they cannot
be seen from front of screen.
Spacer
(optional, used only for
recessed mounting holes)
Mounting Screw
Bracket
Washer
Back of Display
TOP
Hook Plate
Tip: If Hook Plates obstruct mounting
holes, remove and reposition
(as shown below.)
Hook Plate Screw
Use a large flat blade screwdriver
to remove/replace the two Hook
Plate screws.

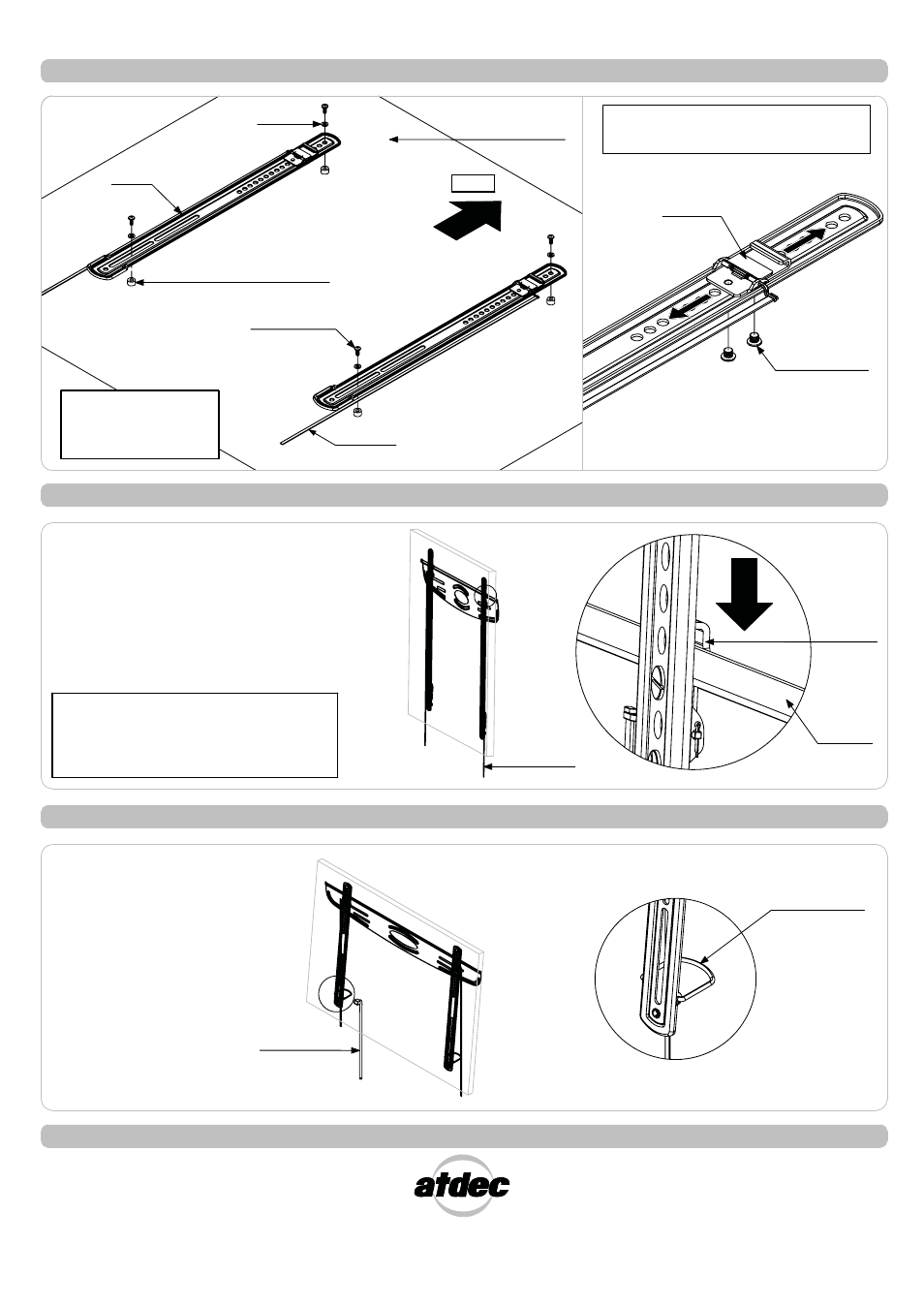

Step 3. Attaching Brackets to Display
No portion of this document or any artwork contained herein should be reproduced in anyway without the express written consent Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without noticed. Published 14.10.10 ©
With the Brackets attached to the Display,
lower the Hook Plates onto the Wall plate.
Listen for "CLICK" to ensure the catch has
engaged.
Slide Display to desired position.
Step 4. Attaching/Detaching Display to Wall Plate (2 people required)
Step 5. Cable Management
Installation Complete
Detaching Display from Wall Plate:
To detach Display from wall plate, pull and
hold Release Ties to disengage locking
mechanism. Then lift the Display to unhook
from the wall plate.
Fold Tilt Supports back once all
cables have been installed.
Power Cable
Release Tie
Note: Ensure that both
Release Ties are closest
to the outside edge of
the Display.
Release Tie
