D Mount the Display
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 06.09.12 ©
For Displays with 75mm x 75mm
(3” x 3”) mounting hole patterns
M4 Display Mounting Screws
Step 1: Connect cables
Step 2: Insert
Secondary Arm
Cable Cover* Step 3: Insert
Primary Arm
Cable Cover*
NOTE: Leave enough slack in the
cables to allow for movement
E Cable Management -
Ensure arm is fully extended before connecting cables
NOTE: If Visidec Focus
Articulated Arm is to be used
in a multi-user environment,
use the supplied cable clip
to secure the display’s
cables to the pole.
Cable
Clip

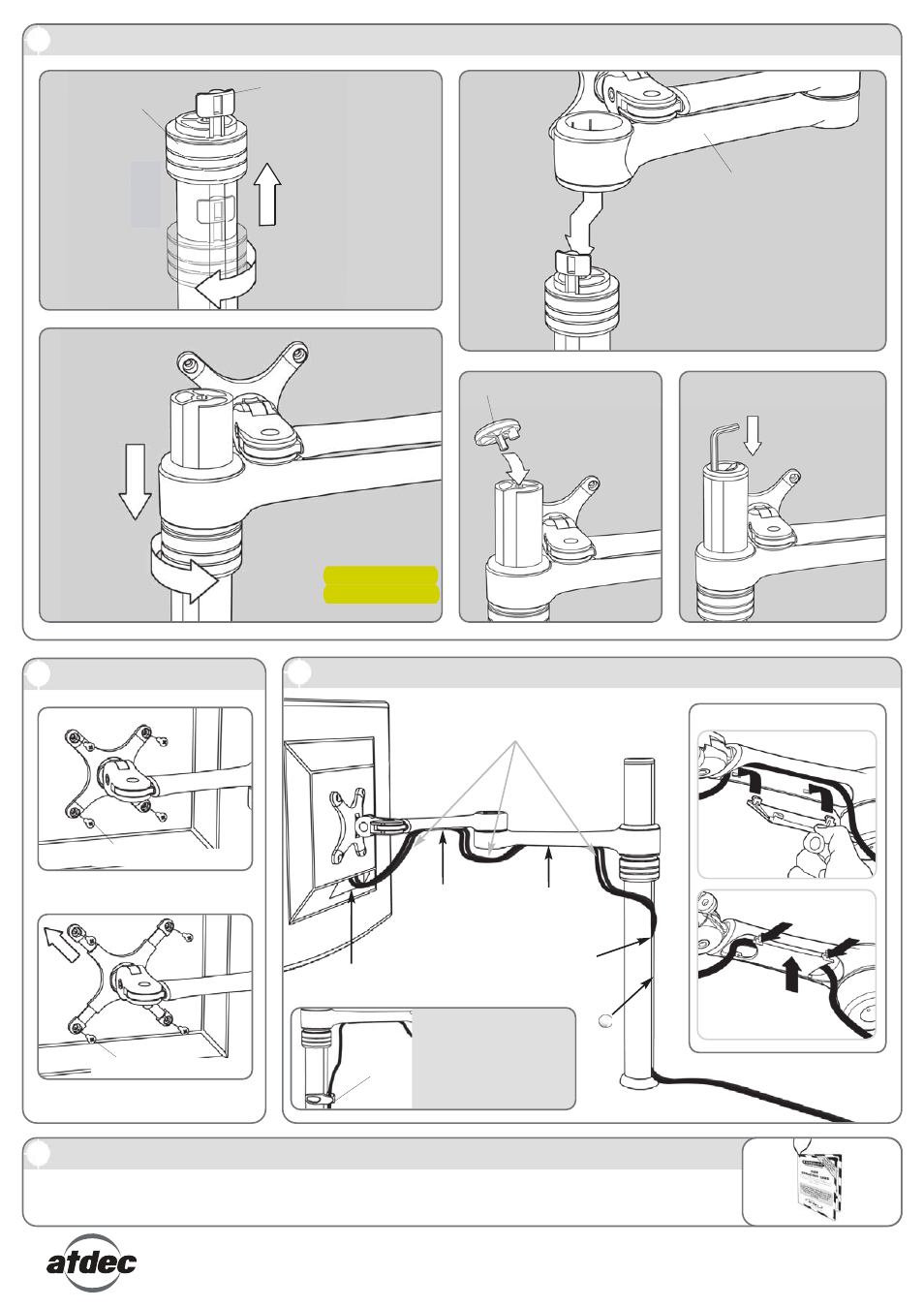

C Assemble the Arm Assembly onto the Pole Assembly
Step 3:
Slip the Arm Assembly over the
Handgrip Tab and then onto
the Pole
Step 4:
Slide the Arm
Assembly and
the Handgrip
down the
Pole
Step 5:
Lock the
Handgrip
Step 6:
Insert the Pole
Top Cap into
the top of the
Pole
Step 7:
Insert the 5mm
Allen Key into
the slot in
the Pole
Top Cap
Pole Top Cap
Handgrip Tab
Handgrip
For Displays with 100mm x 100mm
(4” x 4”) mounting hole patterns
M4 Display Mounting Screws
F Leave the “User Operating Card” with Visidec Focus Articulated Arm
*To insert Cable Covers:
Insert tabs
Push in...
...and then up
Arm Assembly
Step 4: Insert cables into
slot, using cable balls to hold
them in place
(single user only)
Cable
Balls (x2)
Leave the “User Operating Card” secured to the Visidec Focus Articulated Arm for the user’s reference.
Step 1:
Unlock the
handgrip
Step 2:
Lift the handgrip to
the top of the pole
so that the Handgrip
Tab protrudes
Note: DO NOT
OVER TIGHTEN
