Sav4/9/18/182/36D - 9 -
Installation Instructions for 3-wire Line Cord:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction. Product is intended for indoor use only.
The line cord option should be used when the equipment needs to be removed for maintenance or servicing.
Do not attach the 3-wire line cord to the building surface.

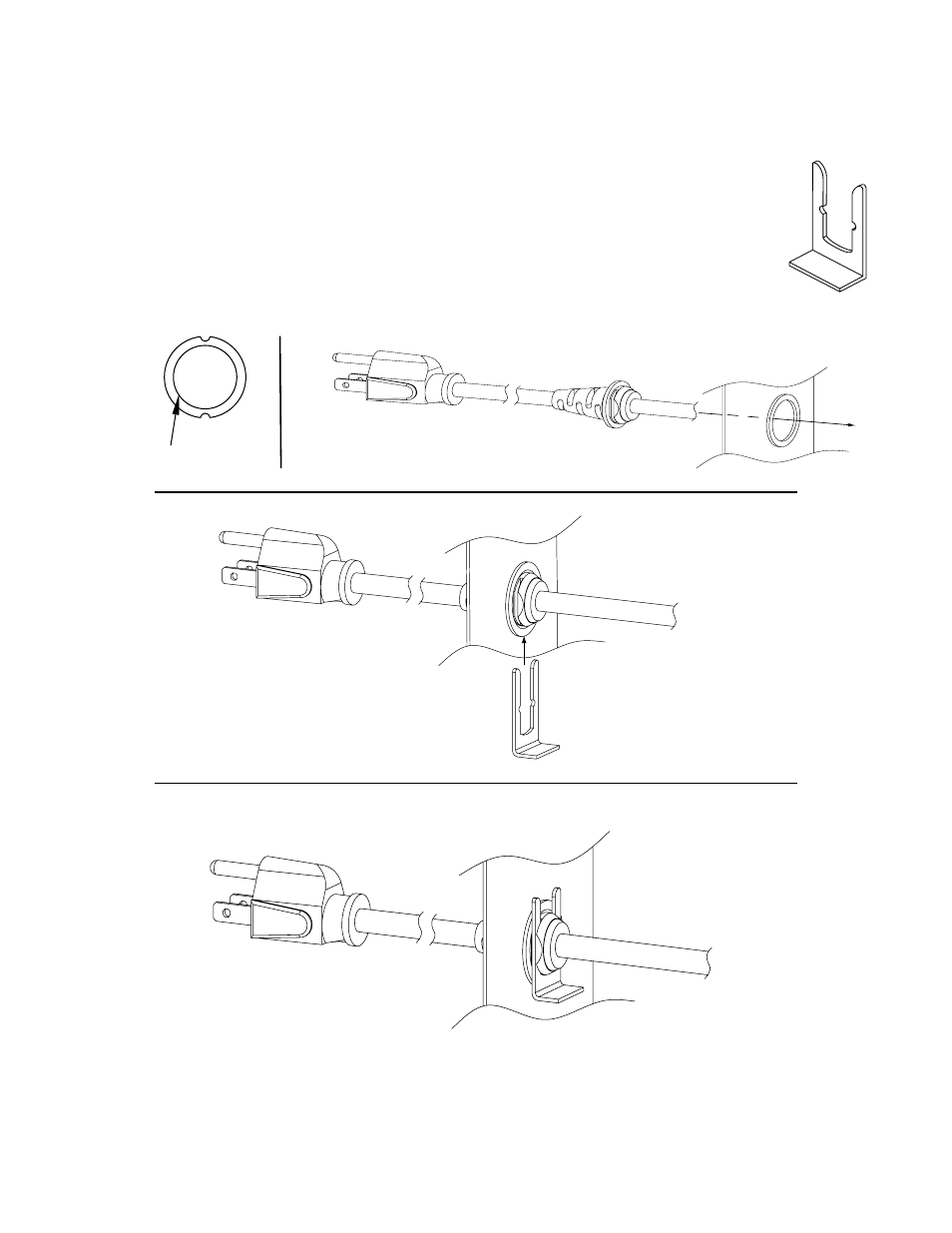

1. Remove 7/8” knockout by applying pressure from the inside of enclosure (Fig. 7).
Note: Keep power-limited wiring separate from non power-limited. Use minimum 0.25” spacing.
Please refer to the SAV DC Power Supplies Installation Guide’s wiring diagram.
2. Insert AC line cord with integral strain relief through the desired enclosure knockout (Fig. 8).
3. Secure AC line cord by sliding hog ring into strain relief slot inside the enclosure (Figs. 9 and 10).
Hog
Ring
7/8” Knockout
Fig. 7 Fig. 8
Fig. 9
Fig. 10
