Altronix Sav9D Installation Instructions User Manual

Page 8

- 8 -

Sav4/9/18/182/36D

12VDC power outputs

(For wiring utilize

knockouts on the

left hand side

of enclosure)

Class 2 not wet, Class 3 wet,

wiring to be used.

12VDC power outputs

(For wiring utilize knockouts on

the right hand side of enclosure)

Class 2 not wet, Class 3 wet,

wiring to be used.

Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.

115VAC, 60Hz / 230VAC, 50Hz

power mains non power-limited Class 1

White Lead

Black Lead

Green Lead

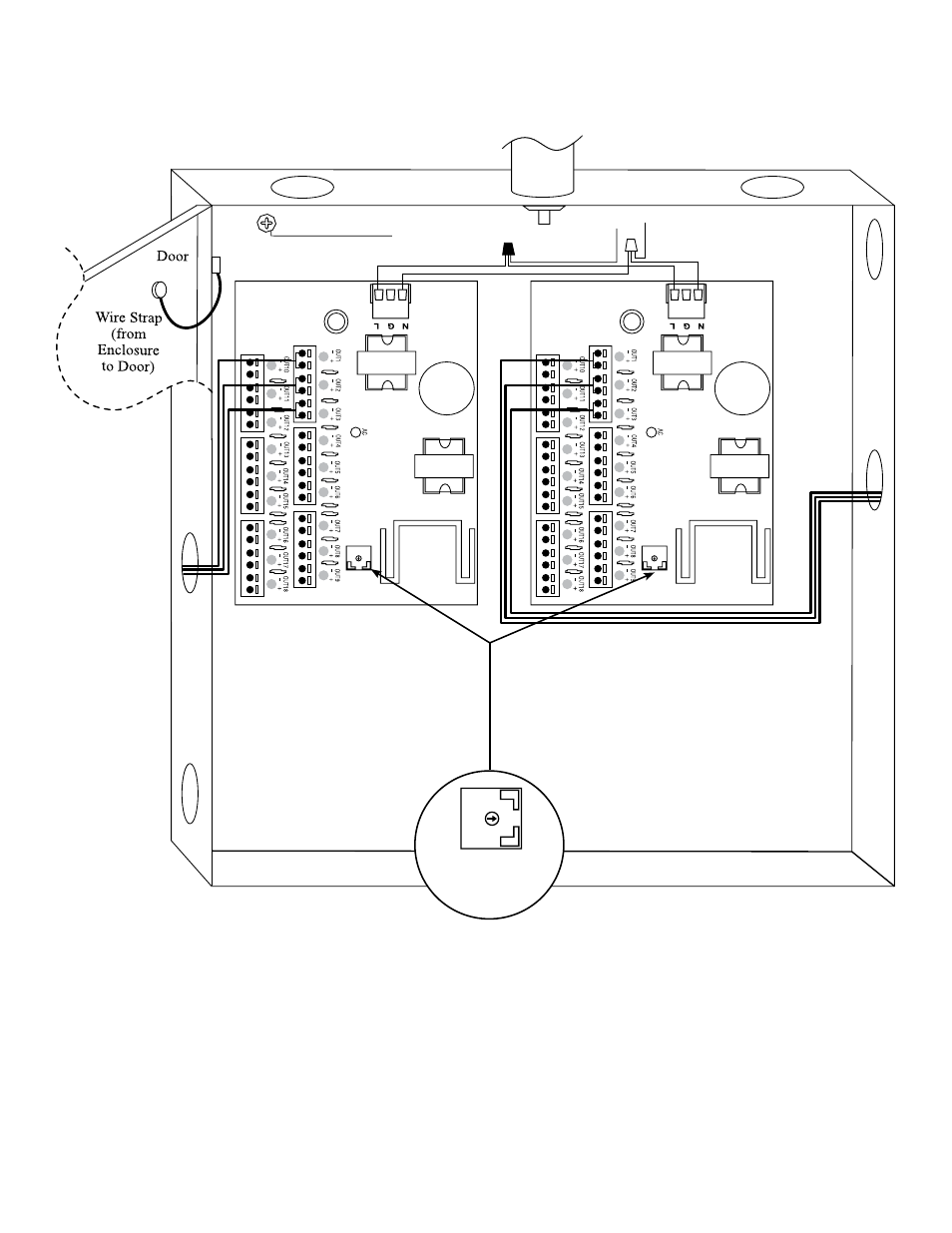

Sav36D

Fig. 6

Fig. 6a

Voltage

Adjustment
