- 4 - Sav4/9/18/182/36D
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated DANGEROUS VOLTAGE within the products enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.
Green
Lead
12VDC power outputs
(For wiring utilize knockouts on the
right hand side of enclosure)
Class 2 not wet, Class 3 wet,
wiring to be used.
115VAC, 60Hz/
230VAC, 50Hz
power mains
non power-
limited
Class 1
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
Door
Wire Strap
(from
Enclosure
to Door)

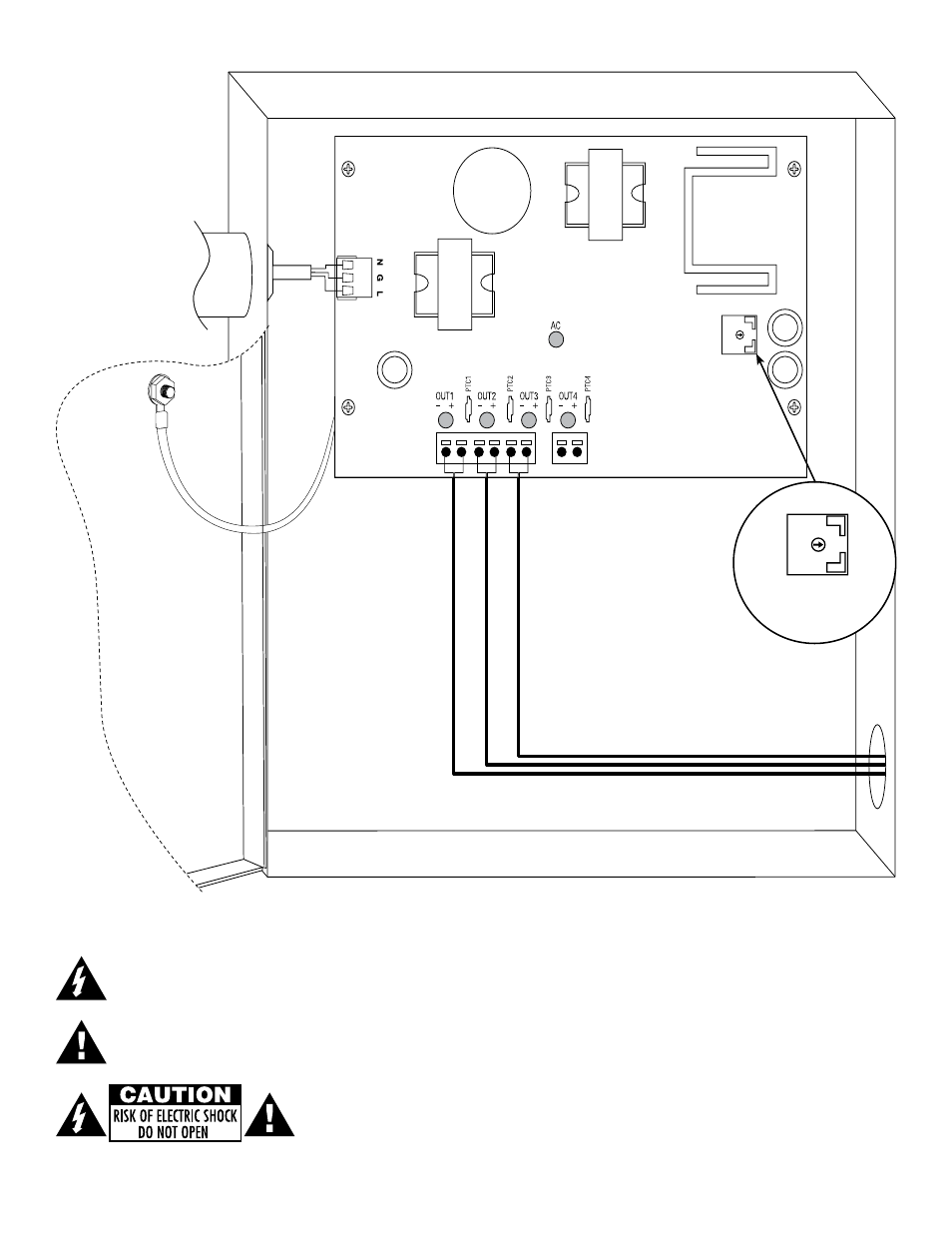

Sav4D
Fig. 2
Fig. 2a
Voltage
Adjustment
