Altronix Sav9D Installation Instructions User Manual

Page 5

Sav4/9/18/182/36D

- 5 -

Green

Lead

115VAC, 60Hz/

230VAC, 50Hz

power mains

non power-

limited

Class 1

Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.

Door

Wire Strap

(from

Enclosure

to Door)

12VDC power outputs

(For wiring utilize knockouts on the

right hand side of enclosure)

Class 2 not wet, Class 3 wet,

wiring to be used.

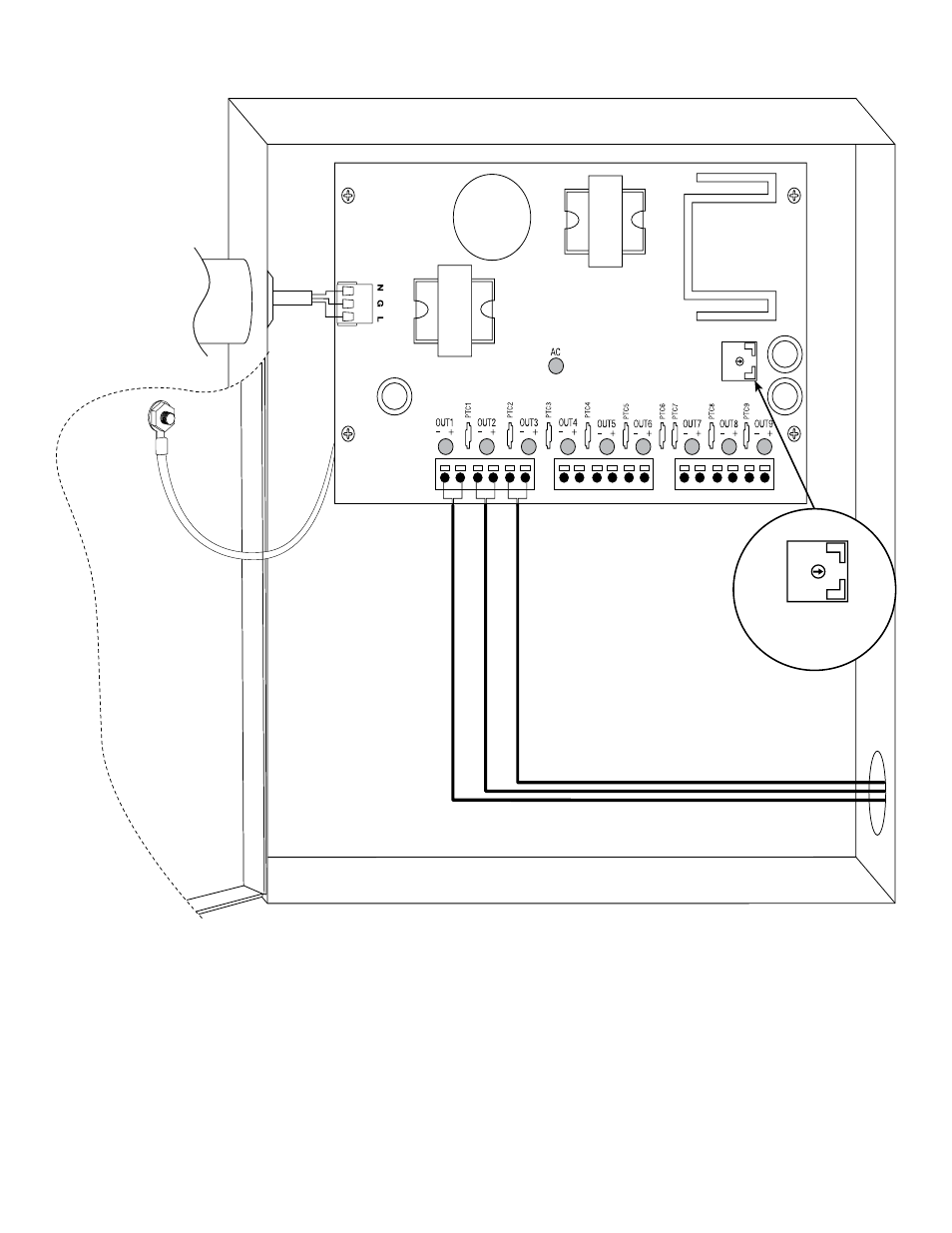

Sav9D

Fig. 3

Fig. 3a

Voltage

Adjustment
