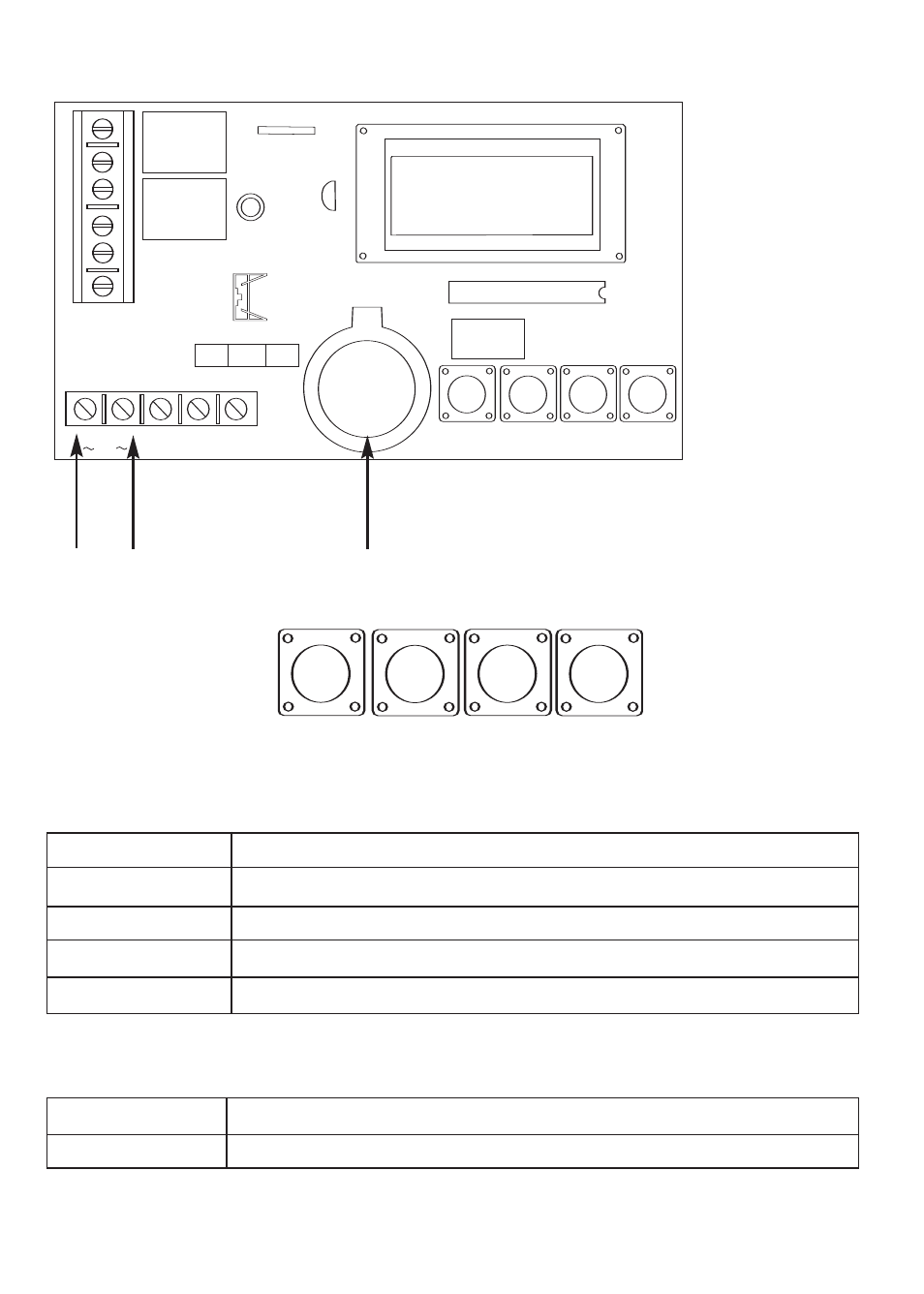

Push Button Layout:
Push Button Description Table:
Push Button Function/Description
SET Scrolls thru program fields. Escapes out of existing programming.
ENTER Accepts programmed data.
UP Scrolls up through data selections.
DWN Scrolls down through data selections.
UP and DOWN keys can be used to select data entries. After scrolling to the correct entry,
depress
ENTER to accept.
SW2 clip SW Selects tandem or individual relay operation.
SW3 slide SW Selects channel to be programmed.
SET ENTER UP DWN FM + BAT ---
12VDC
+ DC ---
AC
SW2
SW3
NO C NC NO C NC
RELAY ON
SU 01:01
3V Lithium Battery Socket
(Altronix part # LB2032)
12-24 Volt
AC/DC input
SET ENTER UP DWN
- 3 -
Fig. 1
