- 10 - Maximal11/Maximal33/Maximal55/Maximal77/Maximal75 Access Power Controllers (Fused)
+ DC
–
BAT FAIL
NC C NO NC C NO
+ BA
T
---
AC FAIL
Power Supply Board
L G N
+
DC
---
BAT FAIL
NC C NO NC C NO
+ BA
T
---
AC FAIL
Power Supply Board
L G N
115VAC Input
60 Hz.
Optional
12VDC Battery**
Optional
12VDC Battery**
Wire
Strap
(from
Enclosure
to Door)
Tamper Switch
Ground Lug Ground
Line Neutral
Line Neutral
Optional
12VDC Battery*
*12VDC operation: For 12VDC operation
only a single battery is needed.
Connect red battery lead
to terminal marked
[+ BAT] and to the
[positive (+)] terminal
of the battery. Connect
black battery lead to
terminal marked [BAT -]
and to the [negative (-)]
terminal of the battery.
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
2.5A 250V
**24VDC operation: Connect two (2) 12VDC
batteries in series

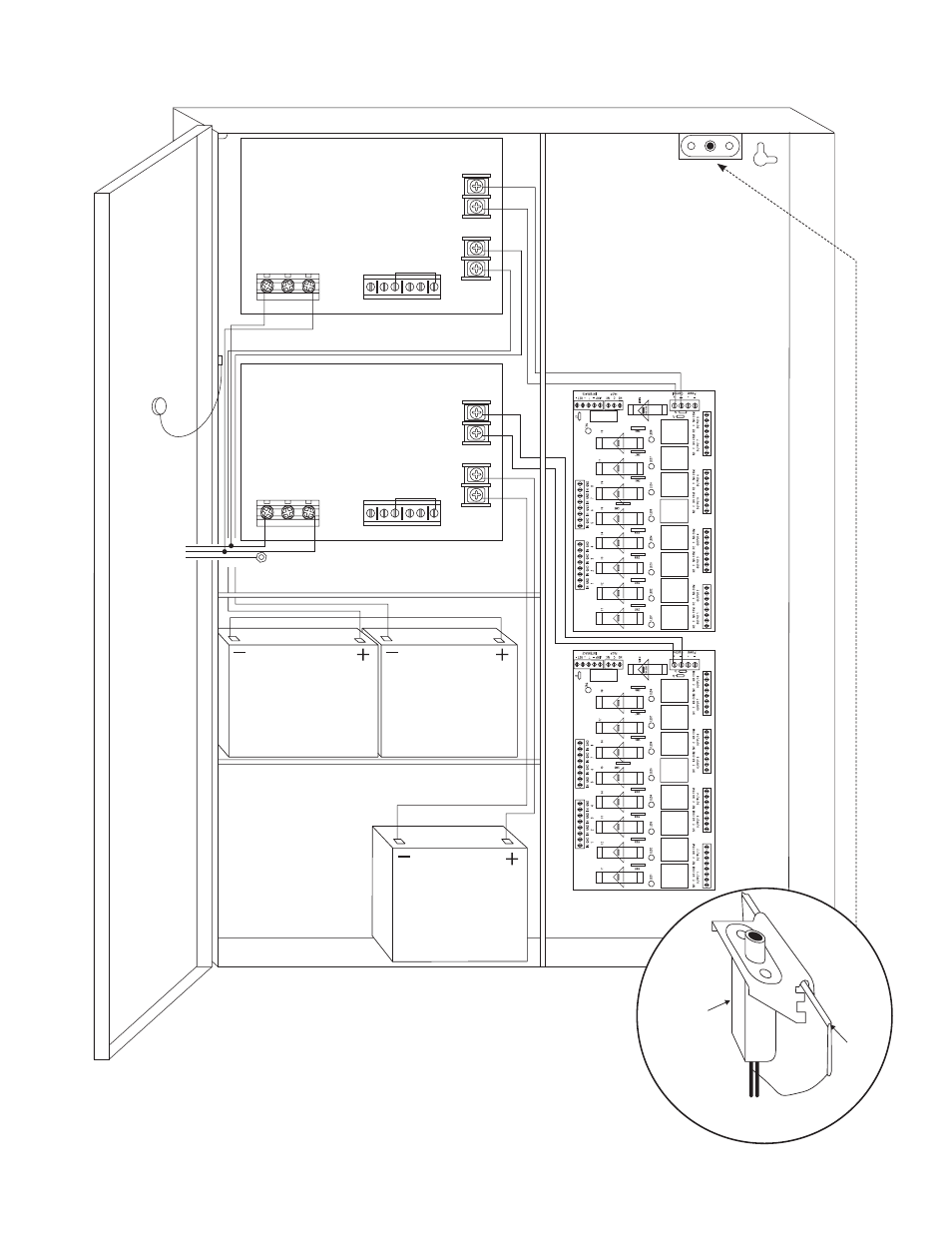

Fig. 3
Maximal11
Maximal33
Maximal55
Fig. 3a
Edge of
Enclosure
to Access Control Panel
or U.L. Listed
Reporting Device
Enclosure
Sentrol
model # 3012
Tamper Switch
or equivalent
(Not Included)
