VEGACOM 557 VEGA ASCII 23

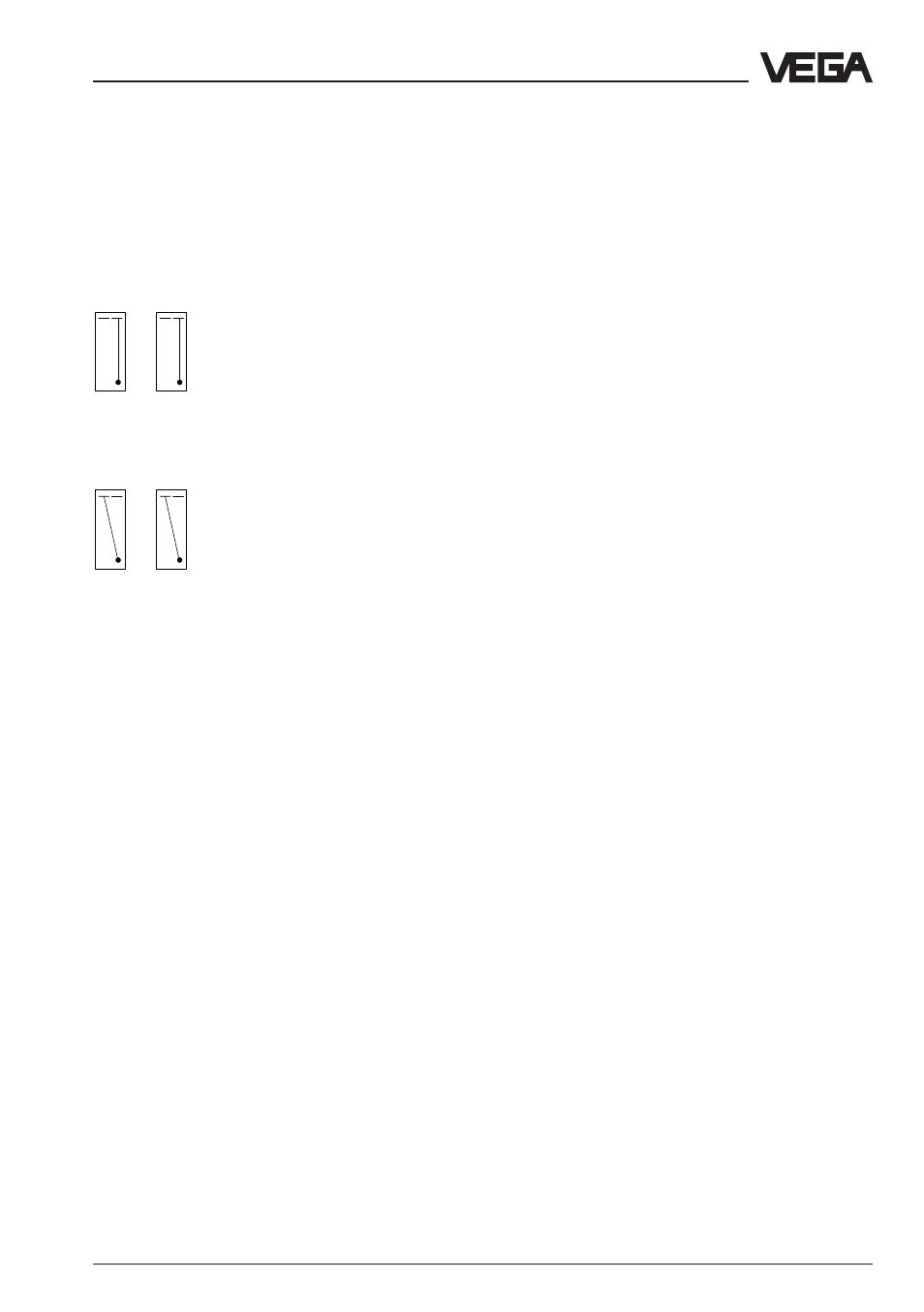

Switch settings on VEGACOM 557
= Activation of the TTY-interface
= Activation of the RS 232-interface
(default)
Note:
L = left position, R = right position
Allocation of the switch positions (hook switch on the
additional print)
Depending on the requirements, the VEGA
ASCII interface can be used as TTY interface
but also as RS 232 interface (using the hook
switches). Illustration 2.15 shows the respec-
tive switch positions. As a rule, VEGACOM
557 is delivered with RS 232 activated.
L R L R
1 2
L R L R
1 2
