Figure 23

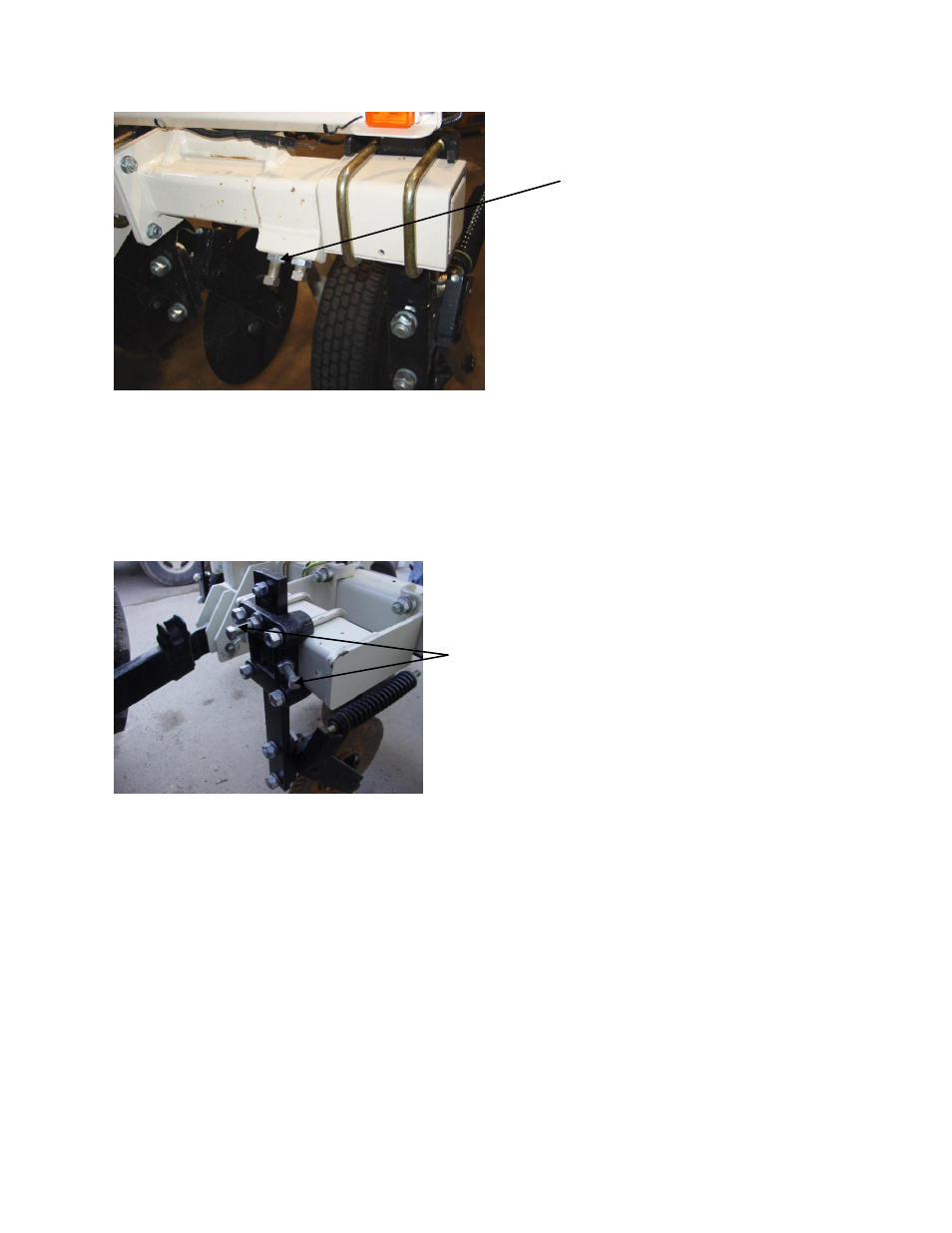

Coulter: Pull MSP forward and check depth of coulter and shank. Coulter should be
cutting residue ahead of shank, but not penetrating deeper than the shank. Adjust
height of coulter by loosening top and side jam nuts and set bolts, and re-positioning
coulter. Do not remove top bolt or coulter may drop out of holder.

Figure 24

set screws and jam
nuts

Coulter adjustment bolts:
jam nuts and set bolts
