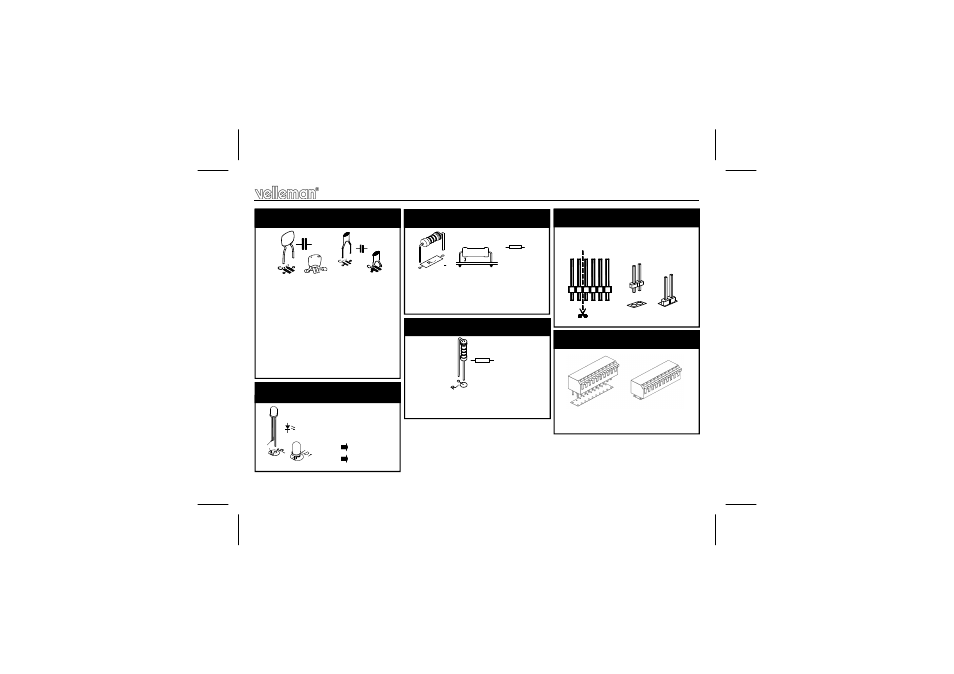

7







C1 : 15pF

(15)



C2 : 15pF

(15)



C3 : 10nF

(103)



C4 : 10nF

(103)



C5 : 100nF

(104)



C6 : 100nF

(104)



C7 : 100nF

(104)



C8 : 100nF

(104)



C9 : 100nF

(104)

6. Capacitors.

c...

C...



LD1 : 3mm Green



LD2 : 3mm Red

LD1 Power

LD2 Error

7. LED’s. Watch the polarity !

COLOR= 2...5

LD...

CATHODE






R23 : 22K (2 - 2 - 3 - B)

Do not mount R24 yet !

8. 1W Resistor.

R...

2 m m




R25 : 1M

(1 - 0 - 5 - B)



R26 : 1M

(1 - 0 - 5 - B)

9. Vertical resistors

R...



JP2 : 2p

(mode selection)

10. Pin header

Construction





SW1 : DMX address selection

11. Piano DIP switch
