Velleman projects K8039 Assembly instructions User Manual
Page 15

15

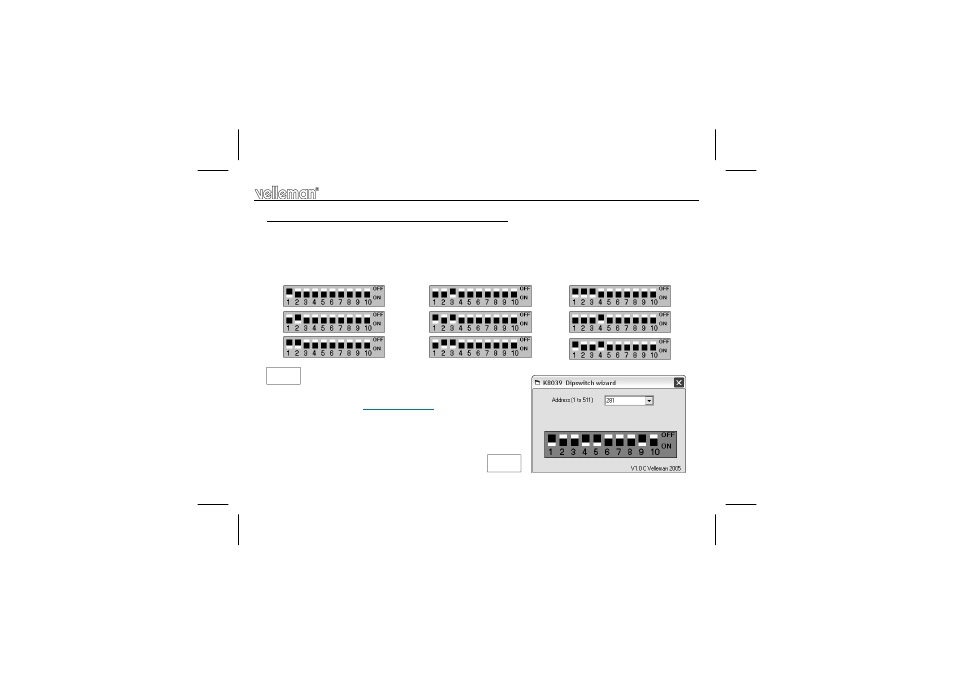

3. Set up the DMX channel to which the K8039 has to react:
Set up the DMX channel or “DMX address” by means of the DIPSWITCH, SW1. You can set up the DMX
channel between 1 and 511, channel 0 is not used. The switches from 1 to 9 generate a binary digit repre-
senting the DMX channel. Switch 1 is the LSB, switch 9 is the MSB. Only modify the DMX channel when
the K8039 is not live. Make sure to turn the kit live after every modification.
Please go to our website (
www.velleman.be
) and consult the
handy graphical help program showing the position of the
switches. Setting up will become easy!
1 4
2 5
3 6
7
8
9
Connection & use
Fig. 4.0
Fig. 5.0
