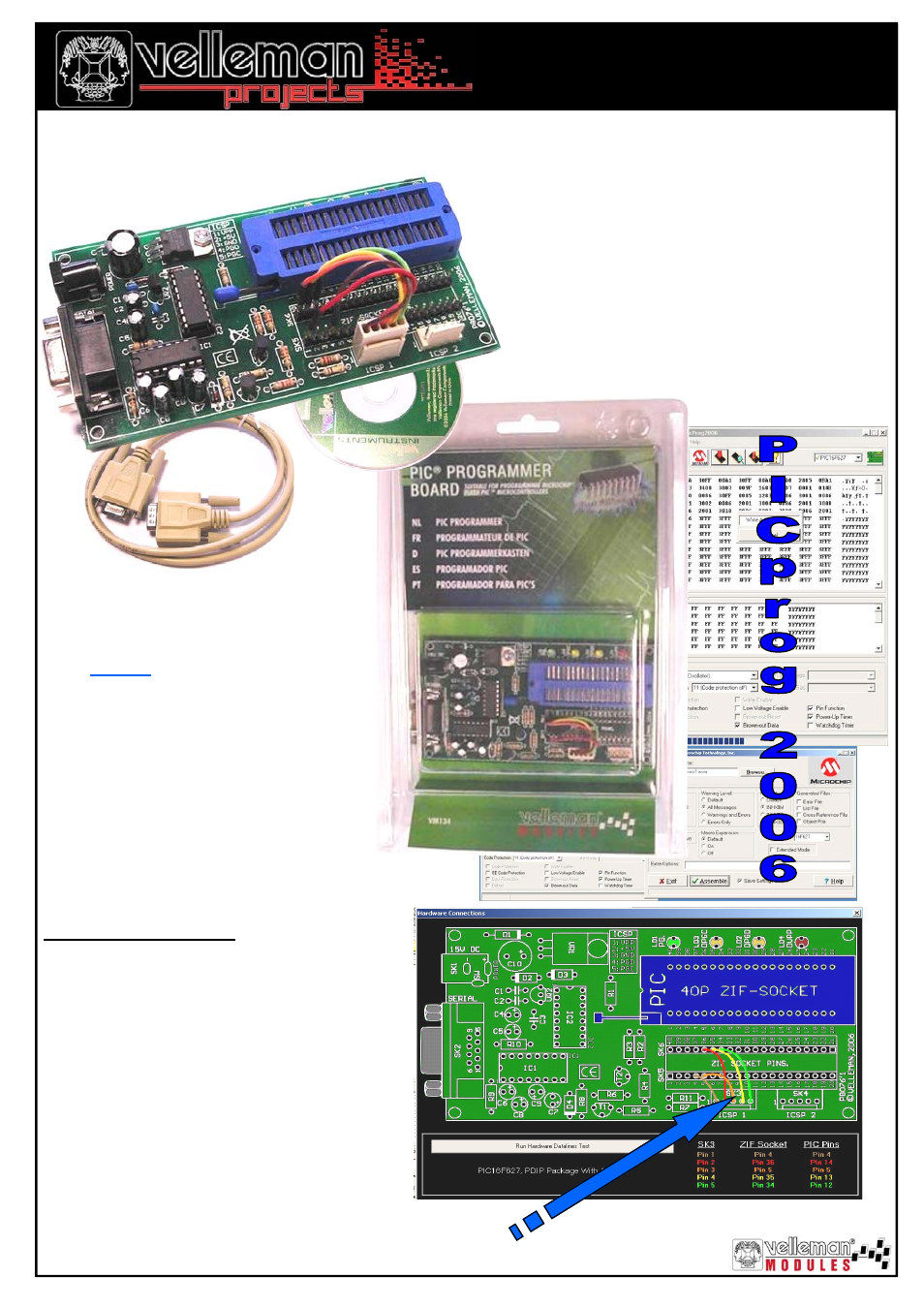

Velleman projects VM134 Datasheet User Manual
Programmer board, New p roduc t info, Vm134

New P
roduc
t info
Jan 2007
PIC
TM
PROGRAMMER BOARD
VM134
Specifications:
•
Power supply: 15Vdc, / 300mA, adapter
(Ex.
PS1508
)
•
Dimensions: 132x65x20mm
•
Serial port connector: 9 p. SUBD.
•
On board “In Circuit Serial Programming”
connector.
•
Minimum system requirements:
- IBM Compatible PC, Pentium or better
- Windows™ 98/ME/NT/2000/XP
- CDROM drive
- Free serial RS232 port required *
* USB to serial converter cables have very
limited compatibility and are not supported.
(*) PIC and Microchip are registered trade marks
Currently supported controllers
(check web site for updates)
PIC10F200
PIC12C508A
PIC12CE518
PIC16F;
54,84A, 27, 627A, 628, 628A, 630, 648A, 676,
785, 870, 871, 872, 873, 873A, 874, 874A, 876,
876A, 877, 877A.
PIC18F;
1220, 1320, 2220, 2320, 4220, 4320, 2221, 2321,
2410, 2420, 2455, 2480, 2510, 2515, 2520, 2525,
2550, 2580, 2585, 2610, 2620, 2680, 4221, 4321,
4410, 4420, 4455, 4480, 4510, 4515, 4520, 4525,
4550, 4580, 4585, 4610, 4620, 4680.
Serial cable
included
EASY DEVICE SELECTION USING PATCH JUMPERS
This board can program a wide range of Micro-
chip® PIC™ microcontrollers*.
Regularly updated device list, through our web
site.
Onboard configurable 40 pin. ZIF socket!
Easy to use programming PICprog2006™
software included.
