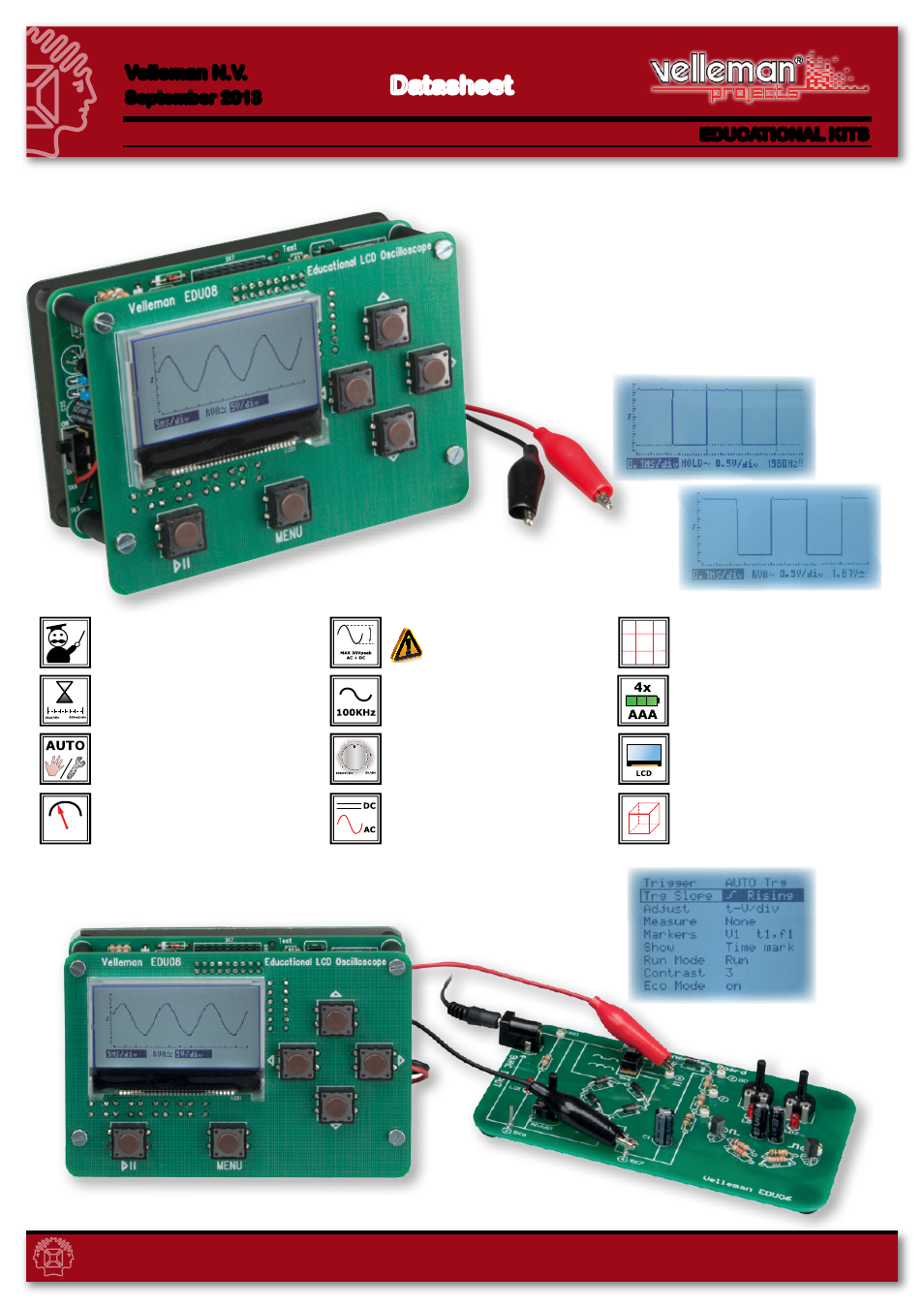

Velleman projects EDU08 Datasheet User Manual
Educational lcd oscilloscope, Datasheet, Component : edu08

EDUCATIONAL KITS
Velleman
®
NV, Legen Heirweg 33 - Gavere (Belgium)
Velleman.eu - Vellemanprojects.com - Velbus.eu
Build your own oscilloscope and learn how to visualize signals. See the
signals you learn about in real life!
Despite the low cost, this oscilloscope has a lot of features found only on
expensive units like signal markers, frequency, dB, true RMS readouts,...
A powerful auto-setup function will get you going in a snap!
Use the EDU06
oscilloscope tutor kit to
explore the functions of your EDU08 scope.
Datasheet
Educational LCD oscilloscope
page 1 of 1
Component : EDU08
September 2013
Velleman N.V.
Menu
maximum input voltage:
30 Vpeak (AC + DC)
Maximum sample rate: 1MS/s for
repetitive signals. Measurements can
be performed up to: 100kHz
timebase range: in 15 steps,
10µs/division to 500ms/division
dimensions: 80 x 115 x 40 mm /
3.14 x 4.52 x 1.57”
full auto set up for: Volt/div and
time/div (or manual)
input sensitivity range: in 6 steps,
100mV/division to 5V/division
Educational
input coupling: DC and AC
LED backlight LCD
Time and voltage markers readout
readouts: DC, AC+DC, true RMS,
dBm, Vpp, min. & max.
battery operated: 4 x AAA batteries
(max. 100mA)
