Wiring Harness Installation
1. Plug the Power Input connector side of Dana's Tire
Maintenance System harness into the 5 pin Packard
connector coming from the J560 interface. See illus-
tration below.
2. Plug the cable from the ABS wire harness into the 5-
pin Packard ABS connector on the Tire Maintenance
System harness.
3. Route the harness to connect to the ECU, Manifold,
and Pressure Sensor located on the maintenance
controller assembly.
4. Mount the diagnostic connector to the side of the
trailer, typically in front of the tires. For slider appli-
cations, make sure to allow for adequate movement
of the slider.
5. Mount the lamp on the front corner or side of the
trailer within view of the operators side view mirror.
On applications with tractors utilizing large wind fair-
ings, locating the lamp near the left rear wheels (near
the ABS warning lamp) may be preferred. Connect
one side of the lamp to ground.
6. Route the lamp power wire (16 AWG minimum) and
connect to the 0.156" female bullet connector of the
Tire Maintenance System harness.
7. Secure harness as required.
Note: For pre-ABS equipped trailer retrofits, a power harness
is also available. When using this harness, cut the cable
length as required and connect to the vehicle power at
the SAE J560 connector.

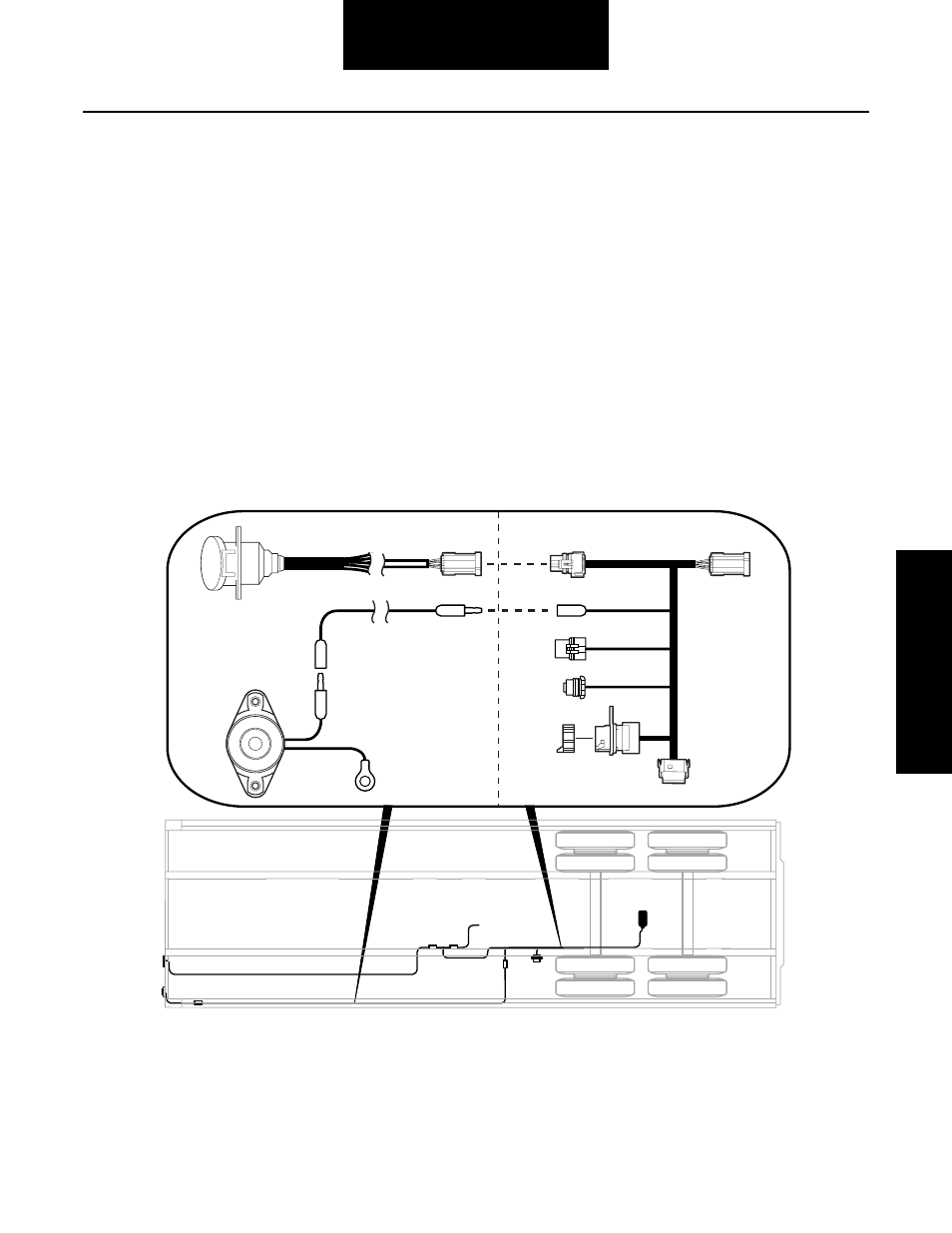

To ABS
5 Pin
Packard
ECU
1587
Diagnostic
Warning Lamp
Power Input
Warning
Lamp
J560
Male
Bullet
Male Bullet
5 Pin
Packard
Provided
by Dana
Provided
by Trailer
Manufacturer
To
ABS
Valve
Pressure
Sensor
218UX016
