Axle hose installation, Installation – Spicer TIMS (Tire Inflation and Monitor System) for Trailers Installation Guide User Manual
Page 14
11
Installation
Axle Hose Installation
1.
In the left 1/4" pipe hole located on the top of the axle
tube, route the small covered end of the metal
braided hose into the axle.
Note: Make sure that the braided hose heads toward the spin-
dle end.
2.
Making sure that the hose is going toward the cor-
rect wheel end, continue feeding the metallic covered
hose into the trailer axle until the small end of the
hose exits the spindle end.
3.
Thread the large adapter end of the axle hose assem-
bly into the axle and tighten to 20 lbs. ft. (27.1 N•m).
4.
Remove protective coverings from end of the axle
hose assembly and blow air through it to remove any
debris.
5.
Repeat steps 1 through 4 for the opposite side of the
axle.

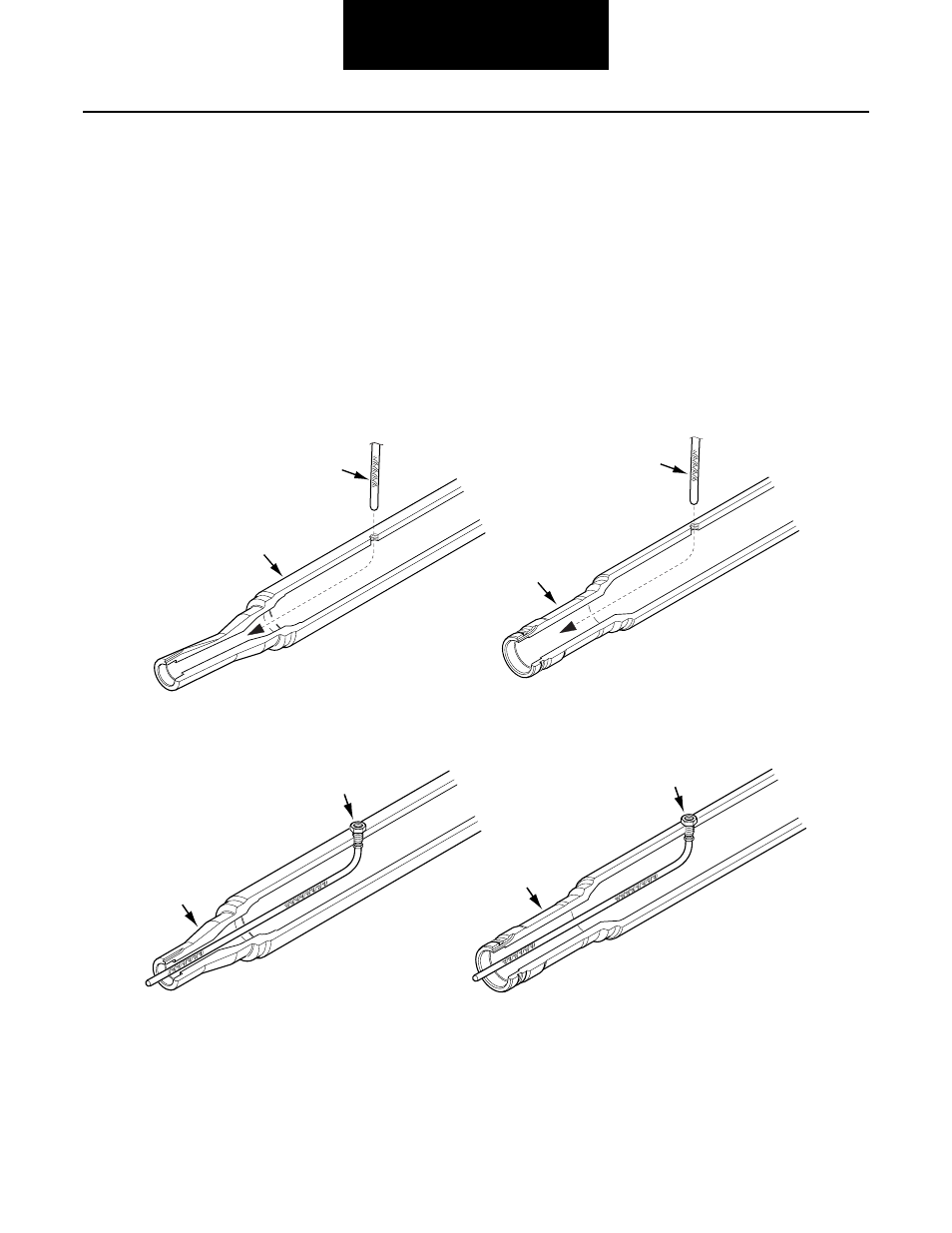

Hose Routing in Axle
OR
Route
Braided Hose
Into Axle
Route
Braided Hose
Into Axle
D22-Style
Spindle
P22-Style
Spindle
218UX009
OR
Thread Adapter
Into Axle
Thread Adapter
Into Axle
D22-Style
Spindle
P22-Style
Spindle
218UX010
