Spindle plug installation, Installation – Spicer TIMS (Tire Inflation and Monitor System) for Trailers Installation Guide User Manual
Page 15
12
Installation
Installation
Spindle Plug Installation
1.
Route the end of the left axle hose assembly through
the center of the left spindle plug assembly.
2.
With the breather hole of the spindle plug assembly
located in the 12 o’clock position, place the plug
assembly at the spindle end.
3.
Route the braided hose assembly through the slot in
the end of the plug driver and press the plug into the
spindle until the driver bottoms on the end of the
spindle.
Note: The driver regulates the correct installation depth.
4.
Repeat steps 1 through 3 for the right side of the
axle.

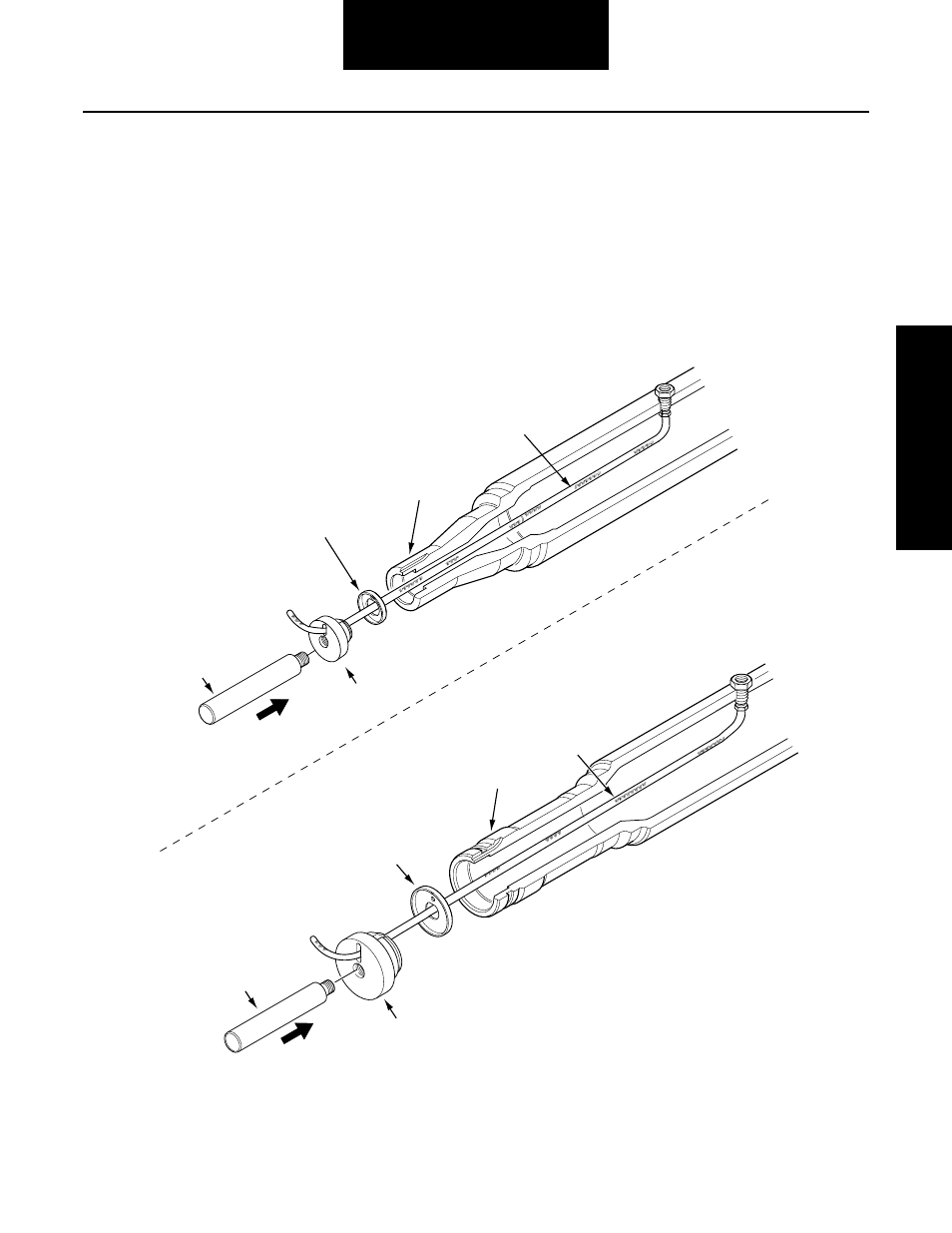

D22 Spindle
P22 Spindle
D22-Style
Spindle
Braided
Hose
Braided
Hose
Spindle Plug
with Small Hole and "Flat"
at 12 O'Clock Position
Plug
Driver Handle
Plug
Driver
Plug
Driver
Plug
Driver Handle
P22-Style
Spindle
218UX011
Spindle Plug
with Small Hole and "Flat"
at 12 O'Clock Position
