This guide is periodically updated throughout the year. The most current information can be found on www.dana.com/cv 24
A
B E
C
F
G

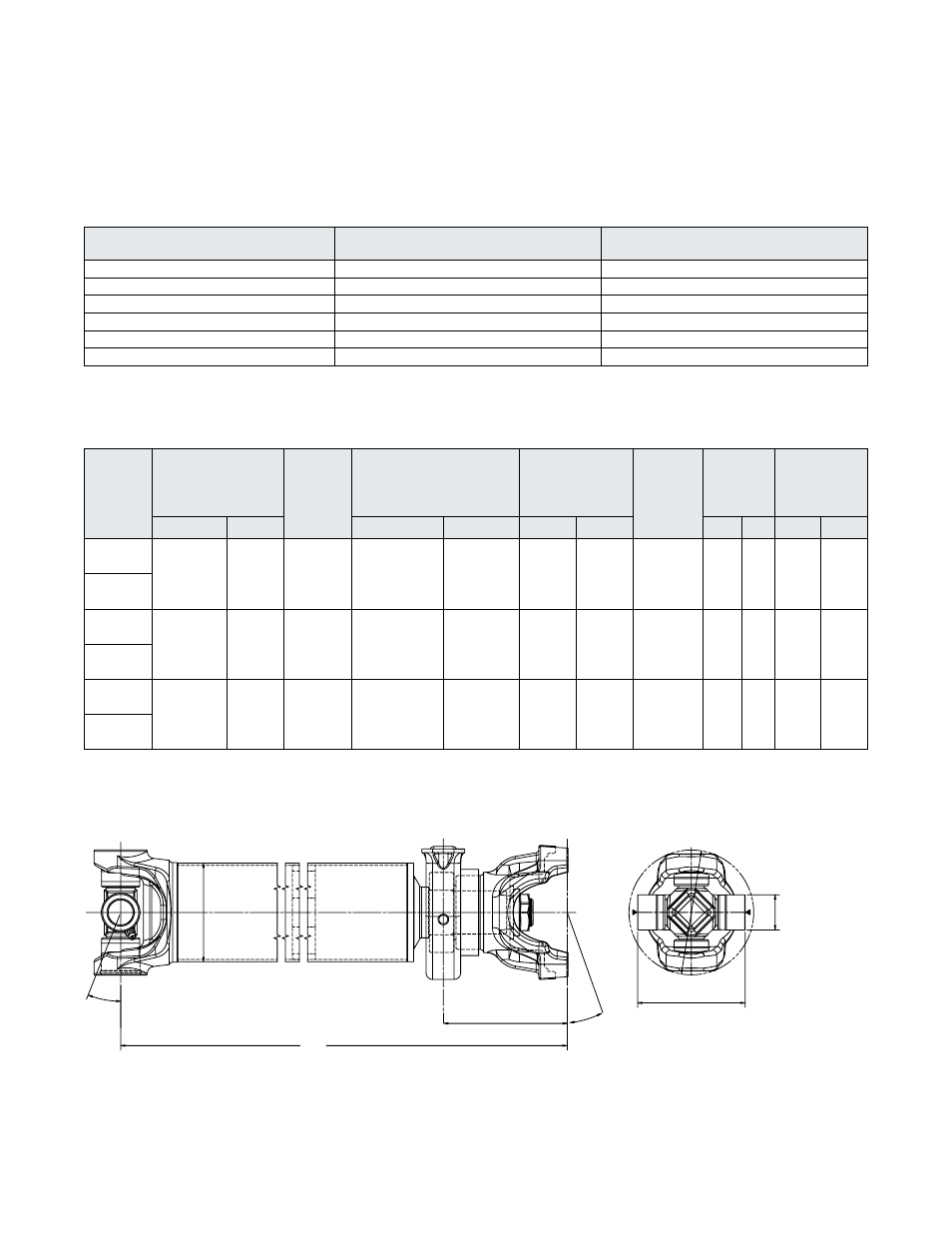

Fixed Yoke Coupling Shaft
Medium-Duty Service Kits
For additional configurations, contact Spicer Driveshaft Engineering for specific application information.
Driveshaft
Spicer Life
®
Series – Medium-Duty
Driveshaft
Series
U-Joint Kit Kit Type
SPL-55 SPL-55-1X Re-Lube
SPL-55XS SPL-55X Pre-Lube
SPL-70 SPL-70-1X Re-Lube
SPL-70XS SPL-70X Pre-Lube
SPL-100 SPL-100-1X Re-Lube
SPL-100XS SPL-100X Pre-Lube
Coupling
Shaft
Assembly
Part
Number
Minimum Length
Centerline of Cross
to Centerline of
End Yoke
"A"
Maximum
Angle
"B"
Tube Size
Centerline of
Bearing to
Centerline of
End Yoke
"E"
Maximum
Angle
"C"
U-Joint
Span
"F"
Bearing
Cup Diameter
"G"
MM IN MM IN MM IN MM IN MM IN
SPL-55
055CS54006
233 9.17 21.5° 88.9 x 2.11 3.50 x .083 112 4.39 22.5° 106 4.19 35 1.37
SPL-55XS
055CS54006G
SPL-70
070CS54004
249 9.80 26° 88.9 x 2.41 3.50 x .095 120 4.71 22.5° 126 4.96 35 1.37
SPL-70XS
070CS54004G
SPL-100
100CS54003
289 11.39 25° 101.6 x 2.41 4.00 x .095 115 4.52 13.5° 126 4.96 41 1.63
SPL-100XS
100CS54003G
