Page 21
18
Electric Shift Sytem
Ser
vicing Other
Components

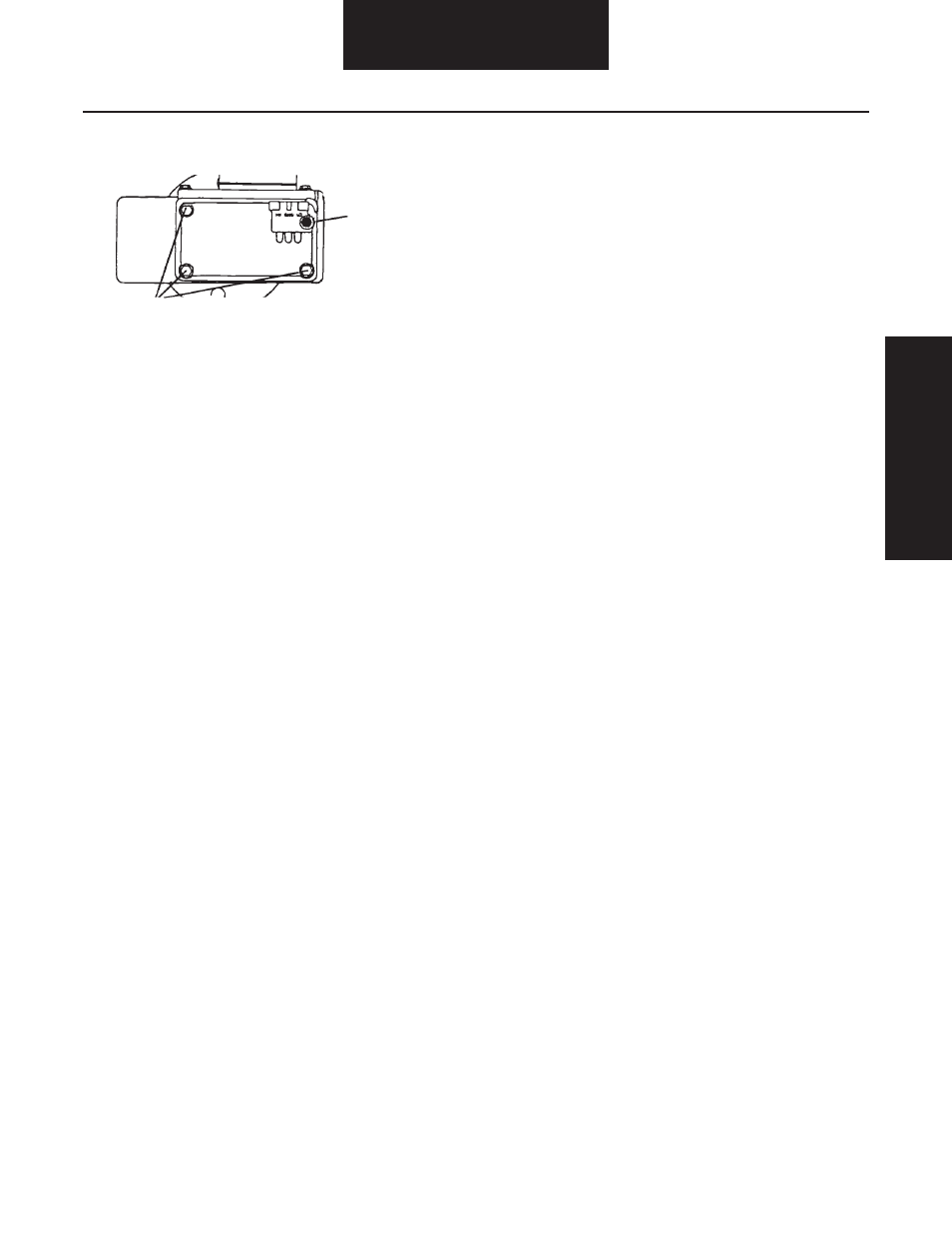

Fig. 2 - Cover Screw Location
6. Install the cover capscrews as shown in Fig. 2.
Note: The 3 screws from prior installation should be used in
all but the hole closest to the electrical connector. The
new (longer) screw supplied with the kit must be
installed in the hole shown.
7. Tighten all capscrews to 25-30 Lb.-In. (2.8-3.4 N.m)
Do not over tighten.
Speedometer Adapter
The speedometer adapter is lubricated and sealed for life of
the unit. No maintenance is required. Replace a faulty unit.
Control Switch
For inspection or replacement, the control switch can easily
be removed by sliding the rubber boot up to the knob, then
separate switch from harness.
Inspect switch for loose connections and other visual defects
that may cause short circuit or electrical failure. Replace a
faulty switch as an assembly.
Install long screw
from kit in this
location
Install 3 previously removed screws
in these locations
