Shift unit removal/disassembly remove shift unit, Remove slider block – Spicer Drive Axles Service Manual Axle Shift Systems, 2-Speed Single Rear Axles User Manual
Page 11
8
Electric Shift System
Removal / Disassembly
Shift Unit Removal/Disassembly
Remove Shift Unit
1.
Shift axle to low range and park vehicle.
2.
Disconnect wiring harness at shift unit.
3.
Remove nuts, flat washers and shift unit from car-
rier.
Note: When shift unit is removed, provide container to catch
oil that escapes from carrier.
4.
Remove shift unit seal and spring assembly.

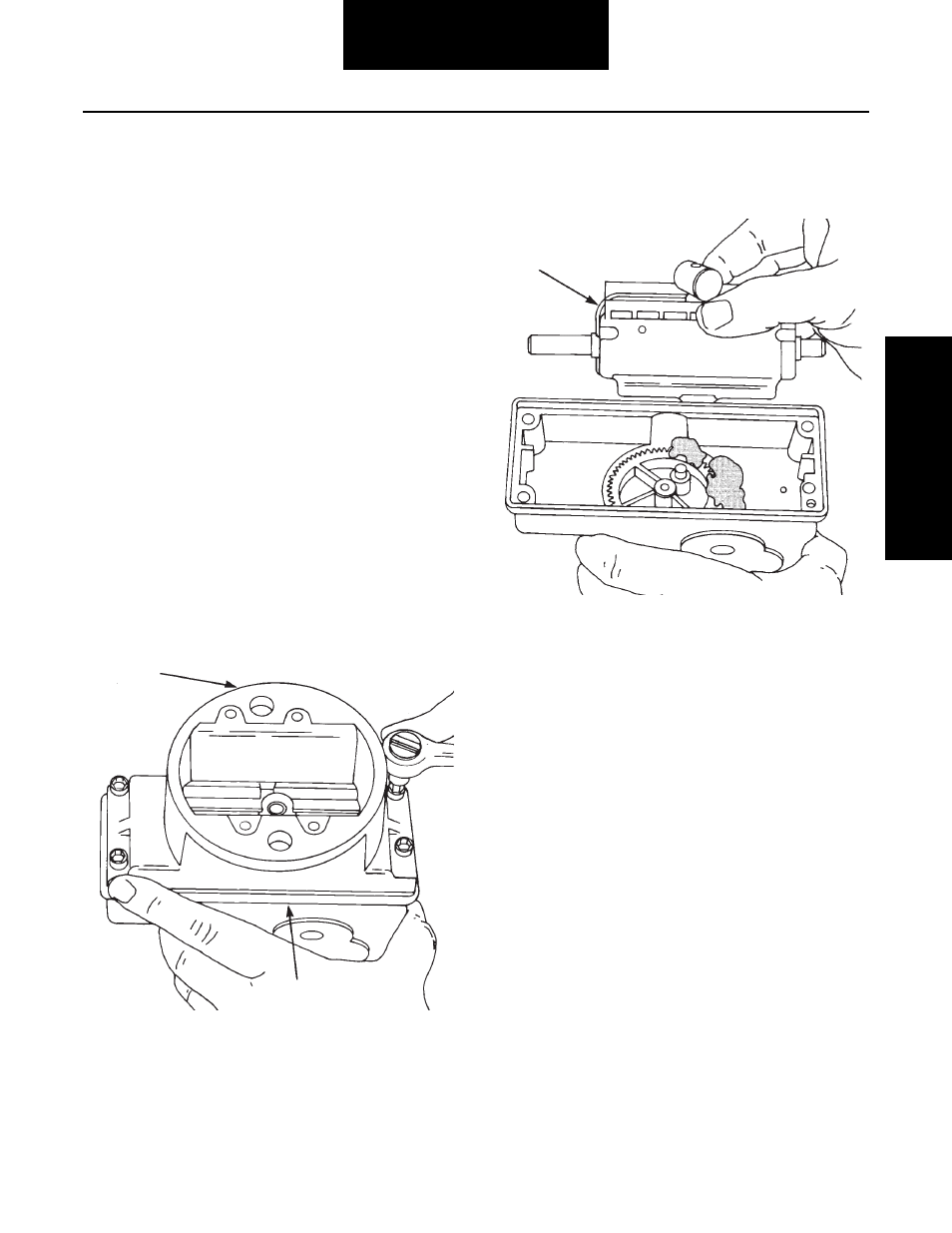

Remove Slider Block
Note: To remove slider block, it is necessary to separate base
housing from motor housing. Gasket compound may
cause these housings to stick together. Use the motor
as a handle to assist in separating the housings. If nec-
essary, carefully pry housings apart using a thin-blade-
screwdriver.
1.
Remove cap screws fastening base housing to
motor housing.
2.
Lift motor housing off base housing.
3.
Lift out slider block and shaft assembly.
Base
Housing
Motor Housing
Slider Block
and
Shaft Assembly
