Page 12
9
Electric Shift System
Remove Circuit Board and Motor
1.
Remove cap screws fastening cover to motor hous-
ing.
Note: Gasket compound may cause cover to stick to housing.
If necessary, carefully pry it loose, using a thin-blade
screwdriver.
2.
Disconnect lead wires at cover terminals. Remove
cover and gasket. Remove circuit board locknut.
3.
Lift circuit board out to gain access to motor lead
wire (black). Disconnect this wire then remove cir-
cuit board.
4.
Remove circuit board mounting washer.
5.
Remove cap screws fastening motor.
6.
Lift motor to separate it from the housing.
Note: Gasket compound may cause motor to stick to housing.
If necessary, separate motor from housing by carefully
prying, using a thin-blade screwdriver.
7.
Remove motor, carefully guiding the motor wire and
terminal through the housing hole.

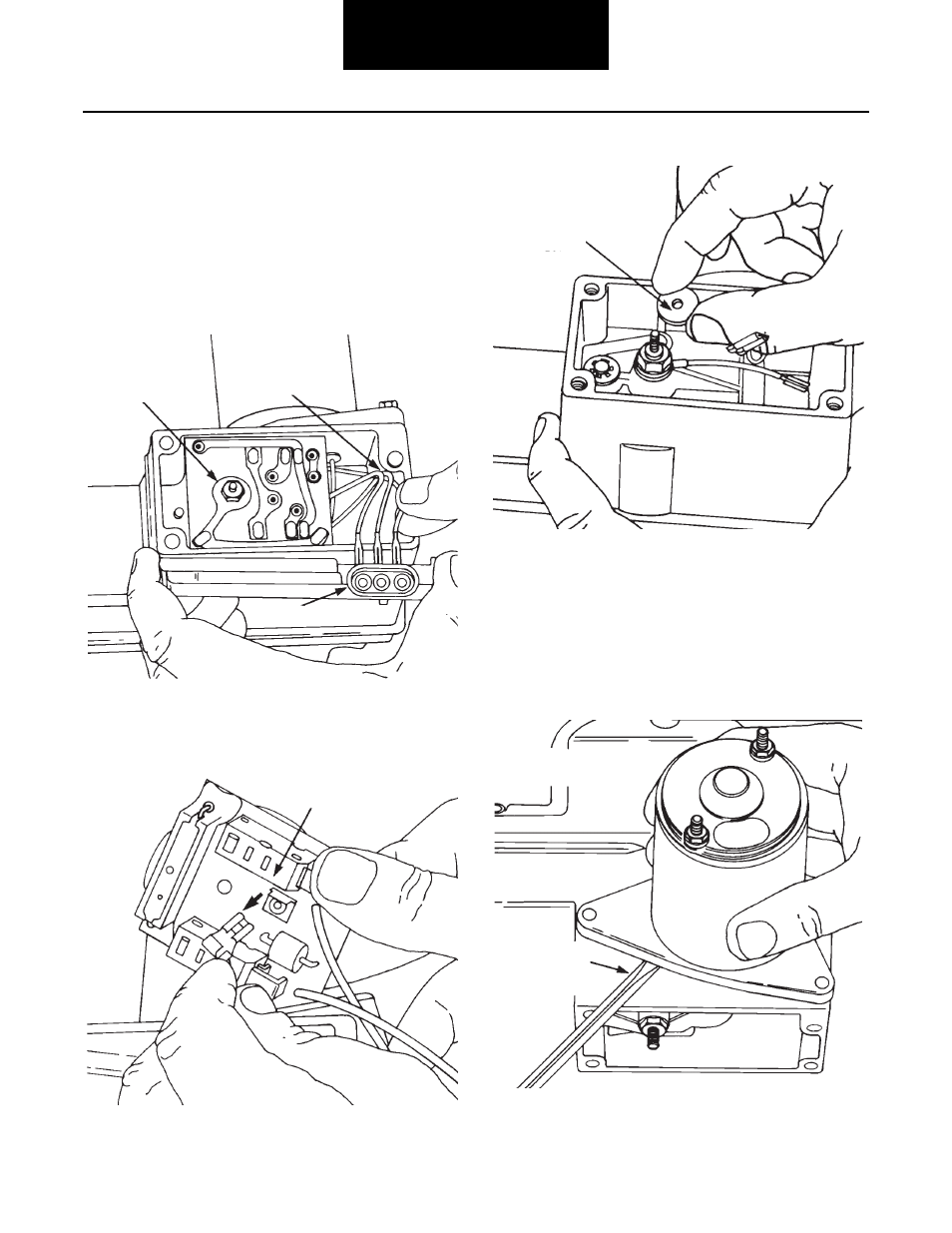

HOUSING COVER REMOVAL
Circuit Board
Locknut
Lead Wires
Cover Terminals
Disconnect Motor
Lead Wire
Remove
Circuit Board
Washer
MOTOR REMOVAL
Pry motor loose
with screwdriver
