Page 17
14
Electric Shift System
Assembly
/ Ins
tallation
Install Circuit Board
1. Install circuit board washer on gear shaft and on top
of gear locknut.
2. Connect motor lead wire to circuit board terminal.
3. Install circuit board on gear shaft and install locknut.
Torque locknut.
IMPORTANT: If a new housing cover is required, install the
improved cover (see page 17 for instructions). Original
cover is not available.
4. To continue assembly of the shift unit when reusing
the original cover, proceed as follows:
5. Apply RTV Electrical Grade Gasket Compound in
(PN 113771) cover gasket groove. Install gasket.
Apply gasket compound to gasket mating surface,
circling screw holes.
6. Connect circuit board lead wires to cover terminals
(see next illustration). Carefully push wires back in
housing.
Note: Exert care when repositioning lead wires to prevent
smearing or destroying gasket compound.

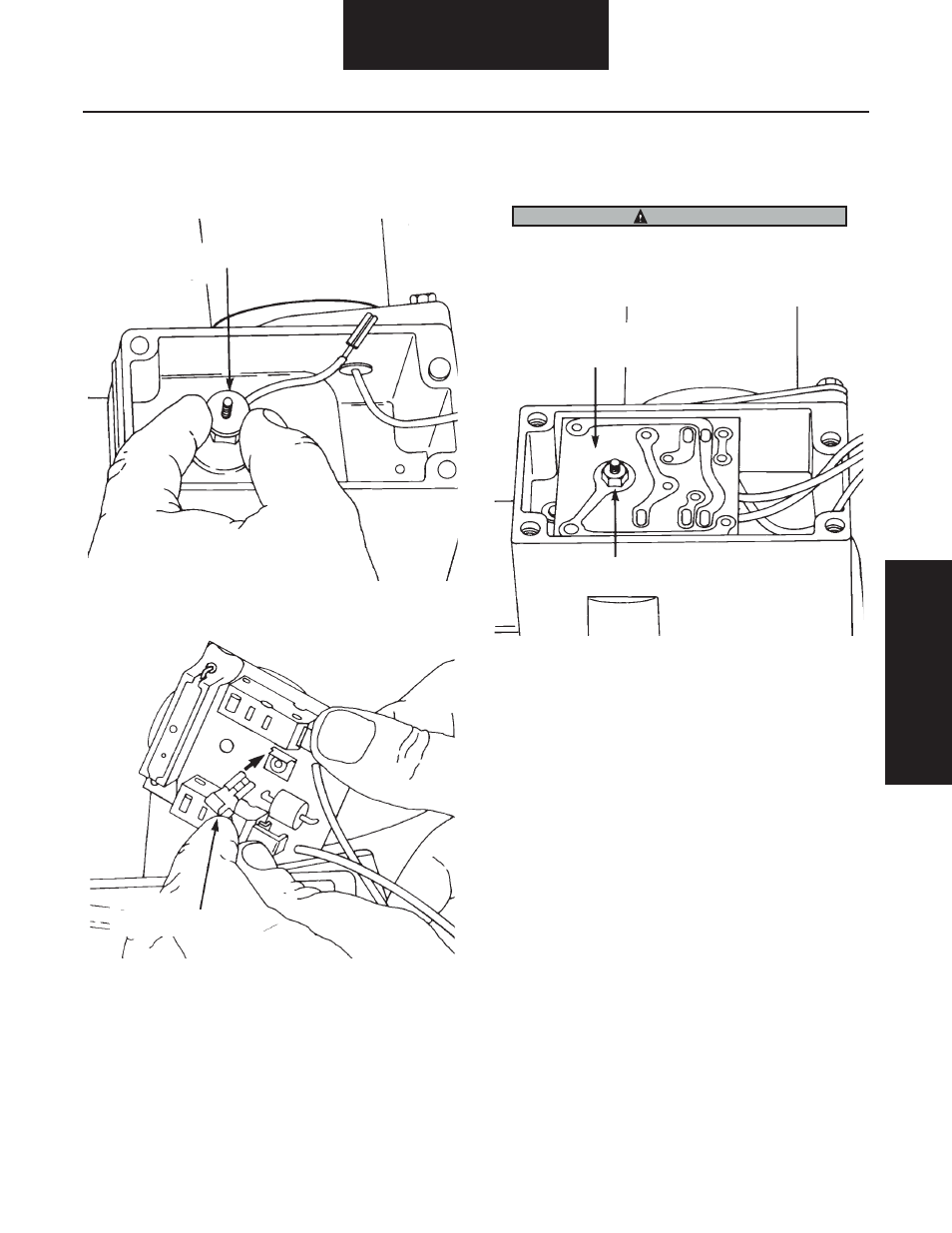

Install circuit
board washer
Connect
motor lead
IMPORTANT
Install circuit
board assembly
Install board locknut
