Spicer Drive Axles Service Manual Axle Shift Systems, 2-Speed Single Rear Axles User Manual
Page 14
11
Electric Shift System
Shift Unit Assembly/Installation
Install Cam Pins and Gear
Note: Use “Rheolube 362” lubricant during following reas-
sembly procedures. Use of other lube types may cause
operational problems under certain low temperature
conditions.
1.
Lubricate pins. Install pins in motor housing.
2.
Lubricate both sides of gear washer and gear face
that contacts gear washer.
3.
Liberally apply lubricant on gear teeth. Completely fill
cavities between teeth.
4.
Lubricate the shoulder part of the gear shaft. Assem-
ble shaft, gear and washer, then place this assembly
in motor housing.

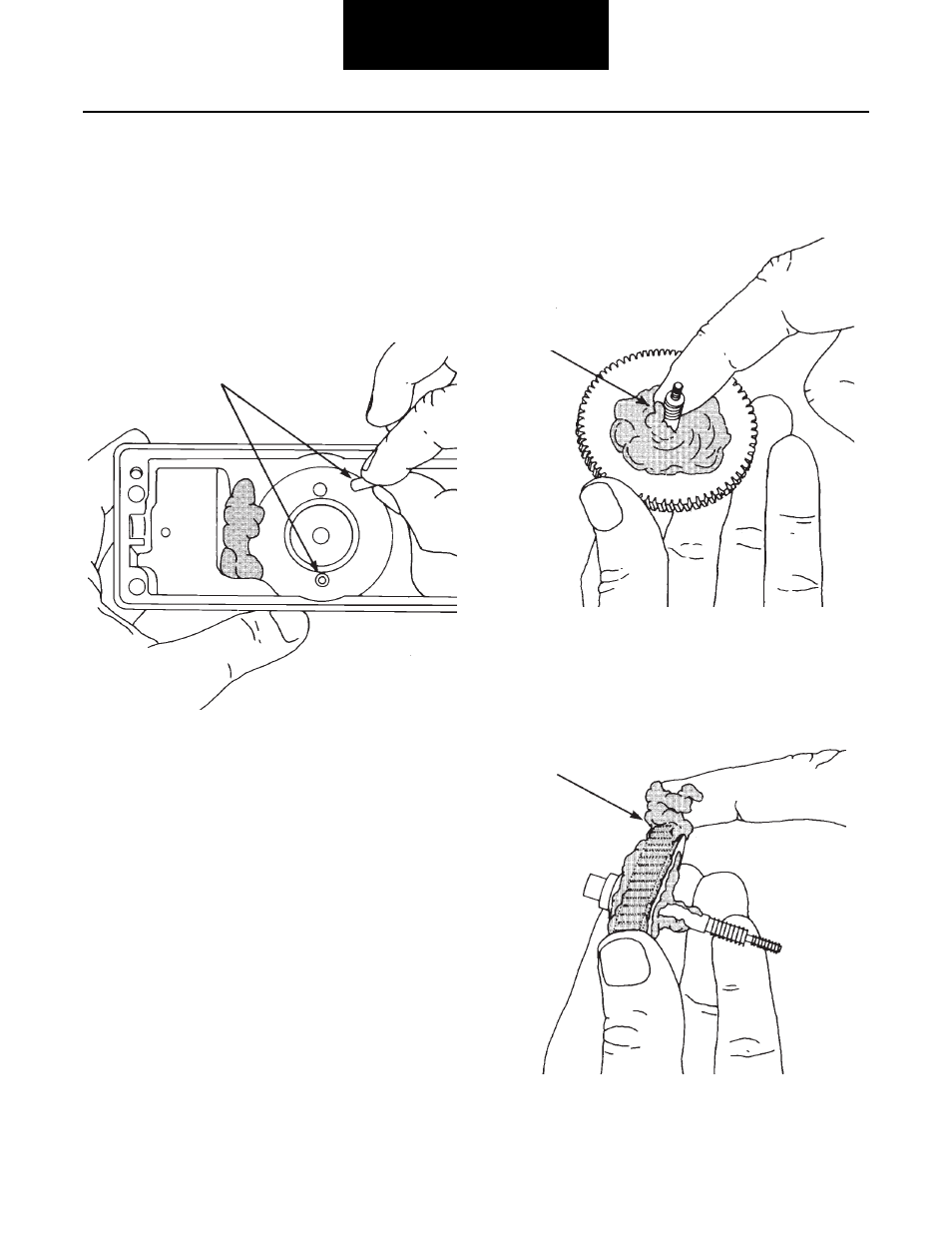

Lubricate and install
cam pins
Lubricate
gear face
Lubricate
gear teeth
