Install motor – Spicer Drive Axles Service Manual Axle Shift Systems, 2-Speed Single Rear Axles User Manual
Page 16
13
Electric Shift System
3.
With housing mating surfaces clean, apply a contin-
uous bead of approved gasket compound around the
outer edge of the base housing. Align the dowel pin
with hole in motor housing and assemble the two
housings.
4.
Install housing cap screws loosely. Make sure that
housings are mating properly by wiggling the slider
block from side to side.
5.
Torque housing cap screws.
Note: There should be some slider block free play. If block is
rigid, loosen cap screws, reposition block and tighten
cap screws finger-tight. Recheck slider block free play.
Install Motor
1.
Apply a continuous bead of approved gasket com-
pound on motor base around motor shaft and lead
wire.
2.
Place motor on housing, guiding the lead terminal
and wire through the proper opening and placing
shaft through motor housing hole.
3.
Install cap screws and tighten to correct torque.

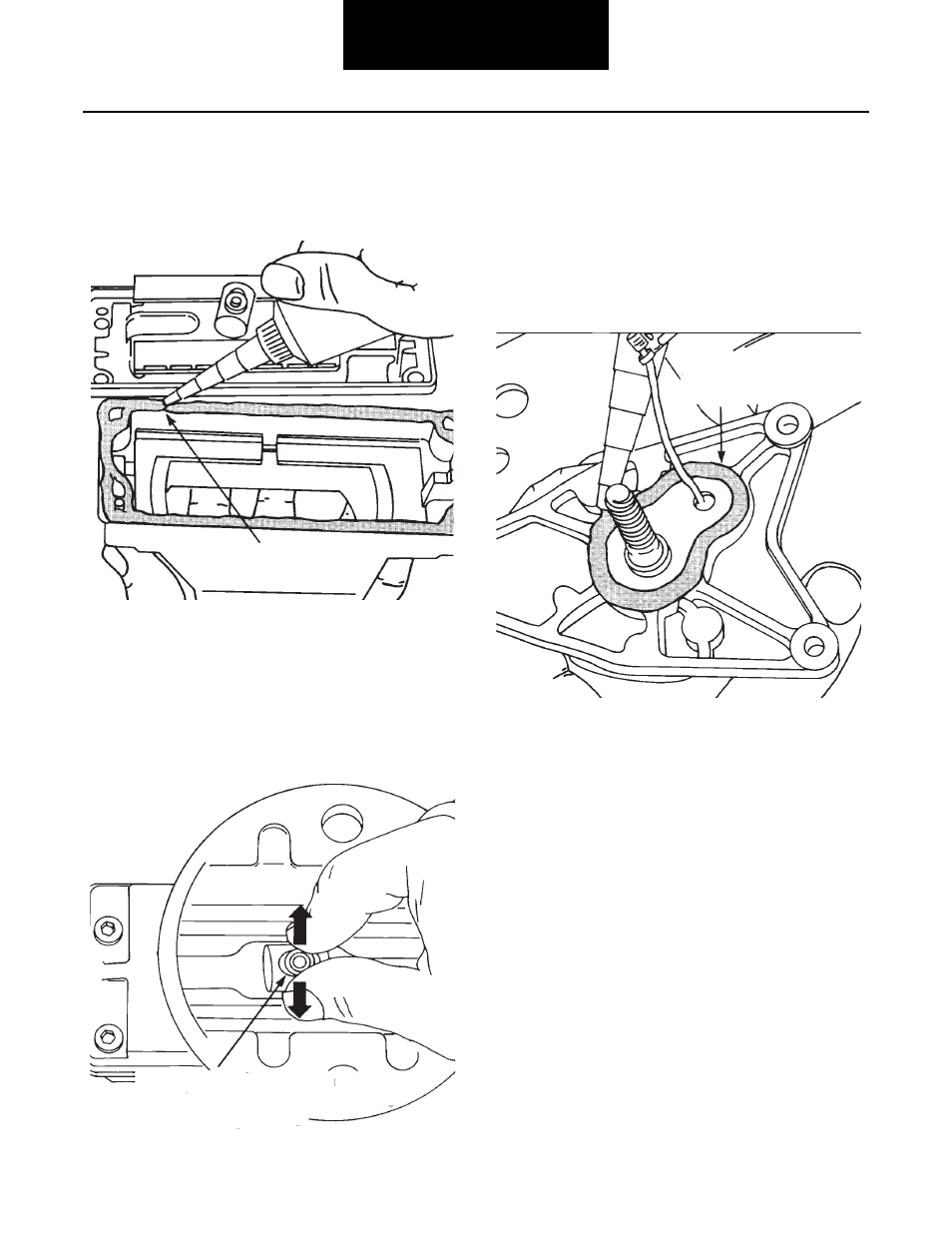

Apply gasket compound
Move slider block from side
to side to make sure housings
are properly mated
Apply gasket
compound
