Power Divider

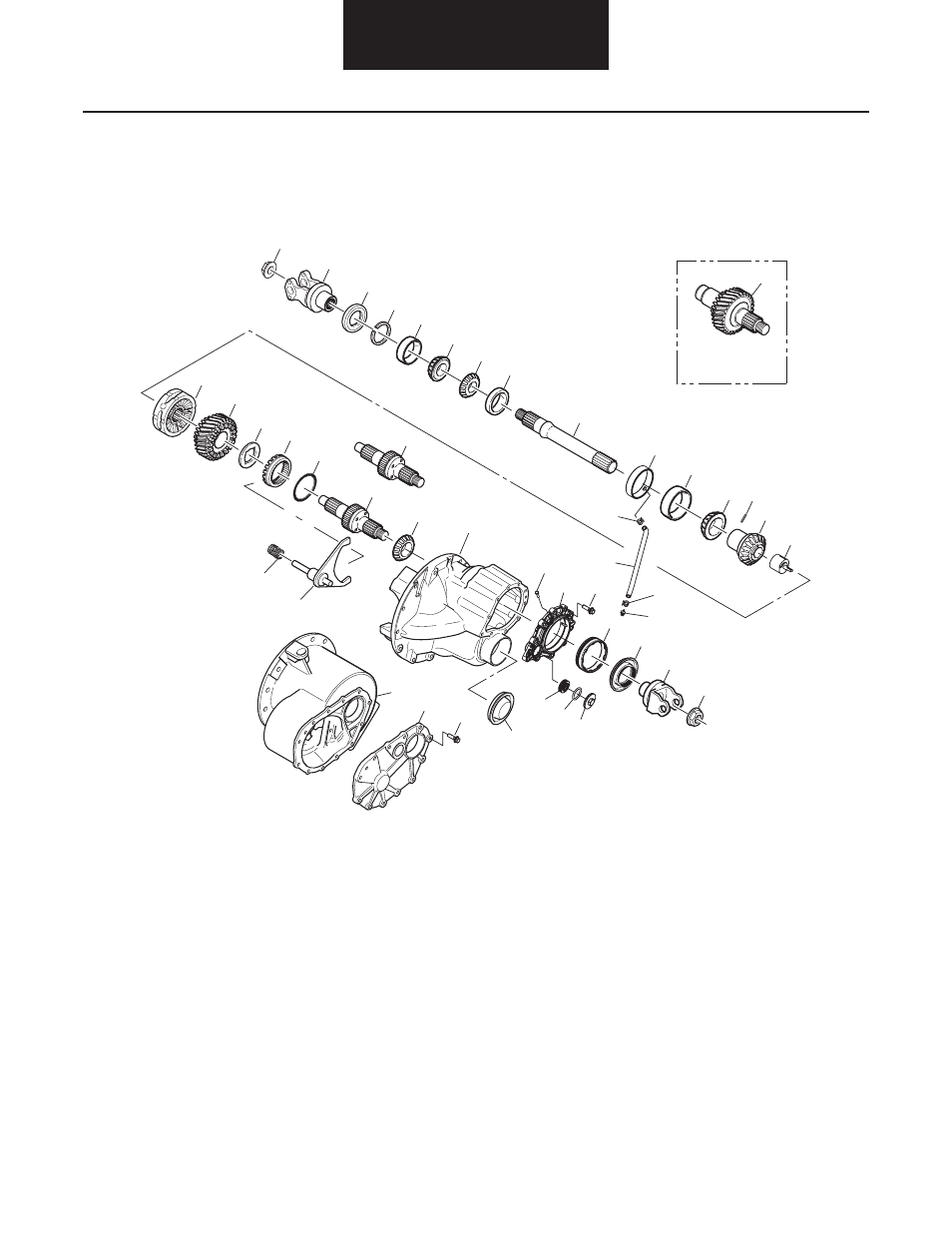

Power Divider - Parts Exploded View
1 - Output shaft nut
2 - Output yoke
3 - Output seal
4 - Output shaft bearing snap ring
5 - Outer bearing cup
6 - Outer bearing cone
7 - Inner bearing cone
8 - Inner bearing cup
9 - Output shaft
10 - Seal manifold
11 - Clamp
12 - Seal manifold feed tube
13 - Sump screen
14 - Output side gear bearing cup
15 - Output side gear bearing cone 16 - Pin
17 - Output side gear
18 - Pump
19 - Inter-axle differential
20 - Helical side gear
21 - Thrust washer
22 - Lockout sliding clutch
23 - Shift fork spring
24 - Shift fork assembly
25 - V-ring
26 - Input shaft
27 - Input shaft
28 - Input shaft bearing cone
29 - Carrier housing
30 - Locking capscrew 31 - Input cover
32 - Input cover capscrew
33 - Bearing cup and cage
34 - Input seal
35 - Input yoke
36 - Input nut
37 - Piston
38 - O-ring
39 - Piston cover
40 - Pinion cover
41 - Input cover capscrew
42 - Input cover
43 - Carrier housing
