4
Inspection
Inspection
Procedures and Intervals
The following inspection procedures are consistent with
industry practice and are recommended as Inspection guide-
lines for periodic service. Use manufacturer’s instructions as
a primary guide.

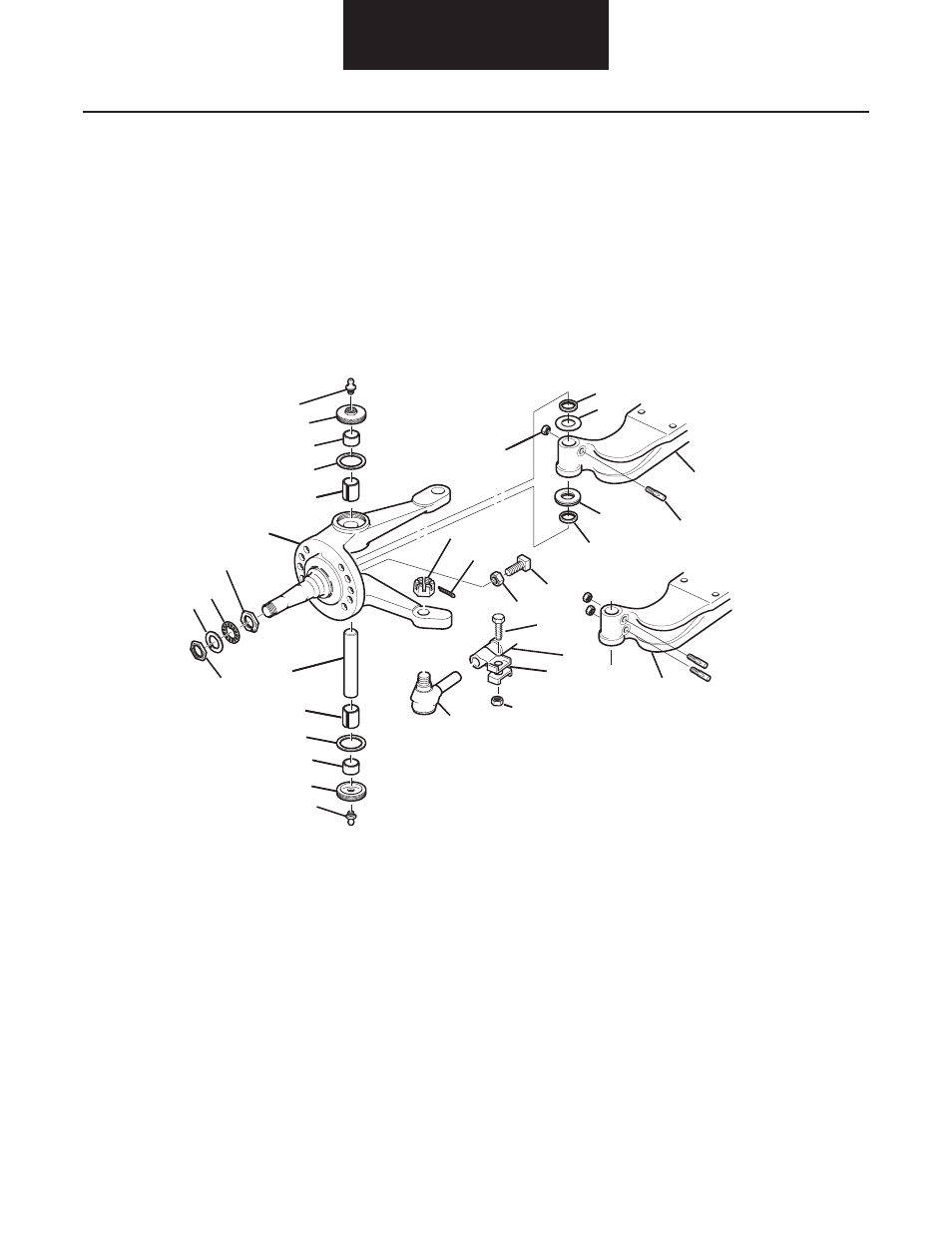

E Family Exploded View
Intervals of inspection or service are recommended for gen-
eral or average vehicle use. It may be appropriate to increase
frequency of intervals depending on the type of vehicle ser-
vice.
1 - Nut, Draw Key
2 - Seal, Grease
3 - Shim
4 - Axle Beam
5 - Key, Draw
6 - Bearing, Thrust
7 - Screw, Stop
8 - Nut, Jam
9 - Nut, Slotted 10 - Pin, Cotter
11 - Bolt, Clamp
12 - Tube, Cross
13 - Clamp
14 - Nut
15 - Tie Rod End
16 - Lube Fitting
17 - Cap, Knuckle
18 - Foam Insert 19 - Gasket
20 - Bushing
21 - Kingpin
22 - Nut, outer Spindle*
23 - Washer, Retainer*
24 - Washer, Spindle*
25 - Nut, Inner Spindle*
26 - Steering Knuckle
27 - Dual Draw Key Beam
* Nut, Pro-Torq (optional alternative for items 22-25)
6
2
3
4
26
19
16
21
1
7
8
16
19
17
20
17
20
2
25
24
22
15
14
13
12
9
10
11
5
23
18
18
27
