21
Disassembly, Overhaul, and
Assembly
Disassembl
y, Overhaul,
and Assembl
y

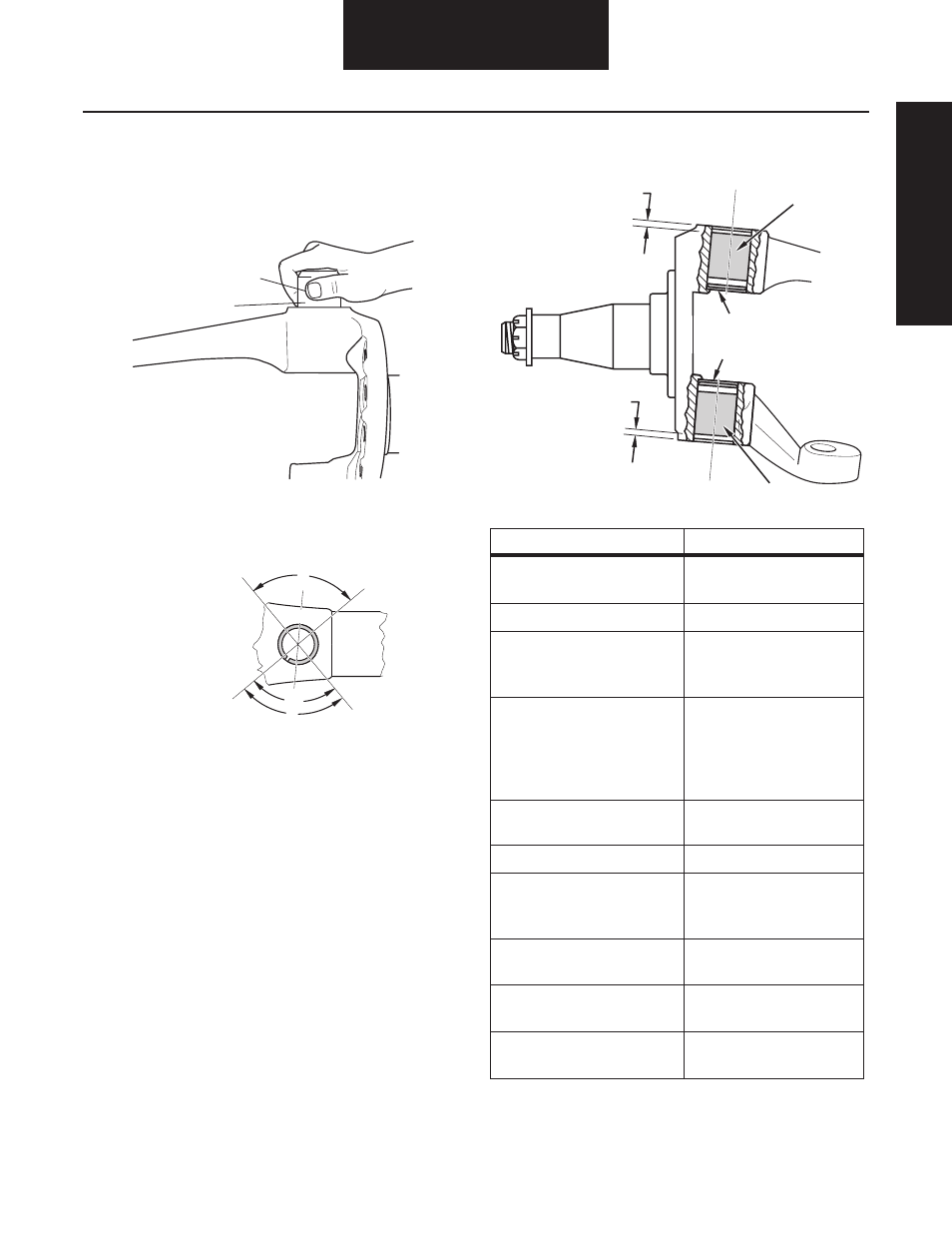

Bushing Installation
5. Lightly lubricate outside diameter of bushings to
ease installation.
6. Hand start bushing in bore.
Note: When installing kingpin bushings, position seam in
areas marked “X”.
7. Drive bushings in until they are located as shown.
• Use same method to install both upper and lower
bushings.
Bushing Depth Chart
1
2
90˚
X
Bushing Seam
Locate in Either
Area Marked "X"
X
Bushing Depth
D-600N, D-700F, D-700N,
D-800F, D-800W .17" (4.3 mm) Top
.56" (14.2 mm) Bottom
.55" (14.0 mm) D-2000F, D2200F
E-1000I, E-1002I, E-1200I,
E-1202I, E-1320I, E-1322I,
E-1201I, E-1203I
.55" (14.0 mm)
E-1000W, E-1200W,
E-1320W, E-1460I, E-1002W,
E-1202W, E-1322W,
E-1462I, E-1460W,
E-1462W .55" (14.0 mm)
.25" (6.4 mm) EFA Family
I-100W, I-120W, I-140W,
I-160W, I-180W, I-200W,
I-220W, I-130W
.20" (5.1 mm) Top
E1002C, E1202C, E1322C,
E1462C, E1202WC, E1322WC .69" (17.5 mm) Top
.55" (14 mm) Bottom
I-130SG, I-132SG, I-140SG,
I-160SG, I-180SG, I-1200SG .20" (5.1 mm) Top
.20" (5.1 mm) Bottom
I-60SG, I-80SG
.34" (8.6 mm) Bottom
.17" (4.3 mm) Top
I-100SG, I-100SGL, I-120SG,
I-120SGL .40” (10.2 mm) Top
1.12” (28.4 mm) Bottom
Recess
Grease Seals
.060" (1.52 mm) From
Knuckle Surface
See Bushing Depth Chart
(Bottom)
See Bushing Depth Chart
(Top)
Bushing
Bushing
