General Specifications
General Specifications
Wheel Bearing Adjustment
End-play .001"- .005" (.025 - .125 mm)
(See Wheel Bearing Adjustment for adjustment procedure.)
Wheel Alignment
(See vehicle manufacturer for specifications.)
Kingpin Clearance – New
Vertical – .002" - .012" (.051-.305 mm)
(See Steering Knuckle Assembly.)
Bushing End-play – New
.008" max (.20 mm)
Kingpin Clearance – In Service
Vertical – .040" max. (1.016 mm)
(See Component Inspection.)
Bushing End-play – .015" max. (.381 mm)
(See Bushing Inspection.)
Note: Correct tightening torque values are extremely
important to assure long axle life and dependable
performance. Under-tightening of attaching parts
is just as harmful as over-tightening.
Note: Exact compliance with recommended torque values
will assure the best results.
Note: Some applications use 5/8-18-UNF for this fastener.
The same torque values apply.

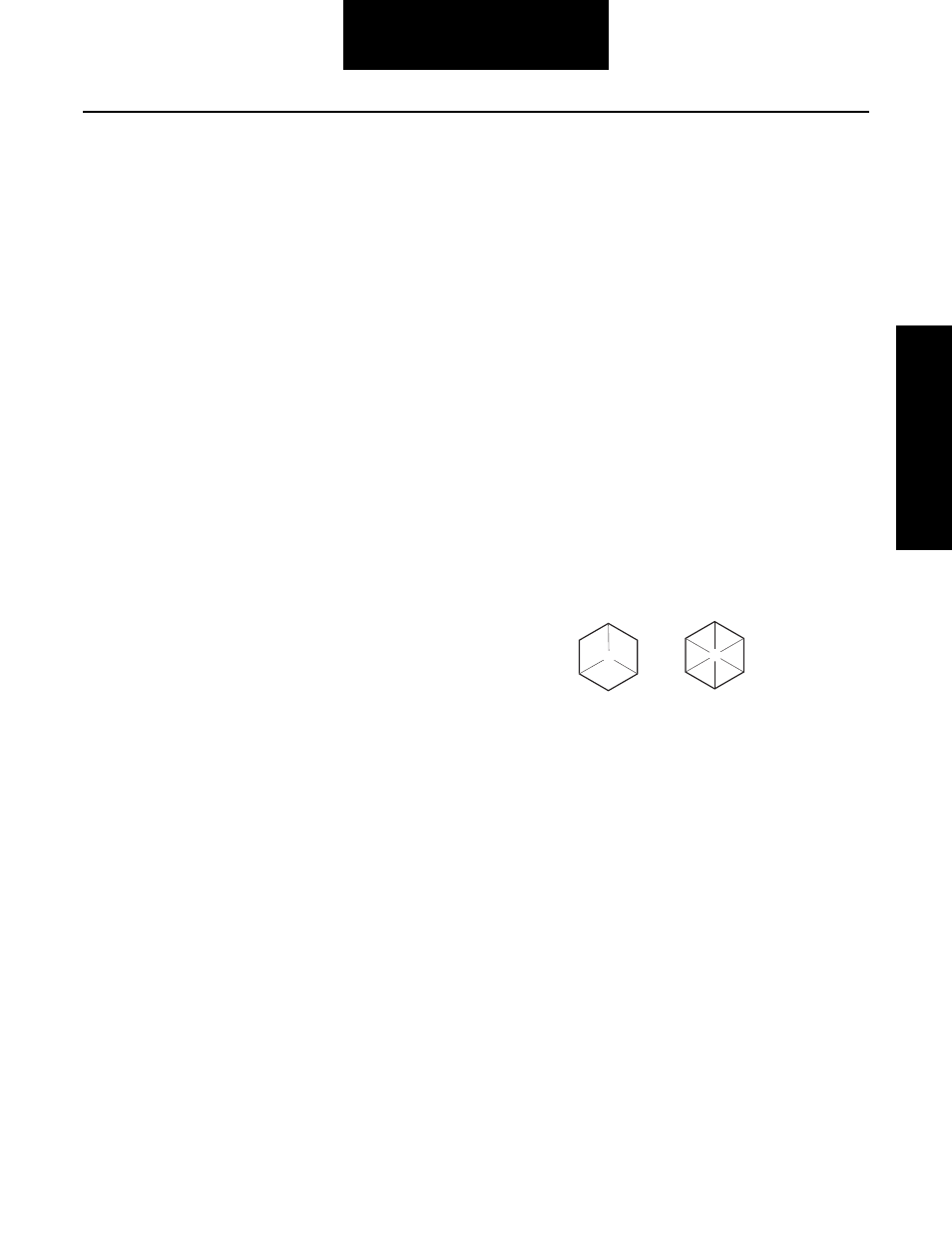

Bolt head markings for
grade indentification
Grade 5 Grade 8
General Specifications
