8 Display Setup

Click on the

 button to go to the Input Setup interface.

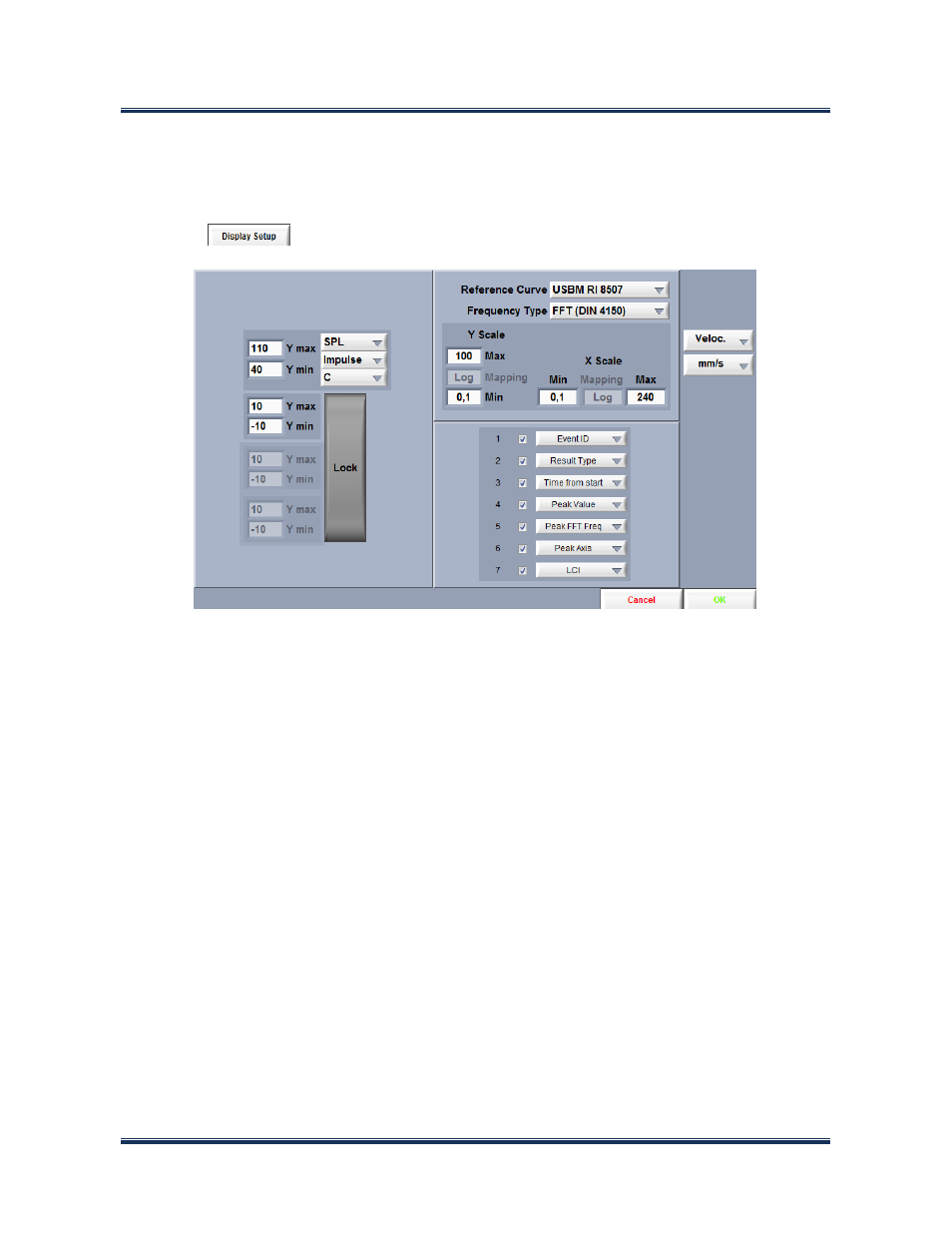

This interface allows the user to:

Modify the result type to display (from Acceleration, Velocity or Displacement),

Modify the units to display (from a variety of choice according to the result type),

Modify the acoustic time history data to display (RTA or SPL),

Modify the acoustic time history Y axis range,

Modify the vibration time history Y axis range,

Modify the event peak spectrum axis range and mapping mode,

Modify the event peak spectrum frequency type from FFT or Zero Crossing,

Select a Reference curve (DIN 4150 or USBM RI 8507),

Select the columns to display on the Event Table.
