6.

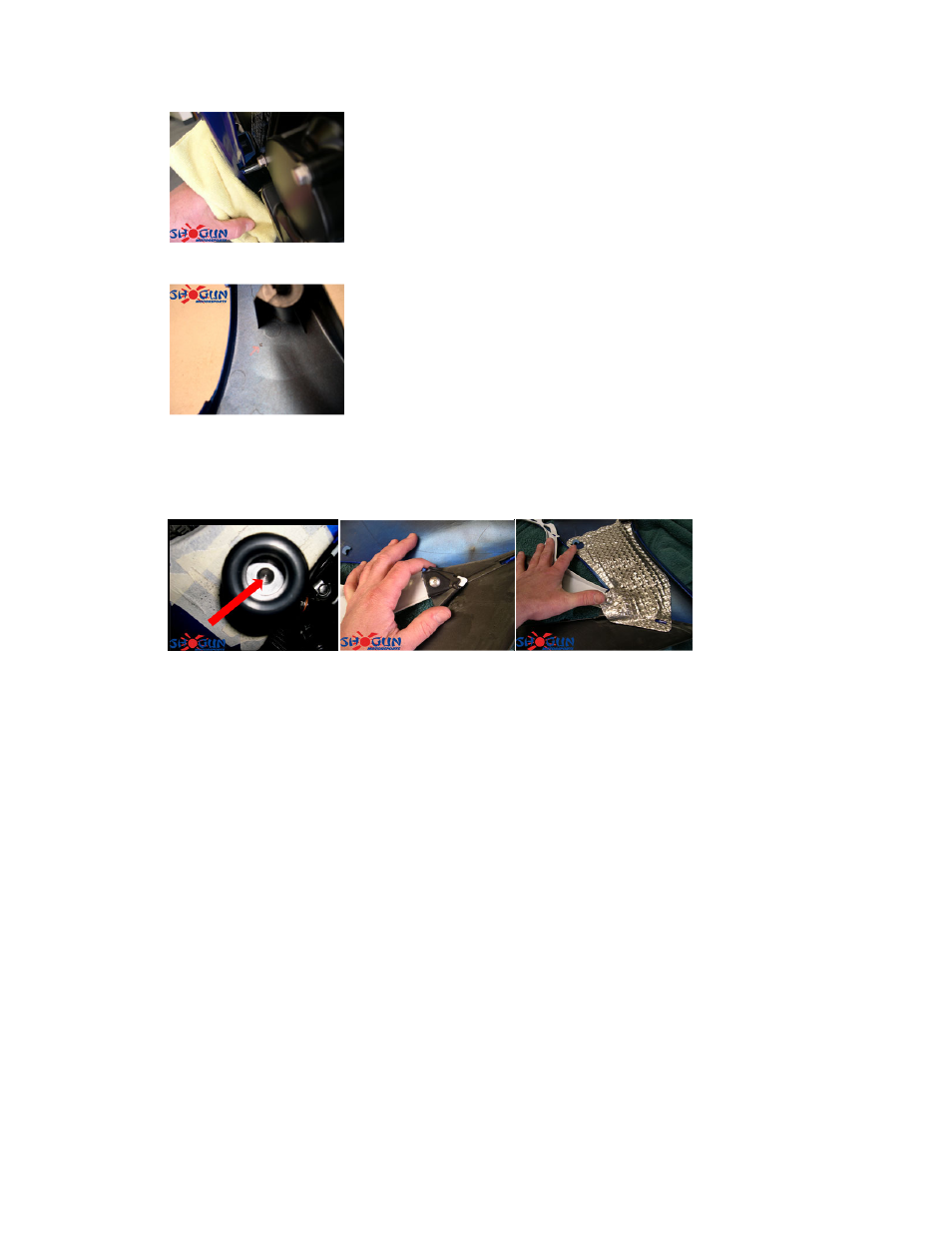

Remove the bodywork and double check location of spot mark the tool has created.
7.
Using a small drill ¼ inch or so drill a pilot hole in the body from the inside out. Remount
bodywork and double check the hole location with the spot tool still inserted (arrow in picture
below is pointing to spot tool). With pilot hole cut and on center, remove body and disassemble
panel to prep for cutting.
8.
Measure the back of the puck (about 1 inch) for this application we used a drummel tool with a
sanding roll to open up the hole little by little. After you cut the main panel you will then have to
lie over the other panel and cut a half moon to clear puck.
MAKE SURE YOU WEAR PROTECTIVE
GOGGLES AND GLOVES As you cut and open the hole to your scribe marks keep checking that
the hole is lining up with your puck dimensions or the spot tool. If for some reason you cut too
big and you want to close the gap around the puck we use windscreen trim or window seal with
3m adhesive. Trim the seal to fit the hole and get the seam to meet under the puck so it is less
visible.
